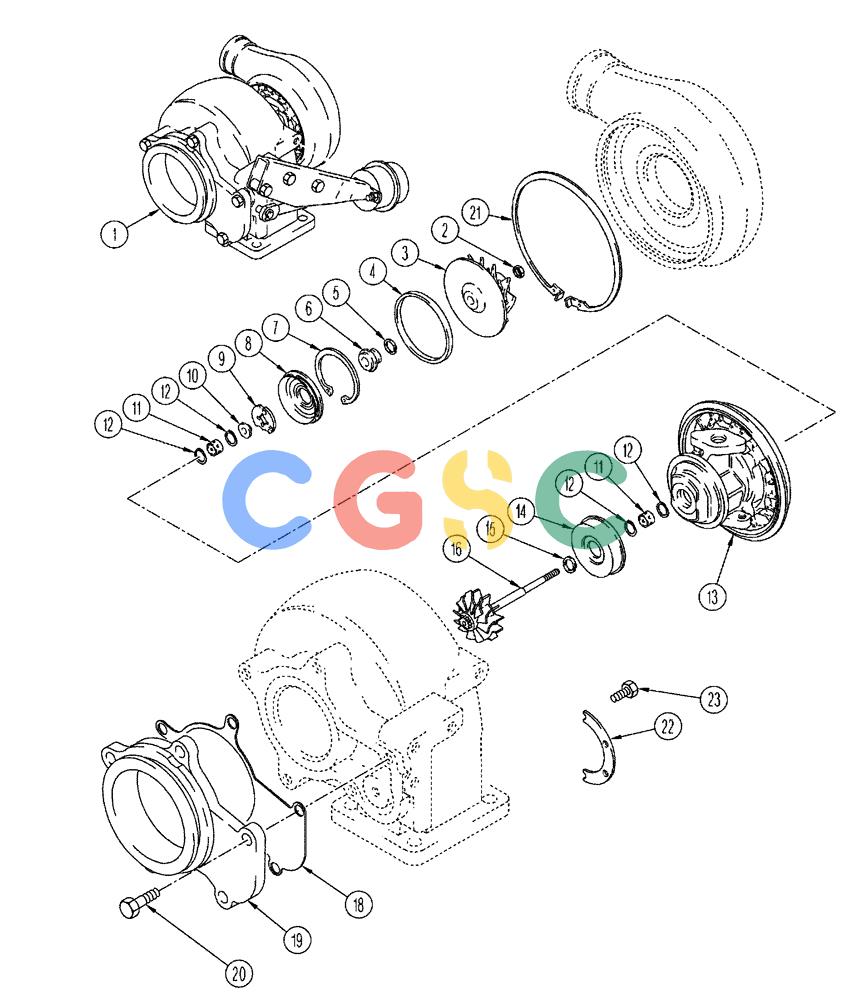

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (02-030) - TURBOCHARGER - ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
379 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
J800406
|
[1] |
TURBOCHARGER
|
CAS
Kit, (Includes J591022 Turbocharger Assembly, Not Serviced Separately. For Other Parts, See Fig 02-029, And Fig 02-031 Superseded by part number: 84410510
|
| 1. |
84410510R
|
[1] |
REMAN-TURBOCHARGER
|
MOD
FLX3300B (9/02-10/03), Reman for New PN J800406
|
| 1. |
84410510C
|
[1] |
CORE-TURBOCHARGER
|
MOD
Return Number
|
| 2. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Nut, Hex, Lock
|
| 18. |
J537960
|
[1] |
GASKET,0.46mm Thk
|
CAS
Adapter
|
| 19. |
J537979
|
[1] |
ADAPTER
|
CAS
Exhaust Outlet
|
| 20. |
120104
|
[5] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 21. |
J533163
|
[1] |
SNAP RING
|
CAS
Retaining
|
| 22. |
J534309
|
[2] |
PLATE
|
CAS
Clamping
|
| 23. |
J759917
|
[6] |
SET SCREW
|
CAS
Hex Head
|
| 23A. |
J575169
|
[1] |
REPAIR KIT
|
CAS
Overhaul, Turbocharger (Consists Of Ref. 2, 4, 5, 11, 12, 15, and 21)
|
| 23B. |
J591196
|
[1] |
CARTRIDGE
|
CAS
Center Assembly - Turbocharger (Consists Of Ref. 2-17)
|
