| 1. |
REF
|
[1] |
INSTRUCTION
|
NH

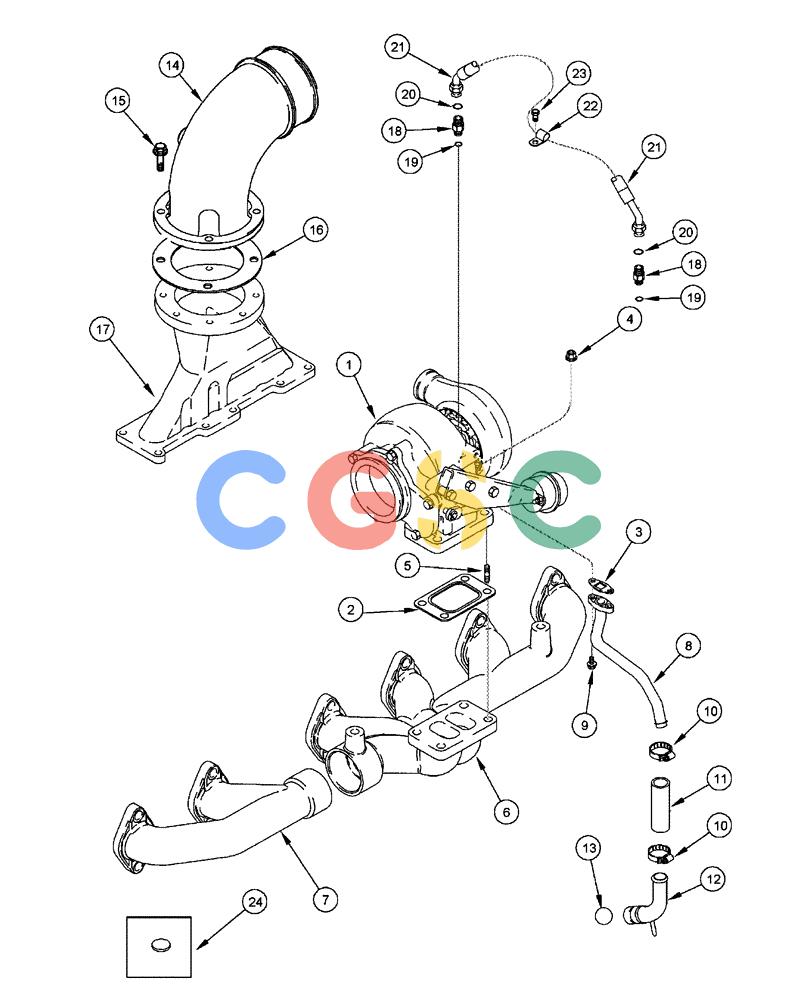

Kit - Turbocharger (Includes Ref. 2 And 3. For Other Parts See Fig 02-030 And Fig 02-031)
|
| 2. |
J919369
|
[1] |
GASKET,0.5mm Thk
|
CAS
Turbocharger To Manifold
|
| 3. |
J937706
|
[1] |
GASKET,0.79mm Thk
|
CAS
Turbo Oil Drain Tube
|
| 4. |
J818824
|
[4] |
FLANGE NUT
|
CAS
Hex Flange, Special, 10 MM - 1.5 Superseded by part number: 4899086
|
| 5. |
J818823
|
[4] |
STUD
|
CAS
Turbocharger Mounting
|
| 6. |
J943841
|
[1] |
EXHAUST MANIFOLD
|
CAS
See Fig 02-028
|
| 7. |
J937477
|
[1] |
MANIFOLD
|
CAS
Exhaust, See Fig 02-028
|
| 8. |
J945108
|
[1] |
TUBE
|
CAS
Connector - Turbo Oil Drain
|
| 9. |
845-8020
|
[2] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
|
| 10. |
87016721
|
[2] |
HOSE CLAMP,17.5mm - 31.7mm
|
RAC
|
| 11. |
J286499
|
[1] |
HOSE
|
CAS
76 MM (3 Inch) Long
|
| 12. |
J948079
|
[1] |
TUBE,0.875" OD
|
CAS
Turbo Oil Drain
|
| 13. |
238-7018
|
[1] |
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
|
CAS
Superseded by part number: 86625099
|
| 14. |
J928519
|
[1] |
AIR INTAKE TUBE
|
CAS
Elbow - Manifold
|
| 15. |
9804260
|
[4] |
BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8
|
NH
|
| 16. |
J917892
|
[1] |
GASKET,0.79mm Thk
|
CAS
Mounting
|
| 17. |
J943613
|
[1] |
AIR INTAKE
|
CAS
Air Intake See Fig 02-029
|
| 18. |
J922789
|
[2] |
HYD CONNECTOR
|
CAS
Male, 12 MM X 11/16 Inch
|
| 19. |
313262A1
|
[1] |
O-RING,0.07" Thk x 0.364" ID
|
CAS
|
| 20. |
J678603
|
[1] |
O-RING,2.2mm Thk x 9.3mm ID
|
CAS
|
| 21. |
J282159
|
[1] |
FLEXIBLE HOSE
|
CAS
|
| 22. |
86010402
|
[1] |
CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 23. |
615-8012
|
[1] |
BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 87015759
|
| 24. |
J920706
|
[1] |
PLUG
|
CAS
Expansion, 22 MM OD - R. Side Block
|
