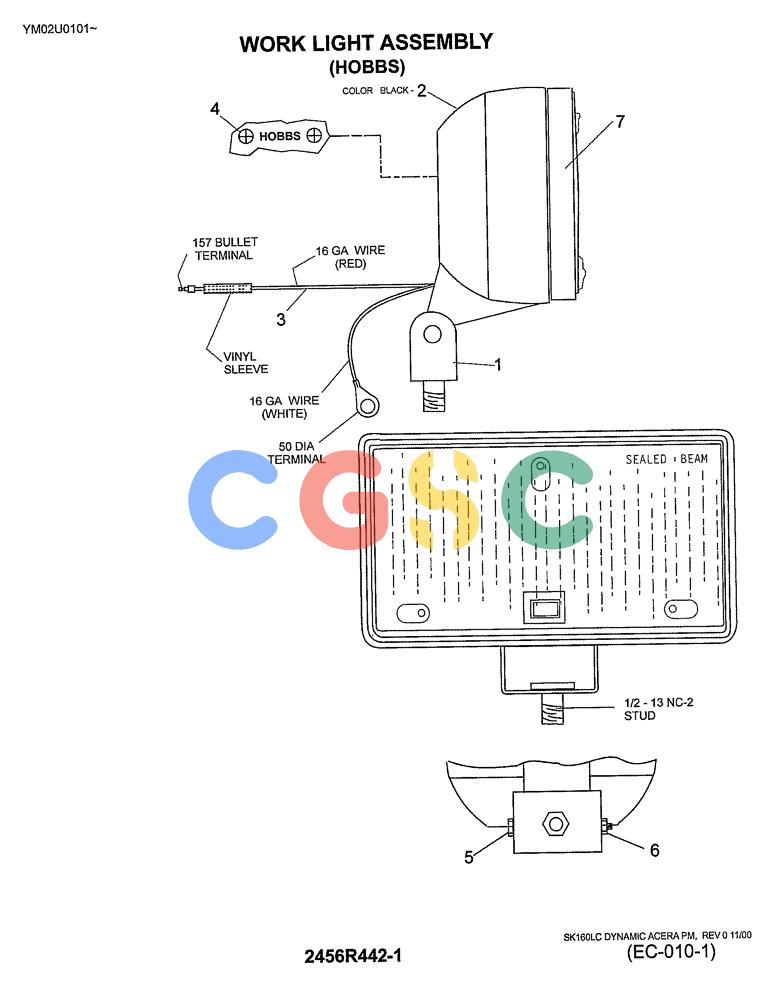

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (07-001) - WORK LIGHT ASSY (HOBBS) P/N 2456R442F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
823 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2456R442F1 | [1] | LIGHT | KOBWORK LIGHT ASSY (HOBBS) |
| 1. | 71466 | [1] | SNAP RING,#206, 2.190", Int, Spiral | CASBRACKET/BOLT ASSY Superseded by part number: 102-23206 |
| 2. | 70781 | [1] | PAINT | NHHOUSING. LAMP |
| 3. | X-78710 | [1] | FINAL WIRE ASSY | |
| 4. | 706S5 | [2] | SCREW | |
| 5. | 70830 | [1] | BOLT | |
| 6. | 70829 | [1] | NUT, 5/16" HEX | SPACER |
| 7. | 78856 | [1] | BULB | HITREFLECTOR & LENS ASSY |
