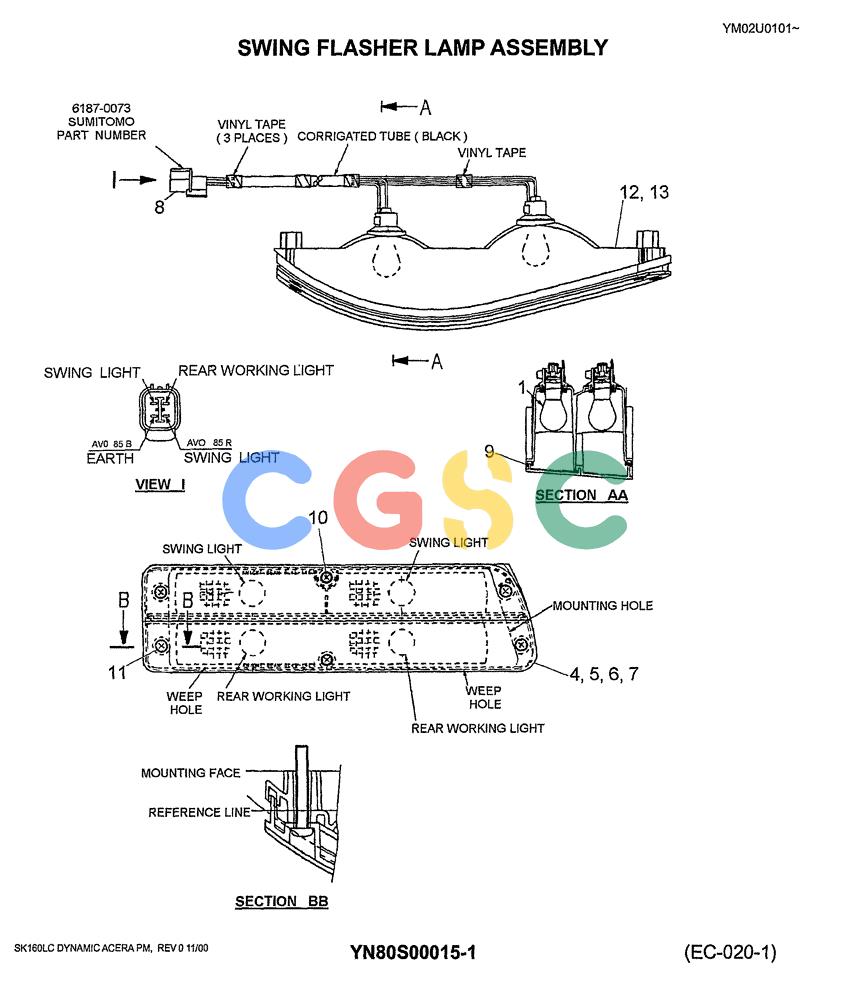

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (07-002) - SWING FLAHSER LAMP ASSEMBLY P/N YN80S00015F3 & YN80S00015F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
922 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN80S00015F3 | [1] | LAMP | KOBLAMP, RH FLASHER |
| . . | YN80S00015F4 | [1] | LAMP | KOBLAMP, LH FLASHER |
| 1. | YN80S00015S001 | [4] | BULB | KOBBULB Superseded by part number: 2456U85S4 |
| 4. | YN80S00015S004 | [1] | LENS | KOBLENS, LH (F3 ONLY) |
| 5. | YN80S00015S005 | [1] | LENS | KOBLENS, RH (F4 ONLY) |
| 6. | YN80S00015S006 | [1] | LENS | KOBLENS, LH (RED) (F3 ONLY) |
| 7. | YN80S00015S007 | [1] | LENS | KOBLENS, RH (RED) (F4 ONLY) |
| 8. | YN80S00015S008 | [1] | CABLE | KOBCABLE |
| 9. | YN80S00015S009 | [1] | GASKET | KOBGASKET |
| 10. | YN80S00015S010 | [2] | SCREW | KOBM05x25mm |
| 11. | YN80S00015S011 | [4] | SCREW | KOBM06x40mm |
| 12. | NA | [1] | NOT SERVICED | FORBODY ASSY, RH (F3 ONLY) |
| 13. | NA | [1] | NOT SERVICED | FORBODY ASSY, LH (F4 ONLY) |
