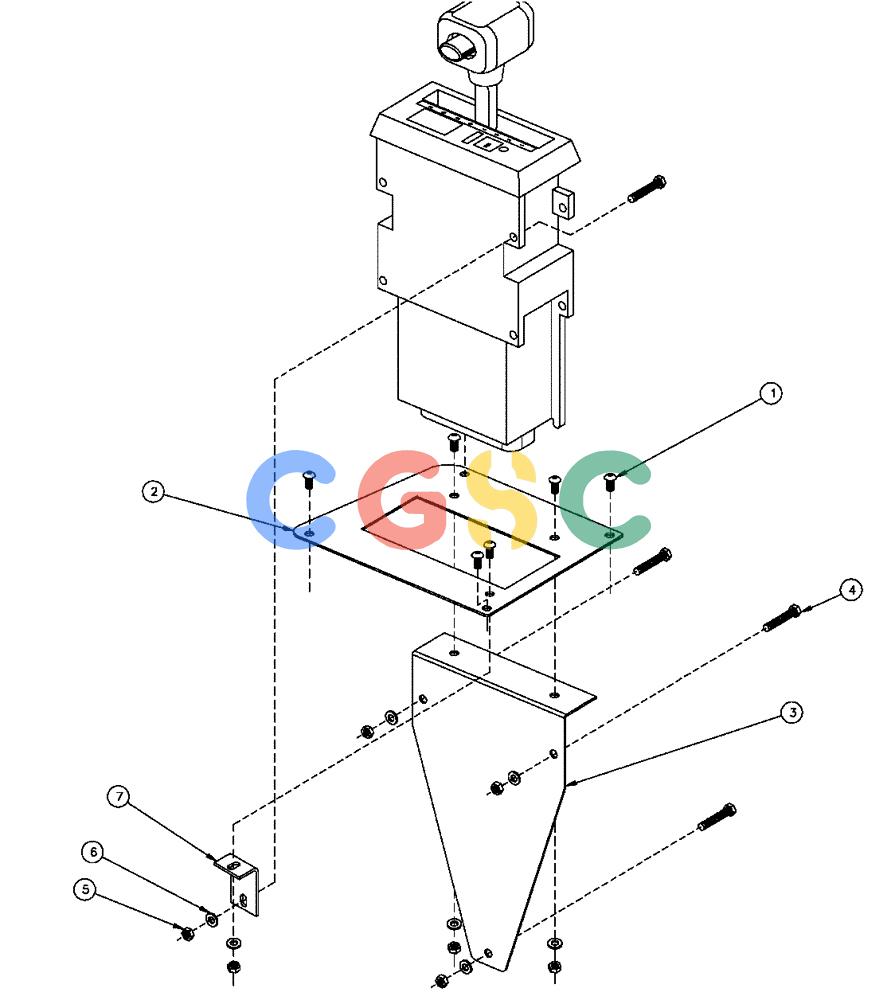

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (03-004) - SELECTOR ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
819 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
161-115
|
[7] |
HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"
|
CAS
Superseded by part number: 86625197
|
| 2. |
BN310715
|
[1] |
PANEL
|
TYR
MD Shifter
|
| 3. |
BN304085
|
[1] |
MOUNTING PLATE
|
BN
Weldment, Shifter Mount
|
| 4. |
9707580
|
[4] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
|
NH
|
| 5. |
BN1470402C
|
[7] |
FLANGE NUT
|
BN
1/4-20, FLN, G8 Superseded by part number: 280129
|
| 6. |
BN2303140
|
[7] |
PLATE
|
BN
Washer, Flat 1/4 Superseded by part number: 80701
|
| 7. |
BN310717
|
[1] |
BRACKET
|
BN
MD Shifter
|
