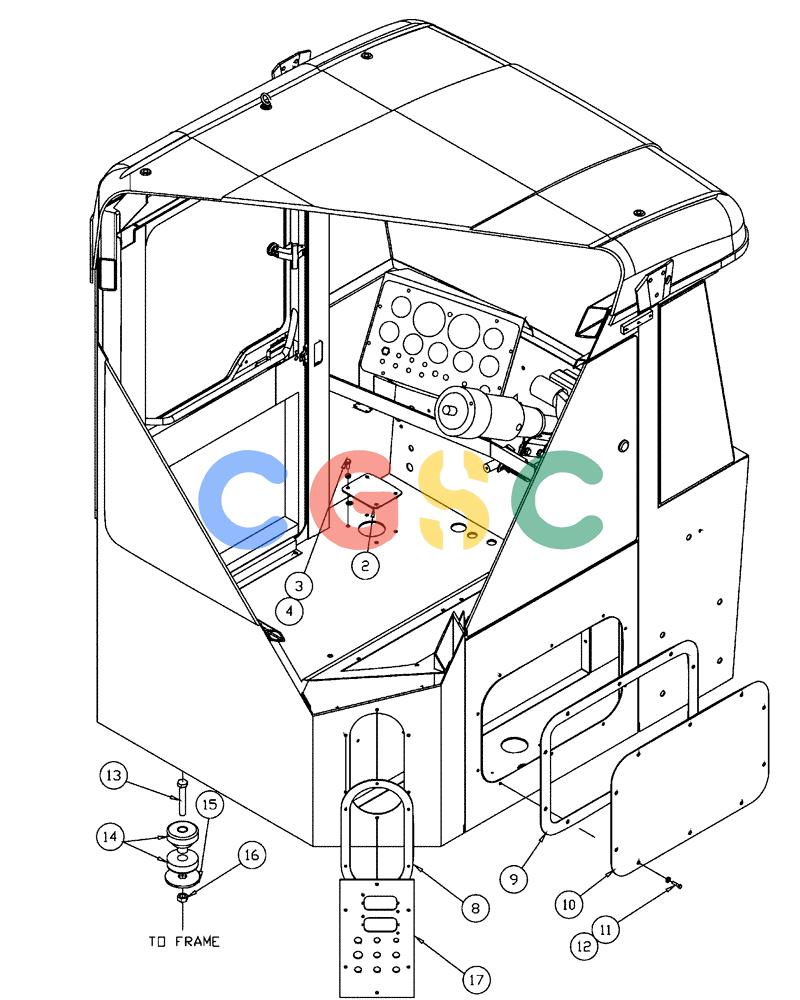

凯斯零件查询(FLX3300B) - FLOATER - 2002 (9/02-10/03) (01-014) - CAB AND PANEL MOUNTING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
730 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
BN310505
|
[1] |
Sub Assembly (Steel)
|
CAB FRAME
|
| 0. |
BN310506
|
[1] |
Sub Assembly (Stainless Steel)
|
CAB FRAME
|
| 2. |
BN7146086
|
[1] |
SHEET
|
BN
Cover Plate Auxiliary
|
| 3. |
BN1913308C
|
[4] |
HH 5/16-18 X 3/4 NC
|
|
| 4. |
BN1470403C
|
[4] |
FLANGE NUT
|
BN
5/16-18, FLN, G8 Superseded by part number: 231-4145
|
| 8. |
BN2390723
|
[1] |
GASKET
|
BN
Panel
|
| 9. |
BN2390722
|
[1] |
GASKET
|
BN
Access Panel
|
| 10. |
BN7142152
|
[1] |
SHEET
|
TYR
Cover Plate Side
|
| 11. |
BN2403261
|
[22] |
BOLT
|
BN
HH 1/4-20 X 1 SS
|
| 12. |
BN2392389
|
[16] |
WASHER
|
BN
Flat 1/4 SS
|
| 13. |
87342024
|
[4] |
BOLT,Hex, M22 x 120mm, Cl 10.9
|
BN
M22-2.5 X 120, HH, 10.9
|
| 14. |
76082156
|
[4] |
ISOLATOR
|
CAS
Molded Ring
|
| 15. |
BN302284
|
[4] |
WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk
|
BN
Rebound, 3.88 od x .94 id x .25
|
| 16. |
BN305518
|
[4] |
NUT
|
BN
M22-2.5, NLN, 10.9 Superseded by part number: 86729942
|
| 17. |
BN8196070
|
[1] |
(Cab & Chassis Only), See Fig 10-018
|
|
