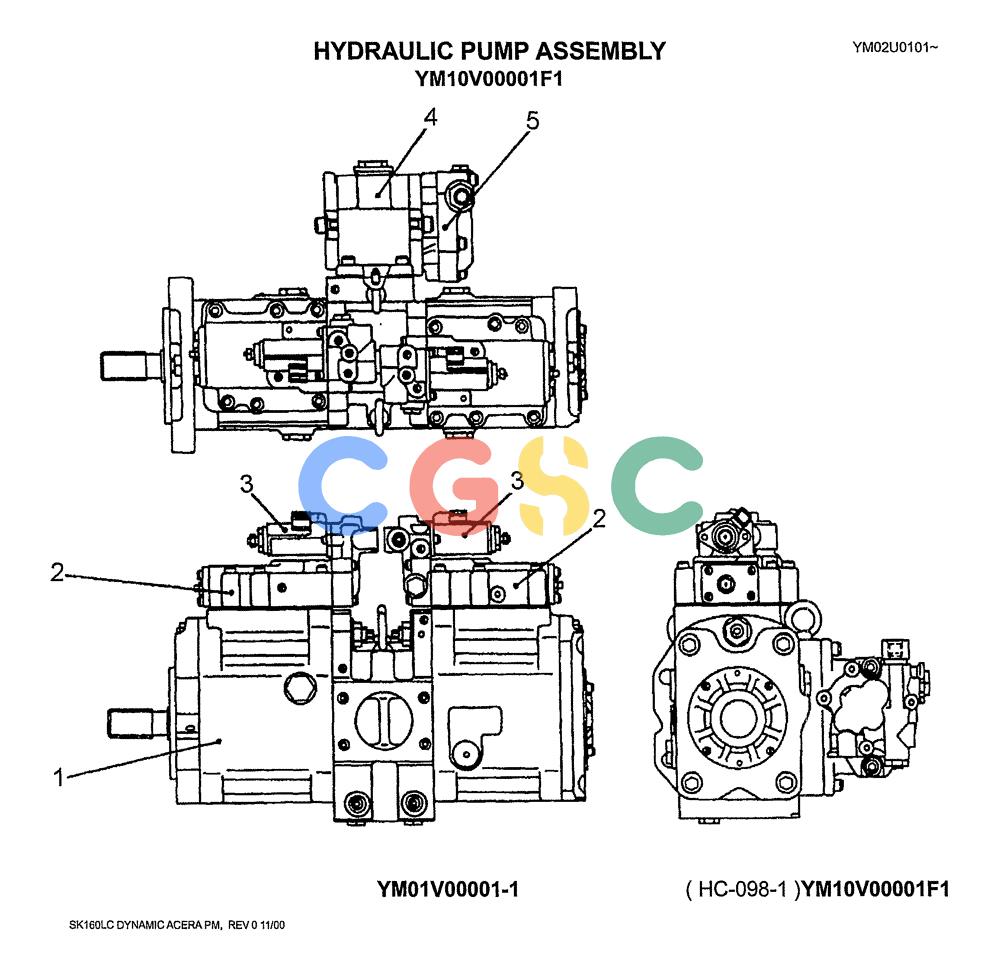

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (08-008) - HYDRAULIC PUMP ASSY P/N YM10V00001F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
183 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM10V00001F1 | [1] | PUMP | KOBPUMP ASSY, HYD Superseded by part number: YM10V00001F2 |
| 1. | YM10V00002F1 | [1] | PUMP | KOBPUMP, HYD (SEE P. YM10V00002-1) Not serviced - Order upper assembly |
| 2. | YM10V01001F1 | [2] | REGULATOR | KOBREGULATOR (SEE P. YM10V01001-1) |
| 3. | YN35V00018F2 | [1] | SOLENOID VALVE | KOBVALVE, SOLENOID (SEE P. YN35V00018-1) |
| 4. | YB46W00001F1 | [1] | CASE | KOBGEAR ASSY (SEE P. YB46W00001-1) (Use oring ZD12G09500 at attach point) Superseded by part number: YB46W00001F2 |
| 5. | YX10V00004F1 | [1] | PUMP | KOBPUMP, GEAR (SEE P. YX10V00004-1) Superseded by part number: 77279971, YX10V00004F2 |
