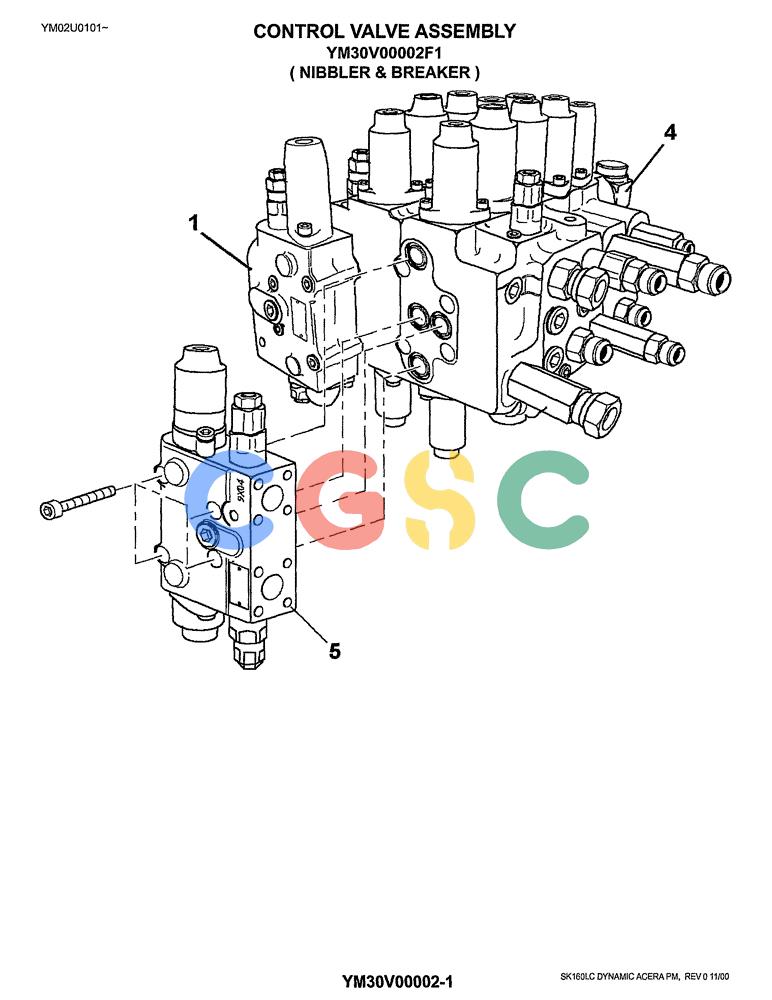

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (08-015) - CONTROL VALVE ASSY (NIBBLER AND BREAKER) P/N YM30V00002F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM30V00002F1 | [1] | VALVE ASSY, CONTROL (N&B) | |
| 1. | YM30V00004F1 | [1] | VALVE ASSY (SEE P. YM30V00004-1) | |
| 3. | YM30V00003F1 | [1] | VALVE ASSY (SEE P.YM30V00003-1) | |
| 4. | YV30V00005F1 | [1] | VALVE | KOBVALVE ASSY (N&B) |
| . . | ZD12G03000 | [3] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm, NOT SHOWN |
| . . | YV30V00008F1 | [1] | VALVE | KOBNOT SHOWN |
| . . | ZS23C12065 | [4] | SCREW,Hex Socket Head, M12 x 65mm | KOBM12x1.75x60mm, NOT SHOWN |
