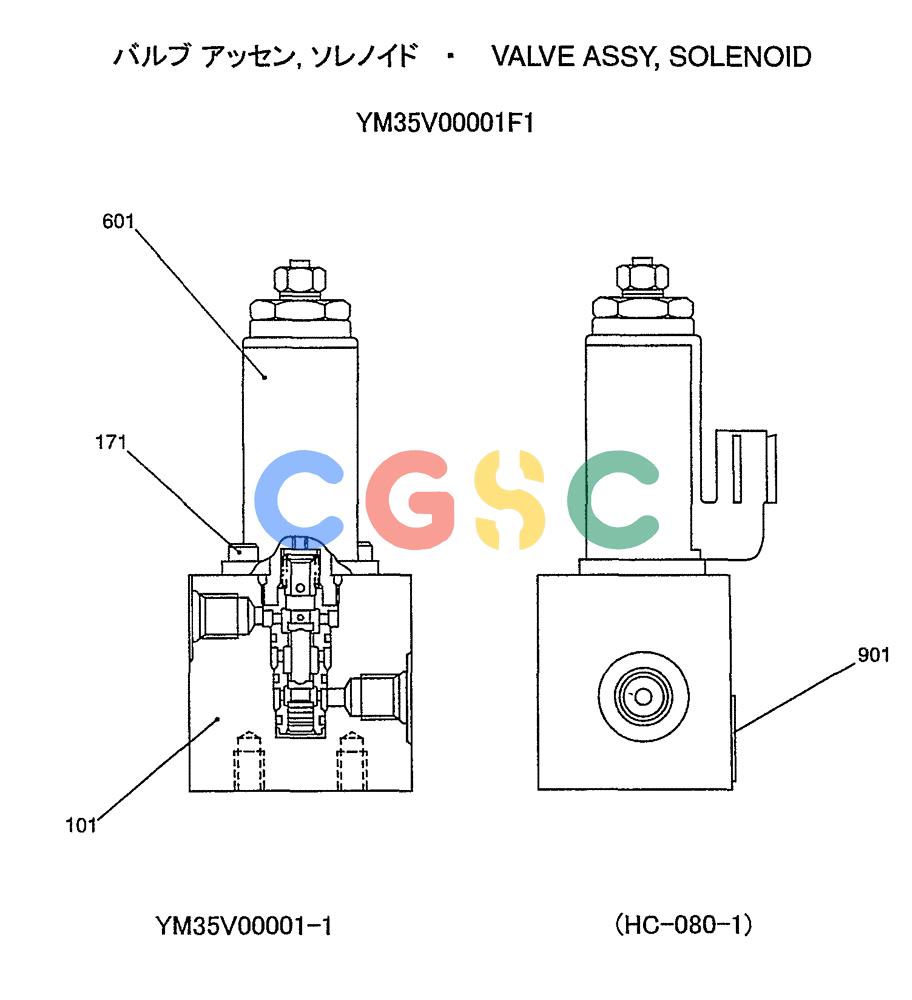

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (08-017) - SOLENOID VALVE ASSY P/N YM35V00001F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
244 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM35V00001F1 | [1] | VALVE | KOBASSY, SOLENOID |
| 101. | YM35V00001S101 | [1] | BODY | |
| 171. | YX35V00002S171 | [2] | SCREW,Hex Socket Head, M5 x 12mm | KOBM05x0.8x12mm Superseded by part number: ZS23C05012 |
| 601. | YN35V00019F1 | [1] | SOLENOID VALVE | KOBVALVE, SOLENOID (SEE P. YM35V00019F1) |
| 901. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
