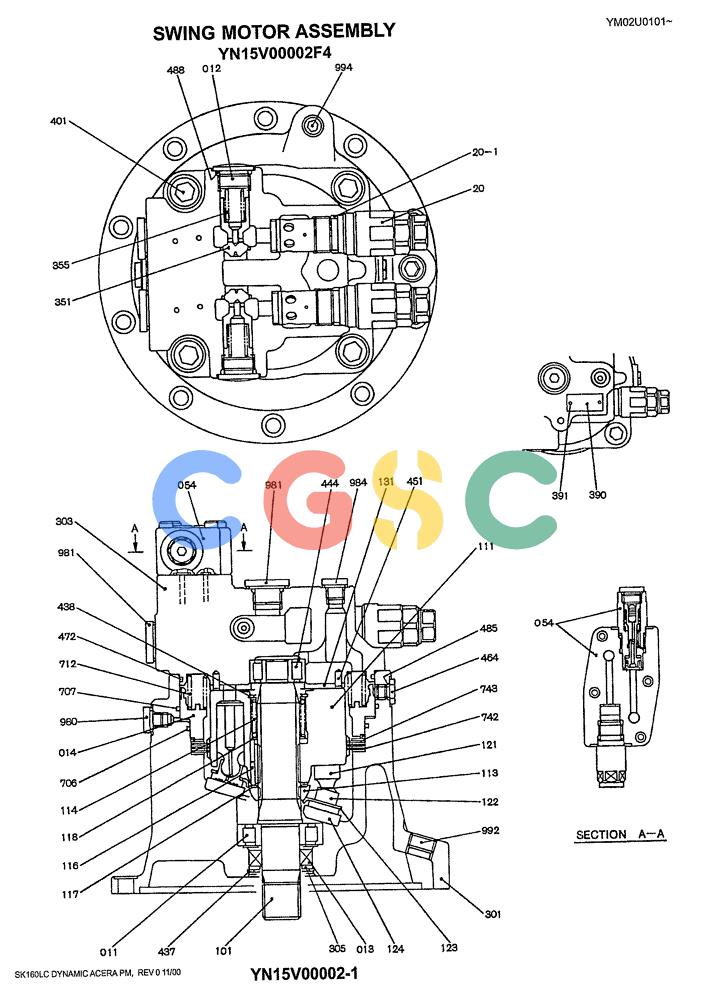

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (08-019) - SWING MOTOR ASSY P/N YN15V00002F4 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
156 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN15V00002F4 | [1] | HYDRAULIC MOTOR | KOBSWING MOTOR ASSY Superseded by part number: YN15V00025F4 |
| 11. | YN15V00002S011 | [1] | ROLLER BEARING | KOBBEARING, ROLLER |
| 12. | YN15V00002S012 | [2] | PLUG | KOBPLUG |
| 13. | YN15V00002S013 | [1] | GASKET | KOBOIL SEAL |
| 14. | YN15V00002S014 | [1] | PISTON | KOBPISTON, BRAKE |
| 54. | YN20V00004F1 | [1] | VALVE | KOBVALVE ASSY, SWING-SHOCKLESS(SEE P. YN20V 00004-1) |
| 20. | YN22V00014F1 | [2] | VALVE | KOBVALVEASSY, RELIEF(Pre-set at 285 kgf/cm2) |
| 20-1. | ZD12G03000 | [1] | O-RING,29.40mm ID x 35.60mm OD x 3.10mm | KOBID 29.4 ± 0.29 x OD 35mm |
| 101. | YN15V00002S101 | [1] | SHAFT | KOBSHAFT |
| 111. | YN15V00002S111 | [1] | BLOCK | KOBCYLINDER |
| 113. | YN15V00002S113 | [1] | BUSHING | KOBBUSHING |
| 114. | YN15V00002S114 | [1] | SPRING | KOBSPRING |
| 116. | YN15V00002S116 | [12] | PUSH ROD | KOBROD, PUSH |
| 117. | YN15V00002S117 | [1] | SPACER | KOBSPACER |
| 118. | YN15V00002S118 | [2] | SPACER | KOBSPACER |
| 121. | NSS | [9] | NOT SOLD SEPARAT | CONPISTON(INCL IN KIT) |
| 122. | NSS | [9] | NOT SOLD SEPARAT | CONSHOE(INCL IN KIT) |
| 123. | YN15V00002S123 | [1] | PLATE | KOBPLATE, SET |
| 124. | YN15V00002S124 | [1] | PLATE | KOBPLATE, SHOE |
| 131. | YN15V00002S131 | [1] | PLATE | KOBPLATE, VALVE |
| 301. | YN15V00002S301 | [1] | BODY | KOBCASE |
| 303. | NSS | [1] | NOT SOLD SEPARAT | CONCASE, VALVE(INCL IN KIT) |
| 305. | YN15V00002S305 | [1] | BODY | KOBCOVER |
| 351. | YN15V00002S351 | [2] | HYDRAULIC VALVE | KOBPLUNGER Superseded by part number: YN15V00025S351 |
| 355. | YN15V00002S355 | [2] | SPRING | KOBSPRING |
| 390. | 2437U407S981 | [1] | LABEL | KOBNAME PLATE |
| 391. | 2437U407S983 | [2] | RIVET | KOBPIN |
| 401. | ZS23C20045 | [4] | CAP,Hex Socket Head, M20 x 45mm | KOBScrew -- M20x2.5x45mm |
| 437. | ZR26X06000 | [1] | RING | KOBRetaining -- ID 60 x OD 64.2 x Th 2.0mm |
| 438. | ZR26X05200 | [1] | RING | KOBRETAINING |
| 444. | YN15V00002S444 | [1] | ROLLER BEARING | KOBBEARING, ROLLER |
| 451. | NSS | [2] | NOT SOLD SEPARAT | CONPIN(INCL IN KIT) |
| 454. | 2441U667S466 | [1] | PLUG | KOB1/4" PF |
| 472. | 2441U564S735 | [1] | O-RING,3.5mm Thk x 173mm ID, 75 Duro | KOBO-RING Superseded by part number: YN15V00025S489 |
| 485. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 488. | ZD12P02800 | [2] | O-RING | KOBID 27.70 ± 0.27 x OD 34mm |
| 706. | 2441U736S706 | [1] | O-RING | KOBO-RING |
| 707. | 2415U188S707 | [1] | O-RING | KOBO-RING |
| 715. | YN15V00002S712 | [24] | SPRING | KOBSPRING Superseded by part number: YN15V00025S712 |
| 742. | YN15V00002S742 | [3] | CLUTCH PLATE | KOBPLATE, FRICTION |
| 743. | YN15V00002S743 | [4] | STEP PLATE | KOBPLATE, SEPARATOR |
| 980. | LQ15V00001S982 | [1] | PLUG | KOBPLUG |
| 981. | LQ15V00001S983 | [3] | PLUG | KOBPLUG |
| 984. | YN15V00002S984 | [1] | PLUG | KOBPLUG |
| 992. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 994. | ZE82T12000 | [1] | PLUG | KOB3/4" PT |
| . . | YN15V00002R100 | [1] | PISTON | KOBPISTON ASSY CONSISTS OF REF 121 X9, 122X9 Superseded by part number: YN15V00012R100 |
| . . | YN15V00002R200 | [1] | REPAIR KIT | KOBCASEASSY, VALVE CONSISTS OF REF 303X1,451X2 |
| . . | YN15V00002R300 | [1] | REPAIR KIT | KOBSEAL ASSY CONSISTS OF REF 013X1,472X1,485X1,488X2,706X1,707X1 |
