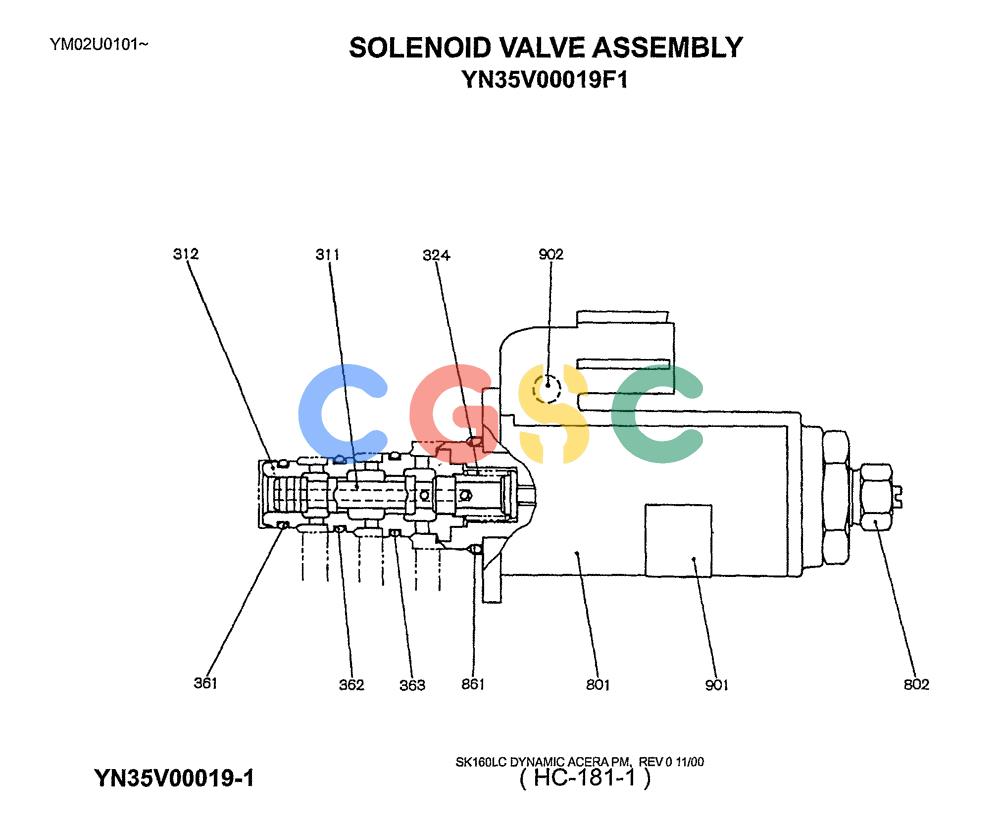

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (08-023) - SOLENOID VALVE ASSY P/N YN35V00019F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
740 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00019F1 | [1] | SOLENOID VALVE | KOBASSY, SOLENOID |
| 311. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 312. | NSS | [1] | NOT SOLD SEPARAT | CONSLEEVE |
| 324. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 361. | YN35V00004S361 | [1] | O-RING | KOBO-RING |
| 362. | YN35V00004S362 | [1] | O-RING | KOBO-RING |
| 363. | YN35V00004S363 | [1] | O-RING | KOBO-RING |
| 801. | NSS | [1] | NOT SOLD SEPARAT | CONSOLENOID |
| 802. | YN35V00018S802 | [1] | NUT | KOBNUT |
| 861. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBID 19.80 ± 0.22 x OD 24mm |
| 901. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 902. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
