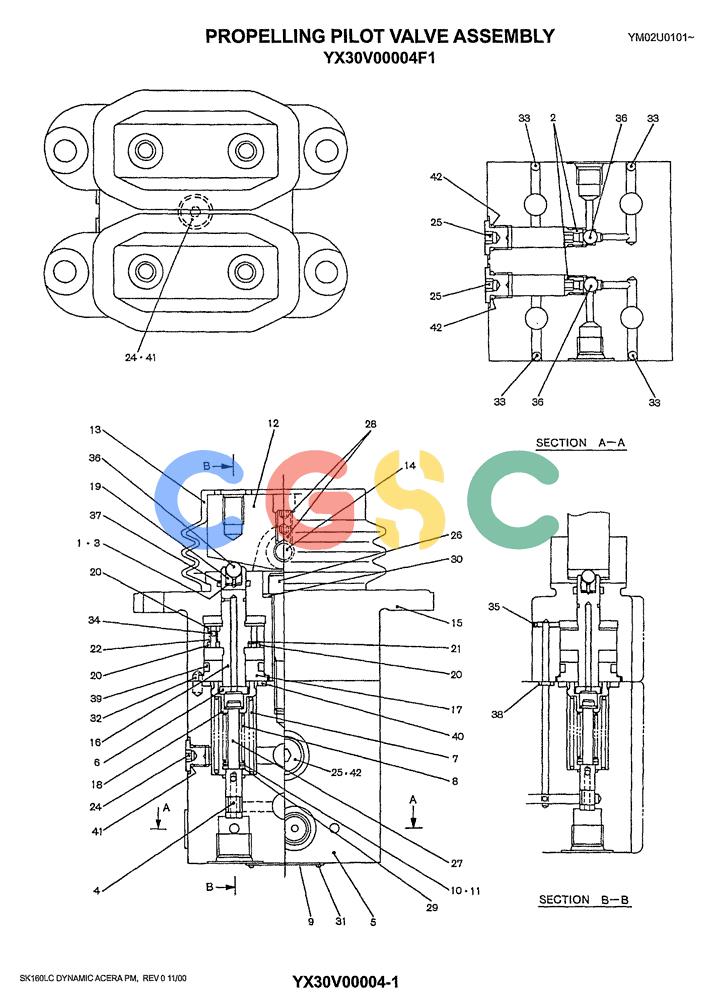

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (08-027) - PROPELLING PILOT VALVE ASSY P/N YX30V00004F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
263 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX30V00004F1 | [1] | VALVE | KOBVALVE ASSY,PILOT (PROPELLING) Superseded by part number: YX30V00004F2 |
| 1. | YX30V00004S001 | [4] | ORIFICE | KOBORIFICE (SHIM) |
| 2. | 2436U2755S4 | [2] | SEAT | KOBSEAT |
| 3. | YX30V00004S003 | [4] | ORIFICE | KOB(SHIM) |
| 4. | NSS | [4] | NOT SOLD SEPARAT | CONSPOOL |
| S. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 6. | YX30V00004S006 | [4] | STOP | KOBSTOPPER |
| 7. | YX30V00004S007 | [4] | SPRING | KOBSPRING |
| 8. | YR30V00013S009 | [4] | SPRING | KOBSPRING |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONNAME PLATE |
| 10. | 2436U1354S25 | [4] | SHIM | KOBSHIM |
| 11. | YR30V00013S012 | [4] | SHIM | KOBSHIM |
| 12. | YX30V00004S012 | [2] | CAM | KOBCAM |
| 13. | YN30V00022S016 | [2] | BOOT | KOBBOOT |
| 14. | YN30V00022S017 | [2] | PIN | KOBPIN |
| 15. | NSS | [2] | NOT SOLD SEPARAT | CONCOVER |
| 16. | NSS | [4] | NOT SOLD SEPARAT | CONPISTON |
| 17. | NSS | [4] | NOT SOLD SEPARAT | CONGUIDE |
| 18. | YX30V00004S018 | [4] | SLEEVE | KOBSLEEVE |
| 19. | YX30V00004S019 | [4] | HOLDER | KOBHOLDER |
| 20. | NSS | [12] | NOT SOLD SEPARAT | CONRING |
| 21. | NSS | [4] | NOT SOLD SEPARAT | CONORIFICE (SHIM) |
| 22. | NSS | [4] | NOT SOLD SEPARAT | CONSPRING |
| 24. | YX30V00004S024 | [3] | PLUG | KOBPLUG |
| 25. | 2436U2412S26 | [3] | PLUG | KOB1/4"PF |
| 26. | YX30V00004S026 | [2] | CAPSCREW,Hex Socket Head, M10 x 60mm | KOBSCREW CAPSCREW Superseded by part number: ZS23C10060 |
| 27. | 2436U1354S15 | [4] | BOLT | KOBBOLT,FLANGE |
| 28. | ZS83C08008 | [4] | SCREW | KOBSet -- M08x1.25x08mm |
| 29. | 2436U1354S16 | [4] | WASHER | KOBWASHER |
| 30. | YX30V00004S030 | [2] | WASHER | KOBWASHER |
| 31. | EZ30V00001S037 | [2] | SCREW | KOBRIVET |
| 32. | YX30V00004S032 | [4] | PIN | KOBPIN |
| 33. | NSS | [6] | NOT SOLD SEPARAT | CONBALL |
| 34. | NSS | [4] | NOT SOLD SEPARAT | CONBALL |
| 35. | NSS | [4] | NOT SOLD SEPARAT | CONBALL |
| 36. | 2436U1487S37 | [6] | BALL | KOBBALL |
| 37. | PH30V00004S031 | [4] | PACKING | KOBU-PACKING |
| 38. | ZD11P00500 | [4] | O-RING | KOBO-RING |
| 39. | ZD11P02400 | [4] | O-RING | KOBO-RING |
| 40. | ZD11P02600 | [4] | O-RING | KOBO-RING |
| 41. | ZD12P00800 | [3] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 42. | ZD12P01100 | [3] | O-RING | KOBID 10.8mm x OD 13.2mm |
| . . | YX30V00004R100 | [4] | REPAIR KIT | KOBREPAIR KIT CONSISTS OF REF 16x1,20x3,21x1,22x1,34x1 |
