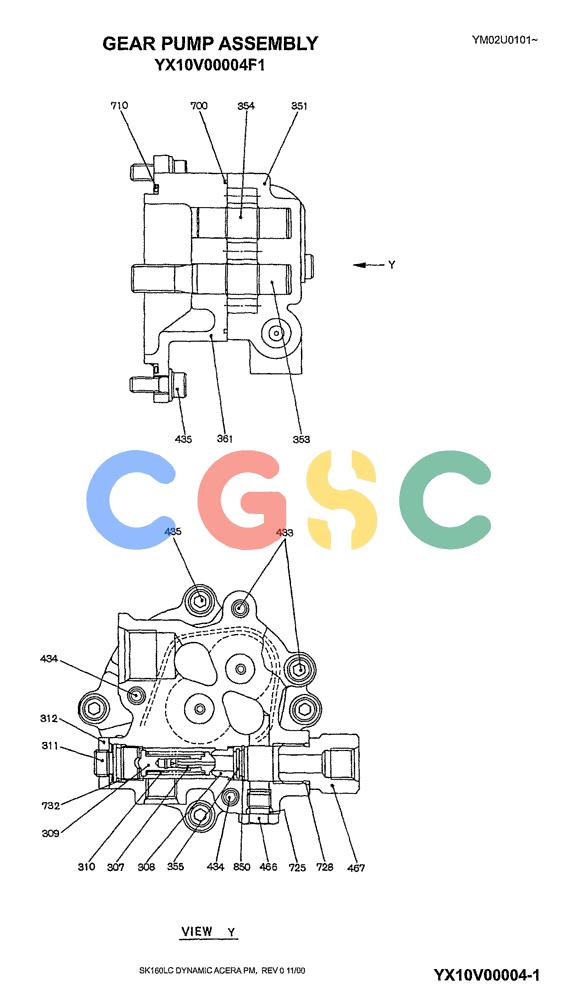

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (08-026) - GEAR PUMP ASSY P/N YX10V00004F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX10V00004F1 | [1] | PUMP | KOBASSY, GEAR Superseded by part number: 77279971, YX10V00004F2 |
| 307. | NSS | [1] | NOT SOLD SEPARAT | CONPOPPET(INCL IN REPAIR KIT) |
| 308. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT(INCL IN REPAIR KIT) |
| 309. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT, SPRING(INCL IN REPAIR KIT) |
| 310. | YN10V00006S310 | [1] | SPRING | KOB |
| 311. | YT10V00003S660 | [1] | SCREW | KOBADJUST |
| 312. | YN10V00006S312 | [1] | LOCK NUT | KOBM14x1.50mm |
| 351. | NSS | [1] | NOT SOLD SEPARAT | CONCASE (INCL IN REPAIR KIT) |
| 353. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR, DRIVE (INCL IN REPAIR KIT) |
| 354. | NSS | [1] | NOT SOLD SEPARAT | CONGEAR DRIVE (INCL IN REPAIR KIT) |
| 355. | YN10V00006S355 | [1] | FILTER | KOB |
| 361. | NSS | [1] | NOT SOLD SEPARAT | CONCASE (INCL IN REPAIR KIT) |
| 433. | YN10V00006S433 | [2] | SOCKET | KOBM08 |
| 434. | YN10V00006S434 | [2] | SOCKET | KOBM08 |
| 435. | YN10V00014S435 | [4] | BOLT | KOBM10 |
| 466. | 2441U667S466 | [1] | PLUG | KOB1/4" PF |
| 467. | YN10V00006S467 | [1] | ADAPTER | KOB1/2" x 3/8" PF |
| 700. | YN10V00006S700 | [1] | RING | KOBO-RING |
| 710. | ZD12G09500 | [1] | O-RING,3.1mm Thk x 94.4mm ID, 90 Duro | KOBO-Ring -- ID 94.40 ± 0.81 x OD 100mm |
| 725. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 728. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 732. | ZD12P01600 | [1] | O-RING | KOBID 15.80 ± 0.20 x OD 20mm |
| 850. | ZR26X01800 | [1] | RING | KOBRetaining -- ID 18 x OD 19.5 x Th 1.0mm |
| . . | YX10V00004R100 | [1] | REPAIR KIT | KOBINCL REF 307, 309 |
| . . | YX10V00004R200 | [1] | REPAIR KIT | KOBINCL REF 308, 351, 353,354, 361 Superseded by part number: YX10V00004F2 |
