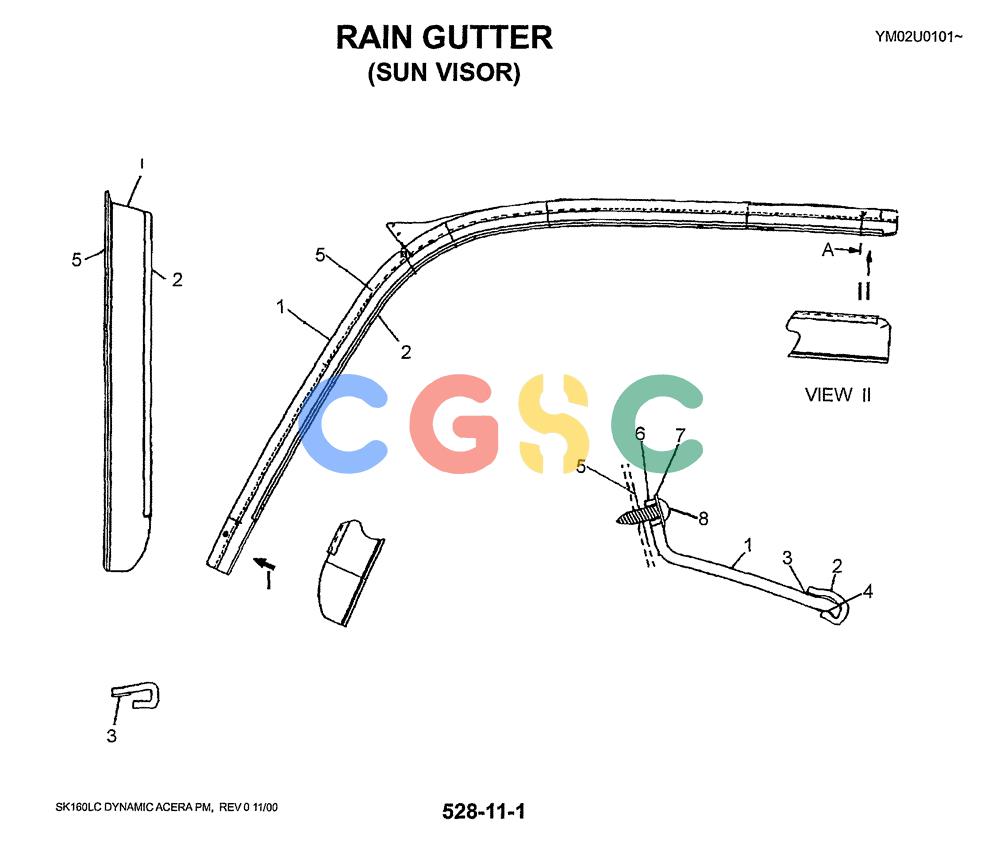

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (05-005) - RAIN GUTTER (SUN VISOR) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN55C01013F1 | [1] | GUTTER | KOBGUTTER, RAIN |
| 1. | YN55C01013S001 | [1] | GUARD | |
| 2. | YN55C01013S002 | [1] | SEAL | KOBSEAL |
| 3. | YN55C01013S003 | [1] | ADHESIVE | KOBADHESIVE |
| 4. | YN55C01013S004 | [1] | ADHESIVE | KOBADHESIVE |
| 5. | YN55C01013S005 | [1] | ADHESIVE | KOBADHESIVE |
| 6. | YN55C01013S006 | [5] | SPACER | |
| 7. | YN55C01013S007 | [5] | WASHER | KOBWASHER |
| 8. | YN55C01013S008 | [5] | SCREW, TAPPING | |
