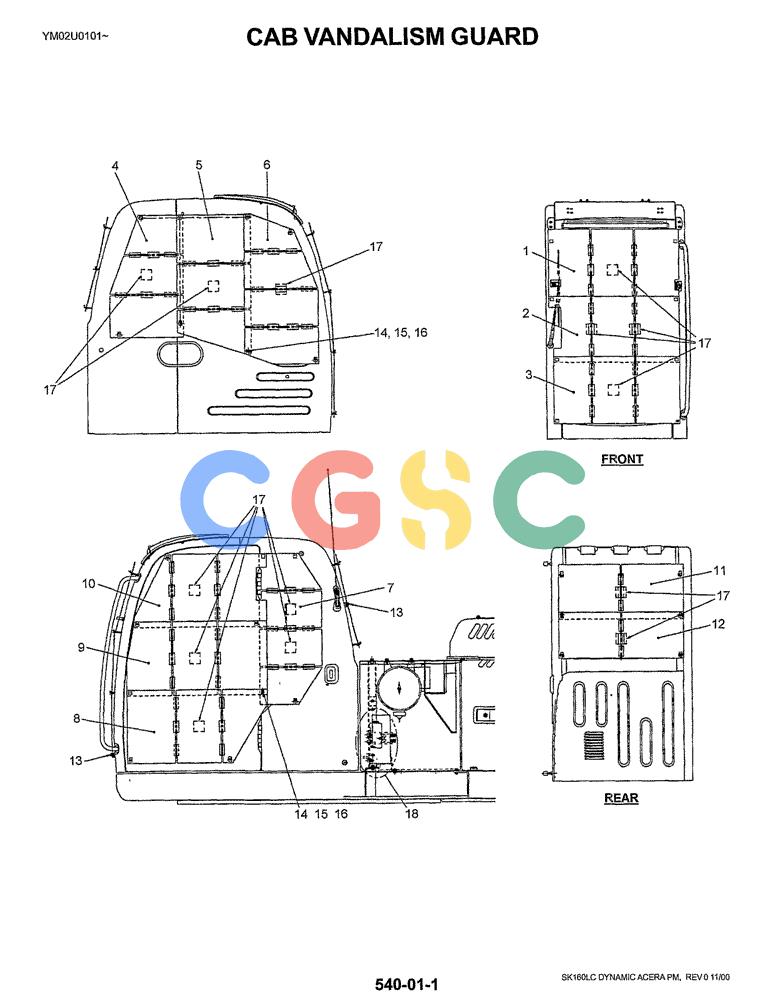

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (05-006) - CAB VANDALISM GUARD Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
988 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN25C00003F1 | [1] | GUARD ASSY. | KOBVANDALISM CAB Superseded by part number: 2420R220D43, YN25C01008P2, ZM22C08020, ZM32C12025, KSP9000-0039, LB21C01056P1, YN25C01002P1, YN25C01012P1, YN25C01004P1, YN20TU1004P1, YN25C01011P1, YN25C01006P1, YN25C01005P1, YN25C01003P1, YN25C01009P2, YN25C01007P2, 2418T12346, YN25C01010P1, LB21C01053P1, 83990583, LB21C01052P1, LB21C01050P1, ZW16X08000, LC21C01139D3, ZS18C08014, YN25C01001P1, YN25C01014P1 |
| 1. | YN25C01010P1 | [1] | GUARD | KOB |
| 2. | YN25C01012P1 | [1] | GUARD | KOB |
| 3. | YN25C01011P1 | [1] | GUARD | KOB |
| 4. | YN25C01007P2 | [1] | GUARD | KOB |
| 6. | YN25C01008P2 | [1] | GUARD | KOB |
| 5. | YN25C01009P1 | [1] | GUARD | KOB Superseded by part number: YN25C01009P2 |
| 7. | YN25C01006P1 | [1] | GUARD | KOB |
| 8. | YN25C01003P1 | [1] | GUARD | KOB |
| 9. | YN25C01004P1 | [1] | GUARD | KOB |
| 10. | YN25C01005P1 | [1] | GUARD | KOB |
| 11. | YN25C01002P1 | [1] | GUARD | KOB |
| 12. | YN25C01001P1 | [1] | GUARD | KOB |
| 13. | ZM22C08020 | [2] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| 14. | ZS18C08014 | [2] | SCREW,Hex, M8 x 14mm | KOBM08x1.25x14mm |
| 15. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 16. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 17. | YN25C01014P1 | [14] | PLATE | KOBASSY |
| 18. | LB21C01057F1 | [1] | BRACKET | KOB Superseded by part number: LB21C01052P1, LB21C01050P1, 2418T12346, LB21C01056P1, LB21C01053P1, ZM32C12025, LC21C01139D3, 2420R220D43 |
