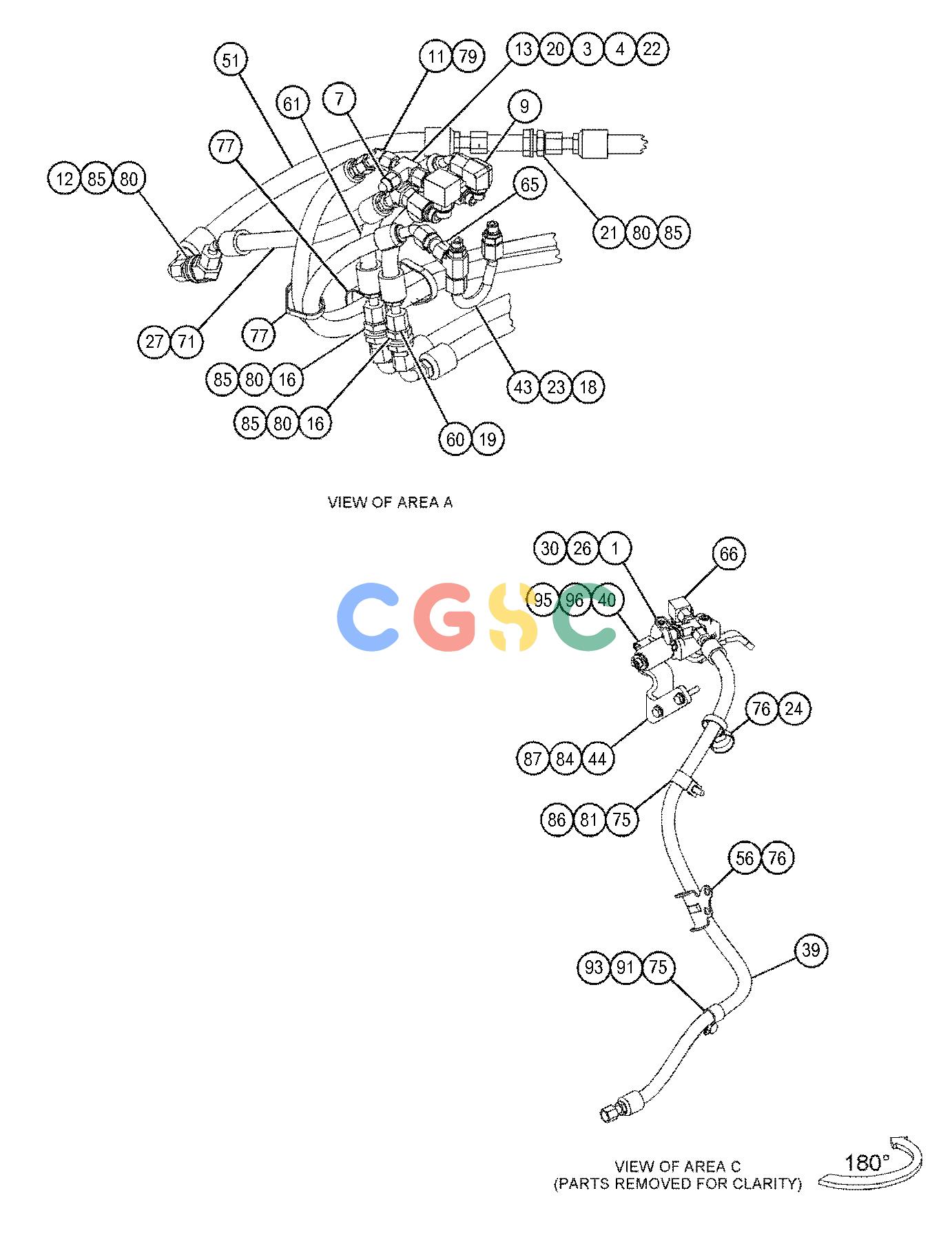

卡特零件查询（735） 539-1036: LINES GP-BRAKE_卡特彼勒Caterpillar_工程机械

Pos.	Part No	Qty	Parts name
1.	6V-0852	[1]	CAP-DUST
2.	6V-8398	[4]	SEAL-O-RING
3.	9F-2167	[1]	SCREW-PURGE(3/8-24X1.164-IN)
4.	108-8393	[1]	CAP
5.	148-8340	[1]	CONNECTOR AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8639	[1]	CONNECTOR
6.	148-8354	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-9002	[1]	ELBOW
7.	148-8363	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-9876	[1]	ELBOW
8.	148-8364	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8625	[1]	ELBOW
9.	148-8365	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	8T-6876	[1]	ELBOW
10.	148-8370	[1]	ELBOW AS
	6V-8398	[1]	SEAL-O-RING
	6V-9851	[1]	ELBOW
11.	148-8371	[2]	ELBOW AS
			(EACH INCLUDES)
	6V-8397	[1]	SEAL-O-RING
	8C-8988	[1]	ELBOW
12.	148-8380	[1]	ELBOW AS
	6V-8398	[2]	SEAL-O-RING
	6V-8988	[1]	ELBOW
13.	148-8424	[1]	TEE AS
	6V-8397	[1]	SEAL-O-RING
	8T-8902	[1]	ADAPTER-TEE
14.	148-8428	[1]	TEE AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	6V-8782	[1]	TEE
15.	148-8444	[2]	TEE AS-SWIVEL
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-9837	[1]	TEE-SWIVEL
16.	148-8457	[3]	UNION AS(STRAIGHT)
			(EACH INCLUDES)
	6V-8398	[2]	SEAL-O-RING
	6V-8995	[1]	UNION(STRAIGHT)
17.	150-4037	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	6V-9844	[1]	TEE-SWIVEL
18.	150-4043	[2]	CONNECTOR AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-9873	[1]	CONNECTOR
19.	164-5624	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	9X-2085	[1]	ELBOW
20.	169-7403	[1]	ADAPTER AS
	3J-1907	[1]	SEAL-O-RING
	6G-3432	[1]	ADAPTER
21.	185-6645	[1]	UNION AS
	6V-8398	[2]	SEAL-O-RING
	185-6644	[1]	UNION
22.	225-7657	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	9X-2091	[1]	ELBOW(SWIVEL)
23.	281-5898	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	6V-8398	[2]	SEAL-O-RING
	153-6270	[1]	TEE
24.	290-5562	[3]	MOUNT(DUAL SWIVEL)
25.	396-0416	[1]	TEE AS
	6V-8398	[2]	SEAL-O-RING
	296-5724	[1]	TEE
26.	426-4034	[1]	TEE AS
	7X-0871	[1]	TEE
	180-8424	[1]	SEAL-O-RING
27.	148-8311	[1]	ADAPTER AS
	3K-0360	[1]	SEAL-O-RING
	8T-1715	[1]	ADAPTER
28.	148-8378	[1]	ELBOW AS
	3J-1907	[1]	SEAL-O-RING
	6V-8397	[1]	SEAL-O-RING
	6V-8724	[1]	ELBOW
29.	153-6256	[1]	ELBOW AS
	7J-9108	[1]	SEAL-O-RING
	8C-7563	[1]	ELBOW
30.	164-5567	[1]	COUPLER AS-QUICK DISCONNECT(MALE)
	6V-3965	[1]	FITTING(QUICK DISCONNECT)
	214-7568	[1]	SEAL-O-RING
31.	268-1621	[1]	FITTING AS
	3D-2824	[1]	SEAL-O-RING
	6V-9746	[1]	SEAL-O-RING
	124-1212	[1]	FITTING
32.	345-7859I	[1]	HOSE AS
33.	362-4862I	[1]	HOSE AS
34.	378-5730I	[1]	HOSE AS
35.	3G-8047	[1]	GROMMET
36.	3G-8054	[1]	CLIP(TAB)
37.	3G-8057	[1]	CLIP(SLOT)
38.	3U-2752	[2]	CLIP(LOOP)
39.	430-4191I	[1]	HOSE AS
40.	505-4332Y	[1]	VALVE GP-SOLENOID(BRAKE)
41.	506-0461I	[1]	HOSE AS
42.	506-0463I	[1]	HOSE AS
43.	512-6174	[1]	TUBE AS
44.	518-4719	[1]	BRACKET AS
	7T-1099	[1]	LINK
	8T-3490M	[2]	NUT-WELD(M10X1.5-THD)
45.	518-8309	[1]	TUBE AS
46.	518-8346	[1]	BRACKET AS
	8T-3490M	[1]	NUT-WELD(M10X1.5-THD)
47.	519-1283	[1]	BRACKET AS
	8Y-3795M	[1]	BOSS(M10X1.5X39-MM)
48.	519-1967I	[1]	HOSE AS
49.	519-2725Y	[1]	ACCUMULATOR & MTG GP-BRAKE
50.	519-7634	[1]	TEE AS
	228-7089	[1]	SEAL-O-RING
	228-7090	[1]	SEAL-O-RING
	287-7326	[1]	TEE-SWIVEL
51.	519-7716I	[1]	HOSE AS
52.	524-7806	[1]	TUBE AS
53.	524-7807	[1]	BRACKET AS
	8T-3490M	[1]	NUT-WELD(M10X1.5-THD)
54.	525-0163	[1]	TUBE AS
55.	525-0210I	[1]	HOSE AS
56.	525-0219	[1]	BRACKET
57.	525-0906	[1]	TUBE AS
58.	525-1719I	[1]	HOSE AS
59.	525-1795I	[1]	HOSE AS
60.	526-2732I	[1]	HOSE AS
61.	526-2753I	[1]	HOSE AS
62.	539-1027	[1]	BRACKET AS
	8T-3490M	[2]	NUT-WELD(M10X1.5-THD)
63.	541-2273	[1]	TUBE AS
64.	541-2274	[1]	TUBE AS
65.	544-4848	[1]	ADAPTER AS
	6V-8398	[1]	SEAL-O-RING
	544-4847	[1]	ADAPTER
66.	548-5515	[1]	ELBOW AS
	3K-0360	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	544-4853	[1]	ELBOW
67.	550-4580	[1]	ELBOW AS
	6V-8397	[1]	SEAL-O-RING
		[1]	ELBOW
68.	550-7234I	[1]	HOSE AS
69.	551-3786	[1]	BRACKET AS
	8T-3490M	[1]	NUT-WELD(M10X1.5-THD)
70.	551-5518I	[1]	HOSE AS
71.	556-5491I	[1]	HOSE AS
72.	556-5637I	[1]	HOSE AS
73.	5P-7464	[1]	CLIP(SLOT)
74.	5P-7465	[1]	CLIP(TAB)
75.	6D-4636	[2]	CLIP(LOOP)
76.	6U-0455	[7]	STRAP
77.	6U-0456	[6]	STRAP
78.	6V-1249	[1]	GROMMET(22-MM ID)
79.	6V-8397	[1]	SEAL-O-RING
80.	6V-9169	[7]	NUT(13/16-16-THD)
81.	7X-7729	[4]	WASHER(11X25X3-MM THK)
82.	8T-1885	[5]	CLIP(SLOT)
83.	8T-1886	[5]	CLIP(TAB)
84.	8T-4121	[11]	WASHER-HARD(11X21X2.5-MM THK)
85.	8T-4123	[8]	WASHER(22X35X3.5-MM THK)
86.	8T-4136M	[6]	BOLT(M10X1.5X25-MM)
87.	8T-4182M	[6]	BOLT(M10X1.5X45-MM)
88.	8T-4183M	[1]	BOLT(M12X1.75X40-MM)
89.	8T-4186M	[1]	BOLT(M10X1.5X40-MM)
90.	8T-4189M	[2]	BOLT(M8X1.25X20-MM)
91.	8T-4192M	[3]	BOLT(M12X1.75X25-MM)
92.	8T-4195M	[2]	BOLT(M10X1.5X30-MM)
93.	8T-4223	[4]	WASHER-HARD(13.5X25.5X3-MM THK)
94.	8T-4224	[2]	WASHER-HARD(8.8X16X2-MM THK)
95.	8T-5005M	[2]	BOLT(M10X1.5X70-MM)
96.	8T-5360	[2]	WASHER(12X22.5X2.5-MM THK)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
	Y		SEPARATE ILLUSTRATION
