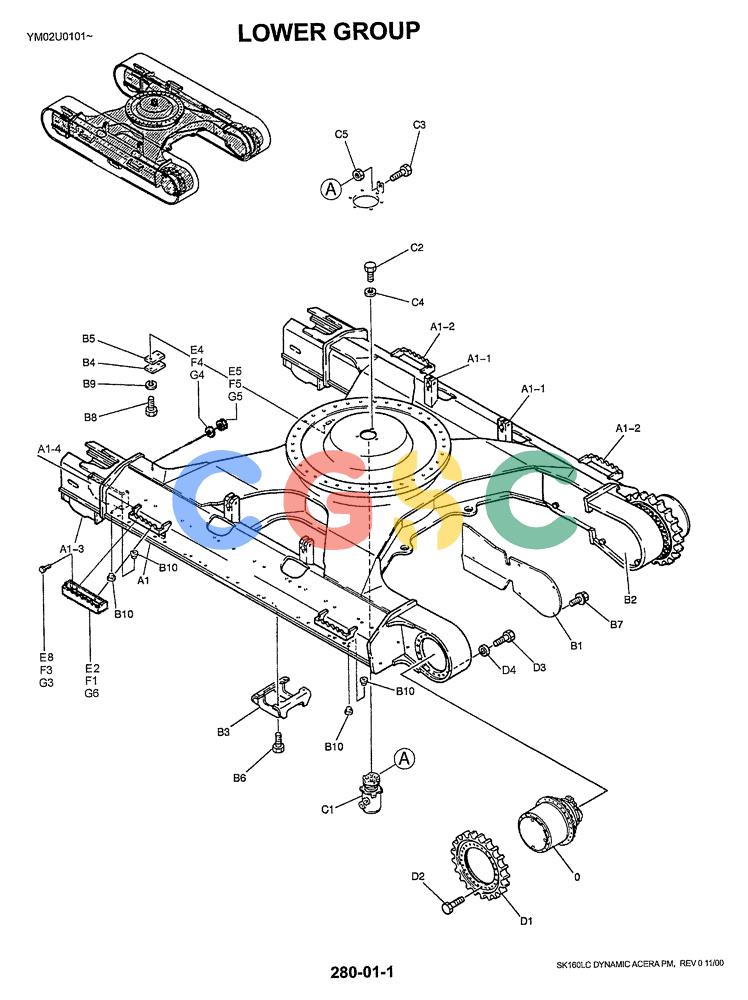

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (02-001) - LOWER GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
882 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONLOWER GROUP |
| 0. | YM15V00001F1 | [2] | HYDRAULIC MOTOR | KOBPROPELLING, SEE FIG 08-028 Superseded by part number: YM15V00001F2 |
| A1. | YM02F00003P1 | [1] | FRAME, LOW ASSY | FRAME, LOW ASSY |
| A1-1. | YM07F01003P1 | [4] | SUPPORT | KOB |
| A1-2. | YM41C00001P1 | [4] | STEP | |
| A1-3. | 2429P1137 | [1] | GUIDE | KOB(L) |
| A1-4. | 2429P1138 | [1] | GUIDE | KOB(R) |
| . . | YM01F00001F1 | [1] | LOW GROUP | |
| B1. | YM01F01001P1 | [1] | COVER | KOBCOVER |
| B2. | YM01F01002P1 | [1] | COVER | |
| B3. | YN01F01039P1 | [2] | GUIDE | KOBTRACK |
| B4. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| B5. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| B6. | 2420P1580D1 | [8] | SCREW,M18 x 1.5 x 40mm | KOBM18x1.50x40mm |
| B7. | 2420T6786 | [10] | BOLT,M12 x 1.75 x 25mm | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12025 |
| B8. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| B9. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| B10. | YN01F01040P1 | [28] | CAP | KOB21.5x17.2x8.1mm Superseded by part number: YY01F01047P1 |
| . . | YN19H00001F1 | [1] | JOINT ASSY. | KOBSWIVEL |
| C1. | 24100J15939F1 | [1] | FLEXIBLE JOINT | KOBSEE (C.P.M) Superseded by part number: 24100J15939F2 |
| C2. | ZS18C12025 | [3] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| C3. | ZS18C16110 | [1] | SCREW,Hex, M16 x 110mm | KOBM16x2.0x110mm |
| C4. | ZW16X12000 | [3] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| C5. | ZN18C16013 | [1] | NUT | KOBM16x2.0mm |
| . . | YV53D00001F1 | [1] | HYDRAULIC MOTOR | KOBINSTALLATION, PROPELLING |
| D1. | 2404N427 | [2] | SPROCKET,21T | KOB |
| D2. | 2420P2963D1 | [42] | SCREW,M16 x 2 x 50mm | KOBM16x2.0x50mm |
| D3. | ZS13C16060 | [60] | CAPSCREW | KOBSCREW M16x2.0x60mm |
| D4. | ZW13H16000 | [60] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| . . | YN41CU0002F5 | [1] | STEP EXTENTION (600mm SHOE) | |
| E2. | YN41CU0004P1 | [4] | STEP | KOB(50mm) |
| E4. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| E5. | ZN18C12010 | [8] | NUT | KOBM12x1.75mm |
| E8. | ZS18C12040 | [8] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| . . | YN41CU0002F1 | [1] | STEP | KOBEXTENTION , (700mm Shoe) Superseded by part number: ZN18C12010, ZS18C12050, YN41CU0003P1, ZW26X12000 |
| F1. | YN41CU0003P1 | [4] | STEP | KOB(100mm) |
| F3. | ZS18C12040 | [8] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
| F4. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| F5. | ZN18C12010 | [8] | NUT | KOBM12x1.75mm |
| . . | YN41CU0002F3 | [1] | STEP | KOBEXTENTION (800mm SHOE) Superseded by part number: ZS18C12050, YN41CU0005P1, ZW26X12000, ZN18C12010 |
| G3. | ZS18C12050 | [8] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| G4. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| G5. | ZN18C12010 | [8] | NUT | KOBM12x1.75mm |
| G6. | YN41CU0005P1 | [4] | STEP | KOB150mm Long (6in) |
