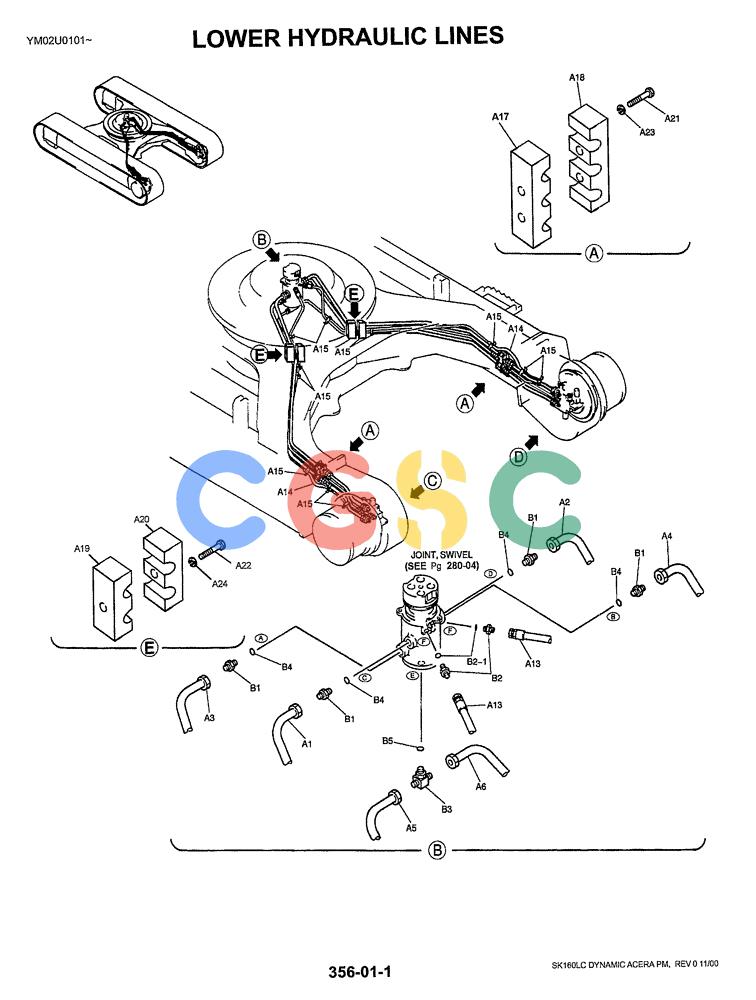

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (02-009[01]) - LOWER HYDRAULIC LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONHYDRAULIC LINES, LOWER |
| . . | YM02H00001F1 | [1] | HYD LINES, LOW | |
| A1. | YM02H01017P1 | [1] | TUBE | KOB |
| A2. | YM02H01018P1 | [1] | TUBE | KOB |
| A3. | YM02H01019P1 | [1] | TUBE | KOB |
| A4. | YM02H01020P1 | [1] | TUBE | KOB |
| A5. | YM02H01021P1 | [1] | TUBE | KOB |
| A6. | YM02H01022P1 | [1] | TUBE | KOB |
| A7. | YM02H01007P1 | [1] | TUBE | KOB |
| A8. | YM02H01008P1 | [1] | TUBE | KOB |
| A9. | YM02H01009P1 | [1] | TUBE | KOB |
| A10. | YM02H01010P1 | [1] | TUBE | KOB |
| A11. | YM02H01011P1 | [1] | TUBE | KOB |
| A12. | YM02H01012P1 | [1] | TUBE | KOB |
| A13. | ZX23M04210 | [2] | HOSE | KOB2100mm Long (82-11/16 in) |
| A14. | 2420Z1224D4 | [2] | HOSE | KOBGuard -- ID 22 x OD 26 x 300mm Long (11-13/16 in) |
| A15. | PY01P01043D3 | [12] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| A16. | ZA23B22000 | [6] | HYD CONNECTOR | KOBM30x1.50x38mm Long |
| A17. | YM02H01013P1 | [2] | CLAMP | KOB |
| A18. | YM02H01014P1 | [2] | CLAMP | KOB |
| A19. | YM02H01015P1 | [2] | CLAMP | KOB |
| A20. | YM02H01016P1 | [2] | CLAMP | KOB |
| A21. | ZS28C10040 | [4] | CAP,Hex Socket Head, M10 x 40mm | KOBScrew -- M10x1.50x40mm |
| A22. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| A23. | ZW26K10000 | [4] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| A24. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| . . | LP19H00001F1 | [1] | HYDRAULIC SWIVEL | KOBLINES |
| B1. | 2444Z2320 | [4] | ELEC CONNECTOR | KOB1"PF-M30x1.50x48mm Long |
| B2. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| B2-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| B3. | 2444Z2549 | [1] | TEE | KOB(2) M30x1.50 x 1/2"PF x 76mm Long (No O-Ring supplied) |
| B4. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| B5. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| . . | YM12H00001F1 | [1] | HYD LINES, PROPEL | |
| C1. | 2444Z2397 | [2] | ELEC CONNECTOR | KOB(PF 3/4 - PF 3/4) |
| C2. | ZA23F22012 | [4] | HYD CONNECTOR | KOB3/4"PF - M30x1.50 x 46mm Long |
| C3. | ZA23F22008 | [2] | HYD CONNECTOR | KOB1/2" PT - M30x1.50 x 43mm Long |
| C4. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| C4-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| C5. | ZD12P02400 | [4] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| C6. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
