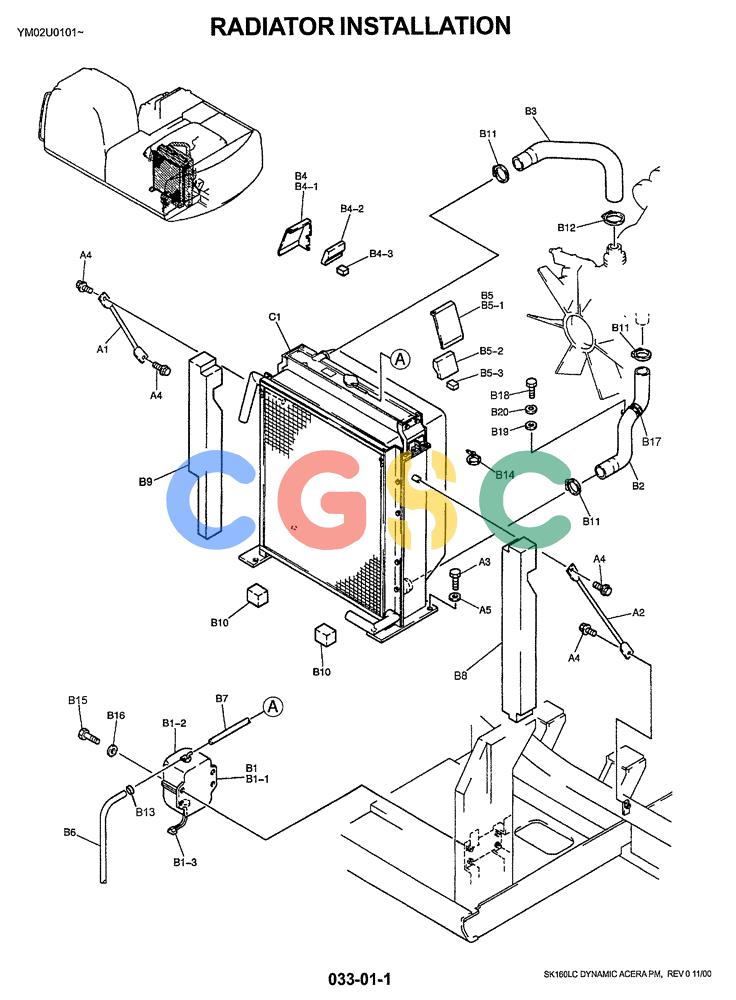

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-005) - RADIATOR INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
526 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM05P00005F1 | [1] | RADIATOR INSTAL | |
| A1. | YM05P01017P1 | [1] | STAY | |
| A2. | YM05P01018P1 | [1] | STAY | |
| A3. | ZS18C12035 | [4] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| A4. | ZM32C12025 | [4] | BOLT | KOBM12x1.75x25mm (Incls. Washer & Lockwasher) |
| A5. | ZW16H12000 | [4] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| . . | YM05P00001F1 | [1] | RADIATOR GROUP | |
| B1. | YN05P01041F1 | [1] | TANK | KOBASSY, WATER |
| B1-1. | YN05P01041S001 | [1] | TANK | KOB Superseded by part number: YN05P01041S1 |
| B1-2. | YN05P01041S002 | [1] | CAP ASSY. | KOB |
| B1-3. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| B2. | YM05P01003P1 | [1] | HOSE | KOBLower |
| B3. | YM05P01004P1 | [1] | HOSE | KOBUpper |
| B4. | YM05P01007F1 | [1] | PLATE ASSY | |
| B4-1. | NA | [1] | NOT SERVICED | FORPLATE |
| B4-2. | YM05P01009P1 | [1] | INSULATION( 10) | INSULATION( 10) |
| B4-3. | YM05P01011P1 | [1] | INSULATION( 10) | INSULATION( 10) |
| B5. | YM05P01008F1 | [1] | PLATE ASSY | |
| B5-1. | NA | [1] | NOT SERVICED | FORPLATE |
| B5-2. | YM05P01010P1 | [1] | INSULATION( 10) | INSULATION( 10) |
| B5-3. | YM05P01011P1 | [1] | INSULATION( 10) | INSULATION( 10) |
| B6. | HX11Y05060DX | [1] | TUBE,8mm ID x 600mm L | KOB |
| B8. | YM05P01013P1 | [1] | FOAM INSULATION | KOB |
| B9. | YM05P01016P1 | [1] | FOAM INSULATION | KOB |
| B10. | YM05P01012P1 | [2] | INSULATION | |
| B11. | ZC16X05800 | [3] | CLIP | KOBClamp, Hose -- Min 50 x Max 66mm |
| B12. | ZC16X07000 | [1] | CLIP | KOBClamp, Hose -- Min 60 x Max 81mm |
| B13. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
| B14. | PY01P01043D2 | [1] | CABLE TIE,4.60mm W x 202mm L | KOBWire Ties -- 160mm Long Superseded by part number: YT50C01100P1 |
| B15. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| B16. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| B17. | YW11P01010P1 | [1] | CLIP | KOBClamp -- Ø57x65mm Long |
| B18. | ZS18C10025 | [1] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| B19. | ZW16X10000 | [1] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| B20. | ZW26X10000 | [1] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| C1. | YM05P00003F1 | [1] | RADIATOR | KOB(See Figure 01-006) |
