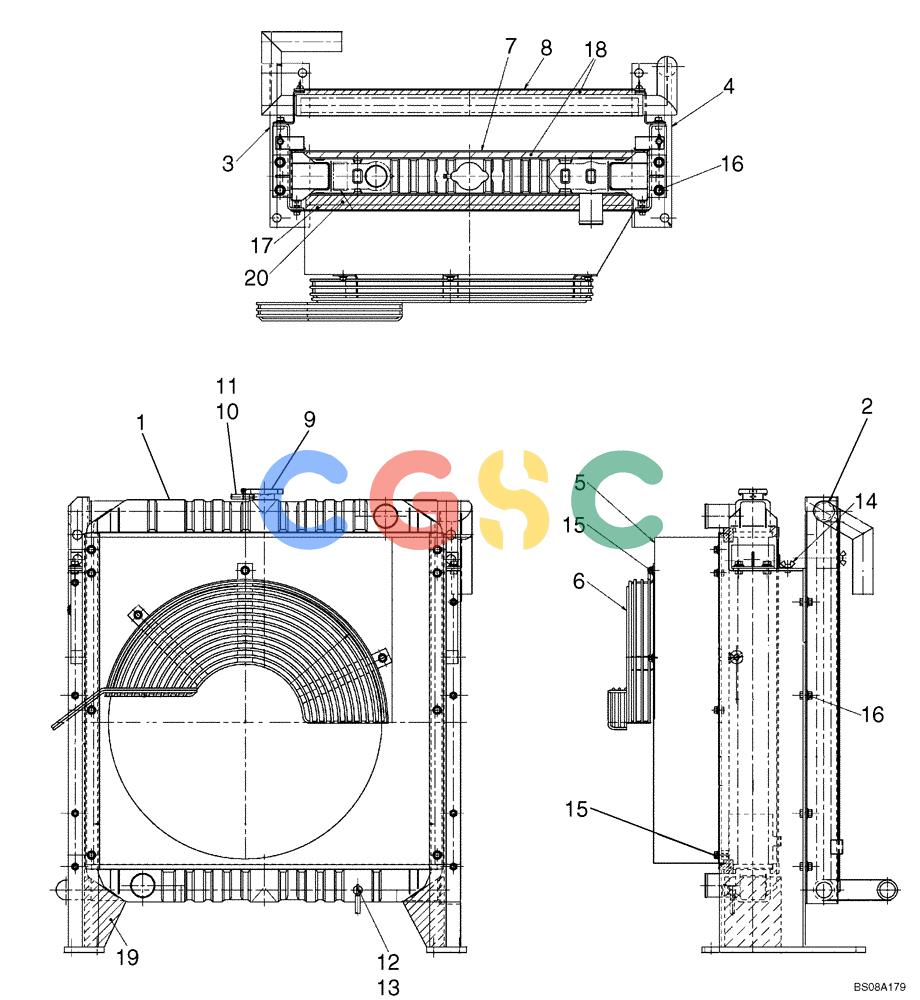

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-006) - RADIATOR ASSY, P/N YM05P00003F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
839 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM05P00003F1 | [1] | RADIATOR | KOBComplete |
| 1. | YM05P00003S001 | [1] | RADIATOR | KOB |
| 2. | YM05P00003S002 | [1] | OIL COOLER | KOB |
| 3. | YM05P00003S003 | [1] | Support | |
| 4. | YM05P00003S004 | [1] | Support | |
| 5. | YM05P00003S005 | [1] | Shroud, Fan | |
| 6. | YM05P01021P1 | [1] | Guard, Fan | |
| 7. | YM05P00003S007 | [1] | GUARD | KOB |
| 8. | YM05P00003S008 | [1] | Guard | |
| 9. | YN05P00010S006 | [1] | RADIATOR CAP | KOBRadiator Superseded by part number: YN05P00088S032 |
| 10. | 2452U255S5 | [1] | FLEXIBLE HOSE | KOBOver Flow |
| 11. | 2452U221S113 | [2] | CLIP | KOB Superseded by part number: 2452U267S8 |
| 12. | 2452U221S18 | [1] | DRAINCOCK/TAP SUPPLY | KOBCock, Drain |
| 13. | YM05P00003S013 | [1] | Hose, Drain | |
| 14. | 2452U221S4 | [4] | SCREW | KOB Superseded by part number: 2452U202S5 |
| 15. | PY05P00002S009 | [11] | BOLT | KOB Superseded by part number: ZM12C08020 |
| 16. | 2452U400S4 | [12] | BOLT | KOB Superseded by part number: ZM22C10025 |
| 17. | YM05P00003S017 | [2] | PACKING | KOB Superseded by part number: EZ05P00008S008 |
| 18. | YN05P00010S017 | [4] | PACKING | KOB |
| 19. | YM05P00003S019 | [2] | PACKING | KOB |
| 20. | YM05P00003S020 | [2] | PACKING | KOB |
