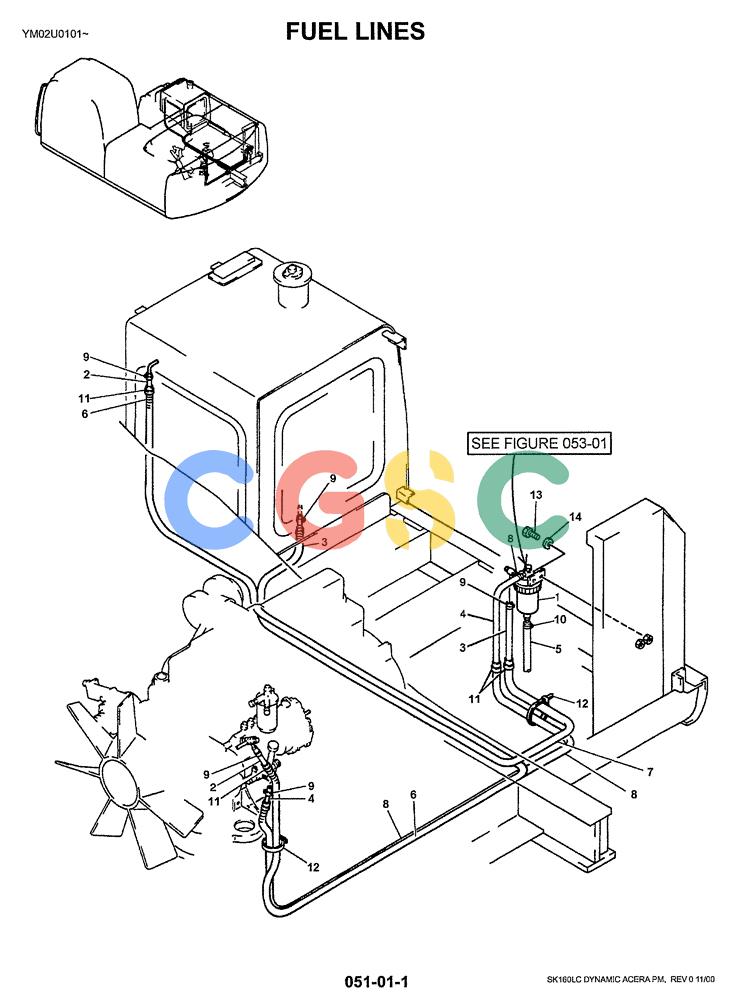

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-009) - FUEL LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
892 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM21P00001F1 | [1] | FUEL LINES | |
| 1. | 2446U180F2 | [1] | SEPARATOR | KOBFILTER (See P.053-01-1) |
| 2. | 2444R2492D320 | [1] | HOSE | KOB3200mm Long (126 in) |
| 3. | 2444R2492D270 | [1] | FLEXIBLE HOSE | KOB(L=2700mm) |
| 4. | 2444R2492D170 | [1] | HOSE | KOB(L=1700mm) |
| 5. | HX11Y06032DX | [1] | HOSE,10mm ID x 320mm | KOB320mm Long (12-19/32 in) |
| 6. | 2418Z1333D36 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 3100mm Length | KOBProtective Plastic |
| 7. | 2418Z1333D37 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 2600mm Length | KOBProtective Plastic |
| 8. | 2418Z1333D14 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1600mm Length | KOBProtective Plastic |
| 9. | ZC16X01800 | [6] | CLIP | KOBClamp, Hose -- Min 12 x Max 22mm |
| 10. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
| 11. | PY01P01043D2 | [6] | CABLE TIE,4.60mm W x 202mm L | KOBWire Ties -- 160mm Long Superseded by part number: YT50C01100P1 |
| 12. | PY01P01043D3 | [2] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 13. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 14. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
