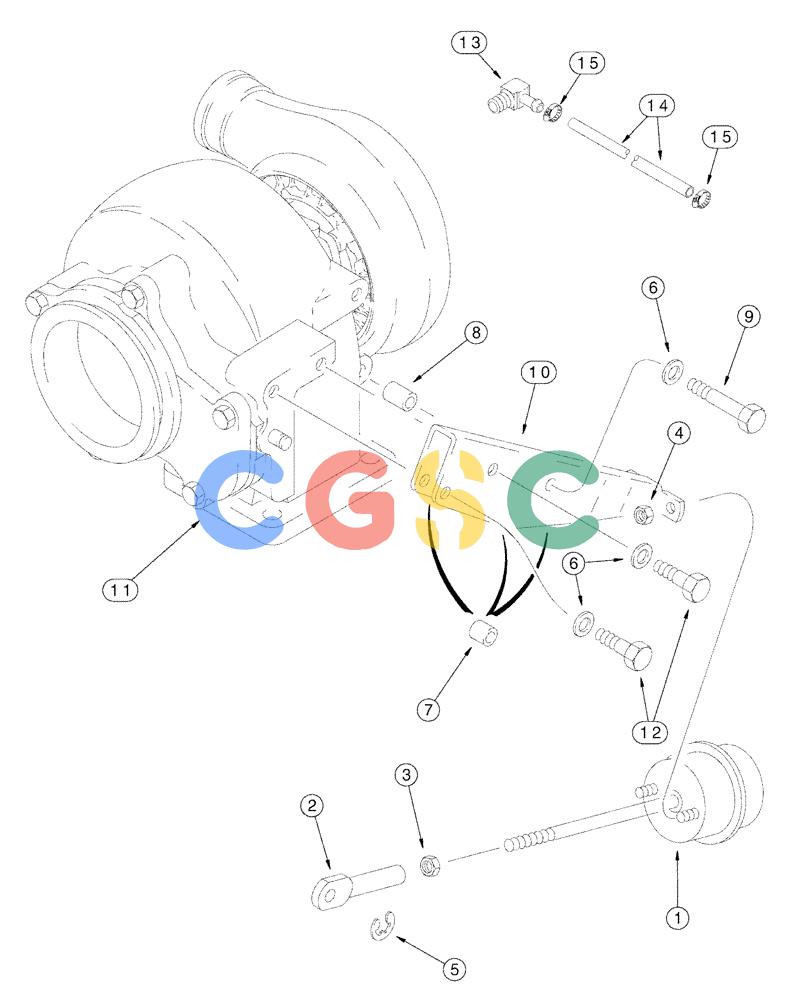

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (02-010) - WASTEGATE ACTUATOR (FLX3300B CASE ENGINE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
289 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . . |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Turbocharger Assembly
|
| 1. |
J533135
|
[1] |
ACTUATOR
|
CAS
Superseded by part number: J593678
|
| . . |
J533135C
|
[1] |
CORE-HYD CYLINDER
|
MKT
Return Number, ACTUATOR - for N.A. Only
|
| . . |
J580830C
|
[1] |
CORE-HYD CYLINDER
|
MKT
Return Number, ACTUATOR - for N.A. Only
|
| 2. |
J528177
|
[1] |
LINK
|
CAS
|
| 3. |
425-155
|
[1] |
JAM NUT,Jam, 5/16"-24, G5
|
CAS
Superseded by part number: 86637933
|
| 4. |
J528204
|
[2] |
LOCK NUT
|
CAS
Lock Superseded by part number: 86509309
|
| 5. |
J528221
|
[1] |
CIRCLIP
|
CAS
|
| 6. |
86624184
|
[3] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 7. |
J532195
|
[3] |
SPACER,9.38mm ID x 16.03mm OD x 13.7mm L
|
CAS
13.6 MM
|
| 8. |
J532196
|
[1] |
SPACER,9.38mm ID x 16.03mm OD x 19mm L
|
CAS
19 MM
|
| 9. |
43130
|
[1] |
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
|
NH
|
| 10. |
J532671
|
[1] |
BRACKET
|
CAS
|
| 12. |
412479
|
[2] |
BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8
|
NH
|
| 13. |
J528121
|
[1] |
ELBOW
|
CAS
|
| 14. |
A77918
|
[1] |
HOSE
|
CAS
Superseded by part number: 84358816
|
| 15. |
214-1704
|
[2] |
HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm
|
CAS
Superseded by part number: 86625022
|
