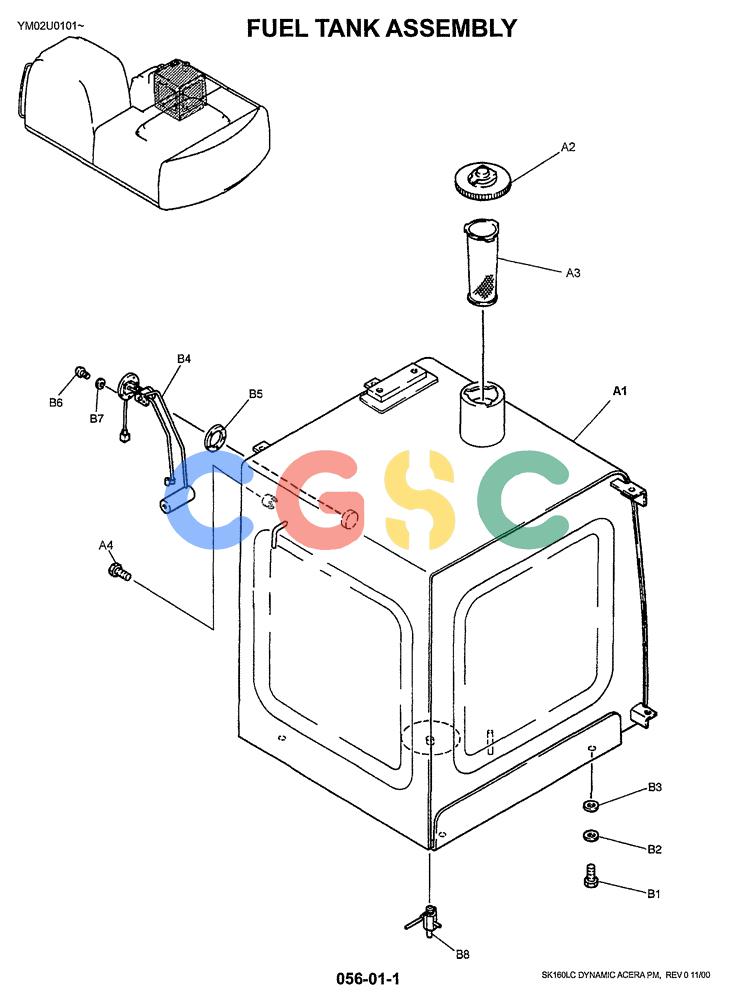

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-011) - FUEL TANK ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM20P00002F1 | [1] | FUEL TANK | KOB |
| A1. | YM20P00004P1 | [1] | TANK | KOB Superseded by part number: YM20P00004P2 |
| A2. | 2444R1047 | [1] | FILLER CAP | KOB |
| A3. | 2446R326 | [1] | FILTER STRAINER | KOB |
| A4. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| . . | YM20P00005F1 | [1] | TANK INSTAL, FUEL | |
| B1. | ZS13C16040 | [4] | SCREW | KOBM16x2.0x40mm |
| B2. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| B3. | LE33H01017D1 | [3] | SHIM,1.0mm Thk | KOB(1.0) |
| B4. | 2489U275 | [1] | LEVEL GAUGE CONTROL | KOBSENDING UNIT |
| B5. | 2418T9962 | [1] | PACKING | KOBID 41 x OD 68 x Th 2.0mm |
| B6. | ZS31C05012 | [5] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBM05x0.8x12mm |
| B7. | ZW26X05000 | [5] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| B8. | 2436R241F1 | [1] | COCK | KOB Superseded by part number: LC20P01028P1 |
