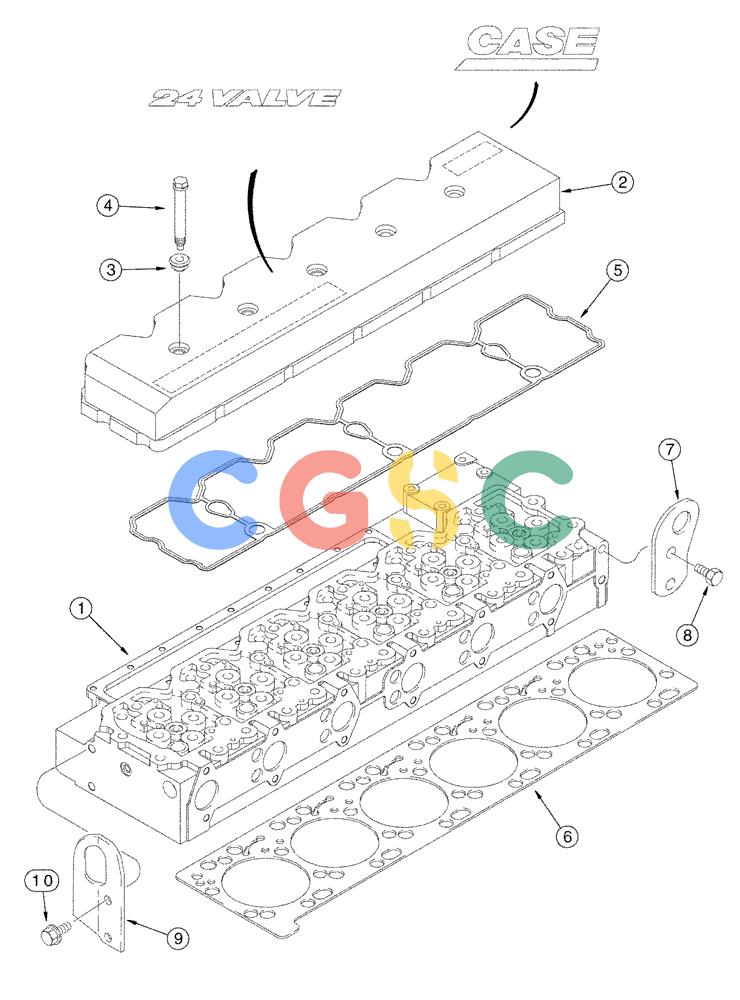

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (02-013) - CYLINDER HEAD - COVER (FLX3300B CASE ENGINE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
190 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Head, Cylinder
|
| 2. |
J944677
|
[1] |
VALVE COVER
|
CAS
Superseded by part number: J938445
|
| 3. |
J942659
|
[5] |
ISOLATOR
|
CAS
|
| 4. |
J943719
|
[5] |
SCREW,Hex Flg, M8 x 1.25 x 78.28mm, Cl 10.9
|
CAS
Flange Superseded by part number: A78024
|
| 5. |
J943303
|
[1] |
GASKET
|
CAS
Cover Superseded by part number: J939284
|
| 6. |
J943366
|
[1] |
CYLINDER HEAD GASKET,2.11mm Thk
|
CAS
|
| 7. |
J944239
|
[1] |
BRACKET
|
CAS
Front
|
| 8. |
300388
|
[2] |
BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 9. |
J944290
|
[1] |
BRACKET
|
CAS
Rear
|
| 10. |
9804266
|
[2] |
BOLT,Hex, M12 x 25mm, Cl 8.8, Full Thd
|
DUB
|
