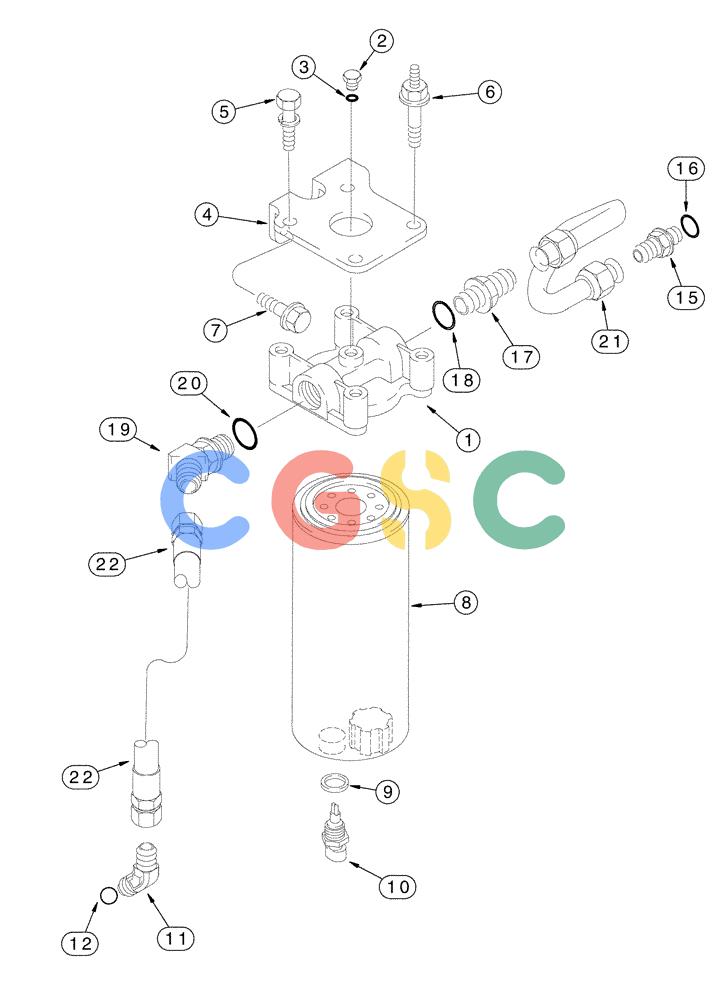

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (02-025) - FUEL FILTER & CONNECTIONS (FLX3300B CASE ENGINE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
694 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
J944987
|
[1] |
HEAD
|
CAS
Filter
|
| 2. |
233426A1
|
[1] |
PLUG,M10 x 1 ORB
|
CAS
|
| 3. |
84432614
|
[1] |
O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro
|
FAR
|
| 4. |
J944845
|
[1] |
BRACKET
|
CAS
|
| 5. |
A77546
|
[3] |
BOLT,Hex, 3/8" - 16 x 1.25"
|
CAS
Hex Washer, Special, 3/8"-16 x 1 1/4"
|
| 6. |
J944099
|
[1] |
STUD
|
CAS
|
| 7. |
86050286
|
[2] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| . . |
J800394
|
[1] |
FUEL FILTER
|
CAS
Kit, Filter Element Superseded by part number: 84557526
|
| 8. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Filter, Fuel
|
| 11. |
311171A1
|
[1] |
ELBOW
|
CAS
90º, 7/8-14 45º Fl x 3/4-16 ADJ. O-Ring Boss
|
| 12. |
237-8008
|
[1] |
O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro
|
CAS
Superseded by part number: 86637737
|
| 15. |
311187A1
|
[1] |
ADAPTER
|
CAS
Superseded by part number: 86507102
|
| 16. |
86637739
|
[1] |
O-RING,0.116" Thk x 0.924" ID, -912, Cl 8, 90 Duro
|
FAR
|
| 17. |
J606653
|
[1] |
ADAPTER
|
CAS
|
| 18. |
237-8010
|
[1] |
O-RING,0.097" Thk x 0.755" ID, -910, Cl 8, 90 Duro
|
CAS
Superseded by part number: 86637738
|
| 19. |
326380A1
|
[1] |
ELBOW
|
CAS
45º, 7/8-14 45º FL X O-Ring Boss
|
| 21. |
J943442
|
[1] |
FUEL TUBE,0.625" OD
|
CAS
|
| 22. |
J944988
|
[1] |
FUEL HOSE,12.00"
|
CAS
|
