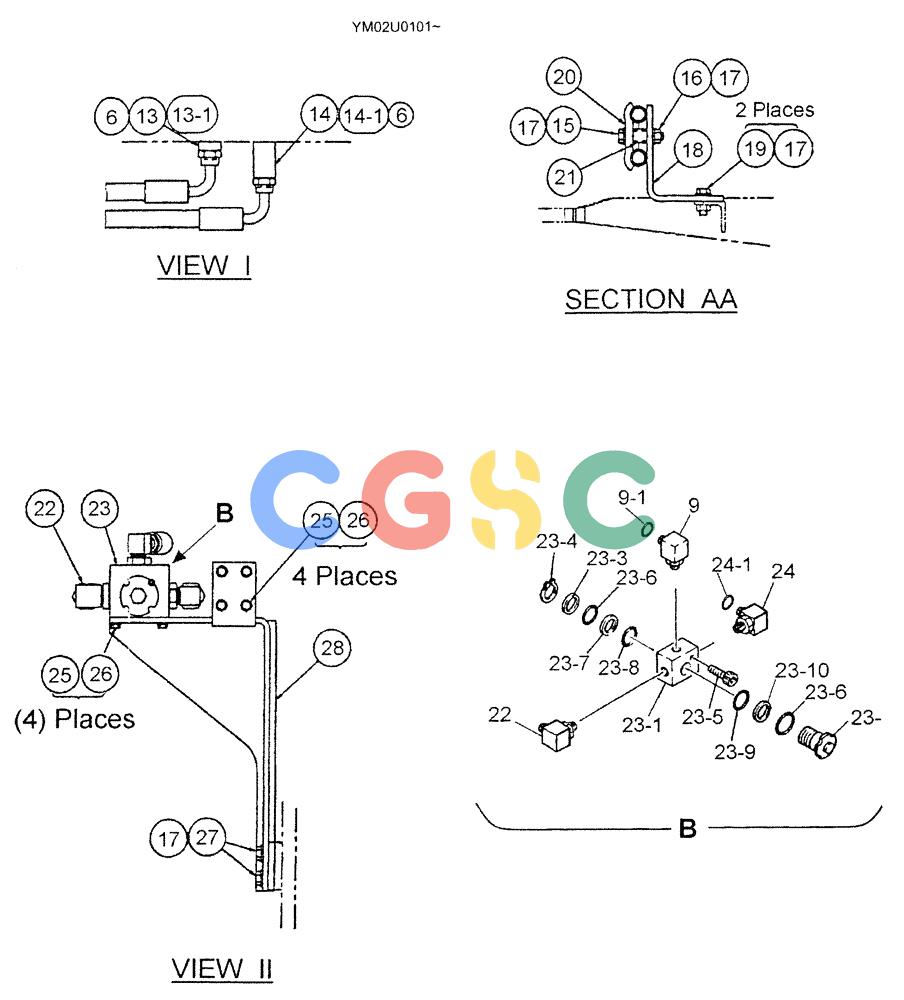

| . . | YM03H00004F1 | [1] | HYD LINES, UPPER | |
| 1. | 2444Z3722D4 | [1] | HOSE | KOB(1" PF) 800mm Long (31-1/2 in) |
| 2. | ZX30H10058 | [1] | HOSE | KOB(1-14UNS, L=580mm) |
| 3. | ZX30H10066 | [1] | HOSE | KOB(1-14UNS, L=660mm) |
| 4. | YM03H01016P1 | [1] | TUBE | KOB(1 3/16- 12UN) |
| 5. | YM03H01015P1 | [1] | TUBE | KOB(1 3/16- 12UN) |
| 6. | ZD12A01600 | [4] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 7. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 8. | YN03H01489P1 | [1] | BLOCK | KOB(PF1) |
| 9. | ZG33F10012 | [1] | 90 ELBOW,1"-14 UNS x PF 3/4" | KOB90° -- 1" -14UNS - PF 3/4 (Incls. O-Ring ZD12P02400) |
| 9-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 10. | HG33F10016G1 | [1] | ELBOW | KOB90° -- (Incls. O-Ring ZD12P02900) 56mm Long |
| 11. | HG23H12016G1 | [1] | HYD CONNECTOR | KOB1 3/16"-12UN-PF1" Superseded by part number: YW03H01227P1 |
| 11-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 12. | 2444Z2760 | [1] | HYD CONNECTOR | KOB1" PFx56.5mm Long (Incls. O-Ring ZD12P02900) |
| 13. | ZG23F10012 | [1] | HYD CONNECTOR | KOB5/8"-3/4" PT (Incls. O-Ring ZD12P02400) |
| 13-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 14. | HG24F10012G3 | [1] | HYD CONNECTOR | KOB1"-14UNS - 3/4"PT x 90mm Long (Incls. O-Ring ZD12P02400) |
| 14-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 15. | ZS18C12065 | [1] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 16. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 17. | ZW16H12000 | [6] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 18. | YM03H01013P1 | [1] | SUPPORT | KOB |
| 19. | ZS18C12035 | [2] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 20. | 2432T2245 | [1] | CLAMP | KOB |
| 21. | YN02B01031D2 | [1] | SPACER | KOB |
| 22. | 2444R399D7 | [1] | ELBOW | KOB(PF1-PF3/4) |
| 23. | 24100P1005F1 | [1] | VALVE | KOBSELECTOR Superseded by part number: 24100P1005F3 |
| 23-1. | 2436P229 | [1] | VALVE BODY | KOB |
| 23-2. | 2436T303 | [1] | VALVE | KOB |
| 23-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 23-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 23-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 23-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 23-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 23-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 23-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 23-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 24. | HG33H12012G1 | [1] | HYD CONNECTOR | KOBELBOW (1 3/16-12UN-PF3/4) |
| 24-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 25. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 26. | ZW16H08000 | [8] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 27. | ZS18C12030 | [2] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 28. | YM03H01014P1 | [1] | BRACKET | KOB |
| 29. | ZX20H12105 | [2] | HOSE | KOB1 3/16-12UN, 1050mm Long (41-21/64 in) |
| 30. | 2414Z199D100 | [4] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
