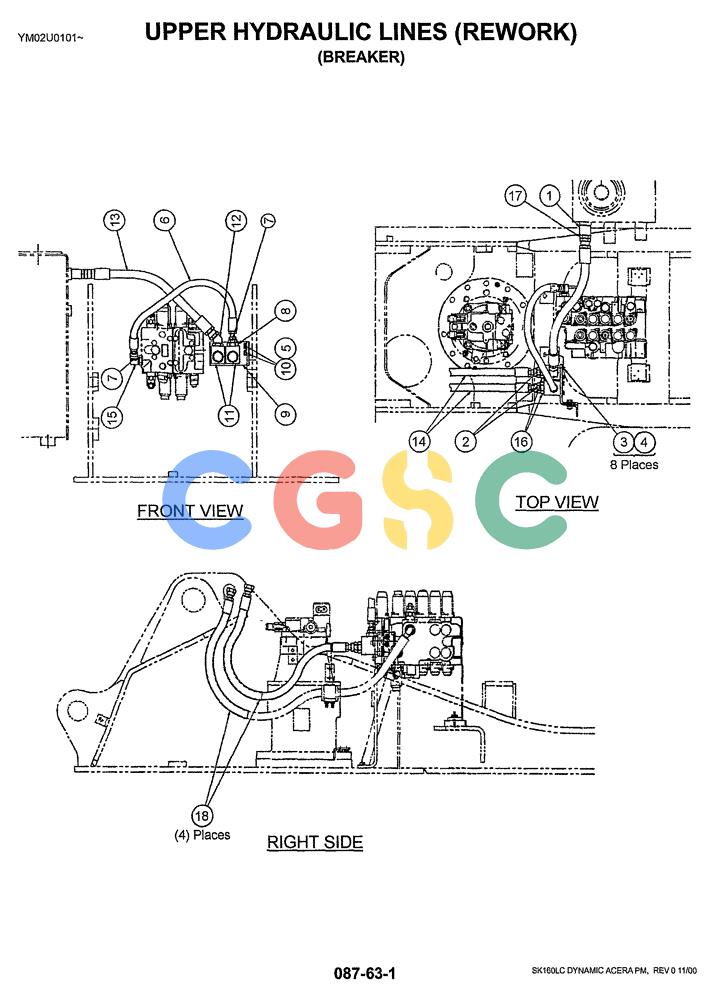

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-022) - UPPER HYDRAULIC LINES (REWORK) (BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM03H00003F1 | [1] | HYD LINES, UPPER | |
| 1. | HH25R16016G1 | [1] | HYD CONNECTOR | KOB(PF1,L=42mm) |
| 1-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 2. | ZD12A01800 | [2] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 3. | ZS18C08020 | [8] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 4. | ZW16H08000 | [8] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 5. | ZW16H12000 | [2] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 6. | ZX20H10090 | [1] | HOSE | KOB1-14UNS, 900mm Long (35-7/16 in) |
| 7. | ZD12A01600 | [2] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| 8. | LC03H01032P1 | [1] | HYD CONNECTOR | KOB(PF1-1 3/16-12UN) |
| 8-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 9. | YM03H01022P1 | [1] | BRACKET | KOB |
| 10. | ZS18C12035 | [2] | SCREW,Hex, M12 x 35mm | KOBM12x1.75x35mm |
| 11. | YN03H01489P1 | [2] | BLOCK | KOB(PF1) |
| 12. | 2444T3395 | [1] | ELBOW | KOB(PF1) |
| 13. | 2444Z3722D4 | [1] | HOSE | KOB(1" PF) 800mm Long (31-1/2 in) |
| 14. | ZX20H12105 | [2] | HOSE | KOB1 3/16-12UN, 1050mm Long (41-21/64 in) |
| 15. | ZG33F10012 | [1] | 90 ELBOW,1"-14 UNS x PF 3/4" | KOB90° -- 1" -14UNS - PF 3/4 (Incls. O-Ring ZD12P02400) |
| 15-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 16. | ZG23F12016 | [2] | HYD CONNECTOR | KOB1 3/16" 12UN-1" PT x 48mm Long (Incls. O-Ring 237-6016) |
| 16-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 17. | 2444Z2760 | [1] | HYD CONNECTOR | KOB1" PFx56.5mm Long (Incls. O-Ring ZD12P02900) |
| 18. | 2414Z199D100 | [4] | PROTECTIVE SLEEVE | KOBHose -- 1000mm Long (39-3/8 in) |
