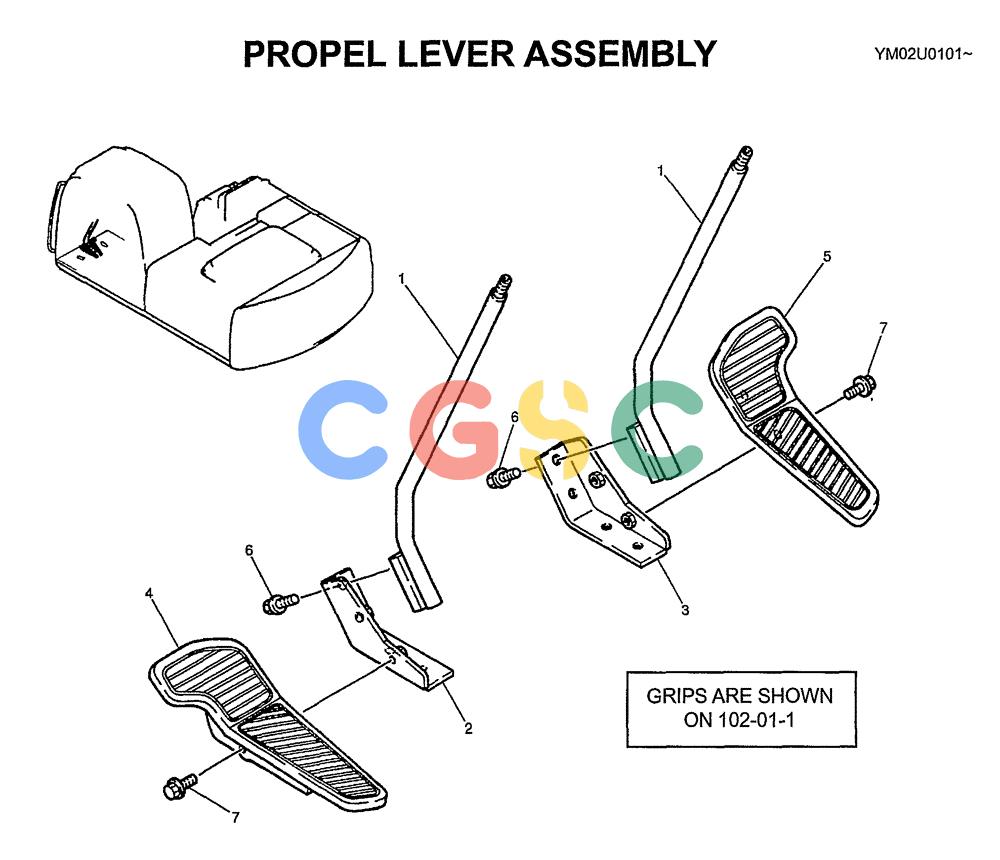

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-026) - PROPEL LEVER ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
116 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN50M00004F1 | [1] | LEVER | KOB |
| 1. | YN50M01012P1 | [2] | LEVER | KOB |
| 2. | YV50M01010P1 | [1] | SUPPORT | KOB |
| 3. | YV50M01009P1 | [1] | SUPPORT | KOB |
| 4. | YV55M01001P1 | [1] | PEDAL | KOB |
| 5. | YV55M01002P1 | [1] | PEDAL | KOB |
| 6. | ZM27C08020 | [4] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| 7. | ZM27C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
