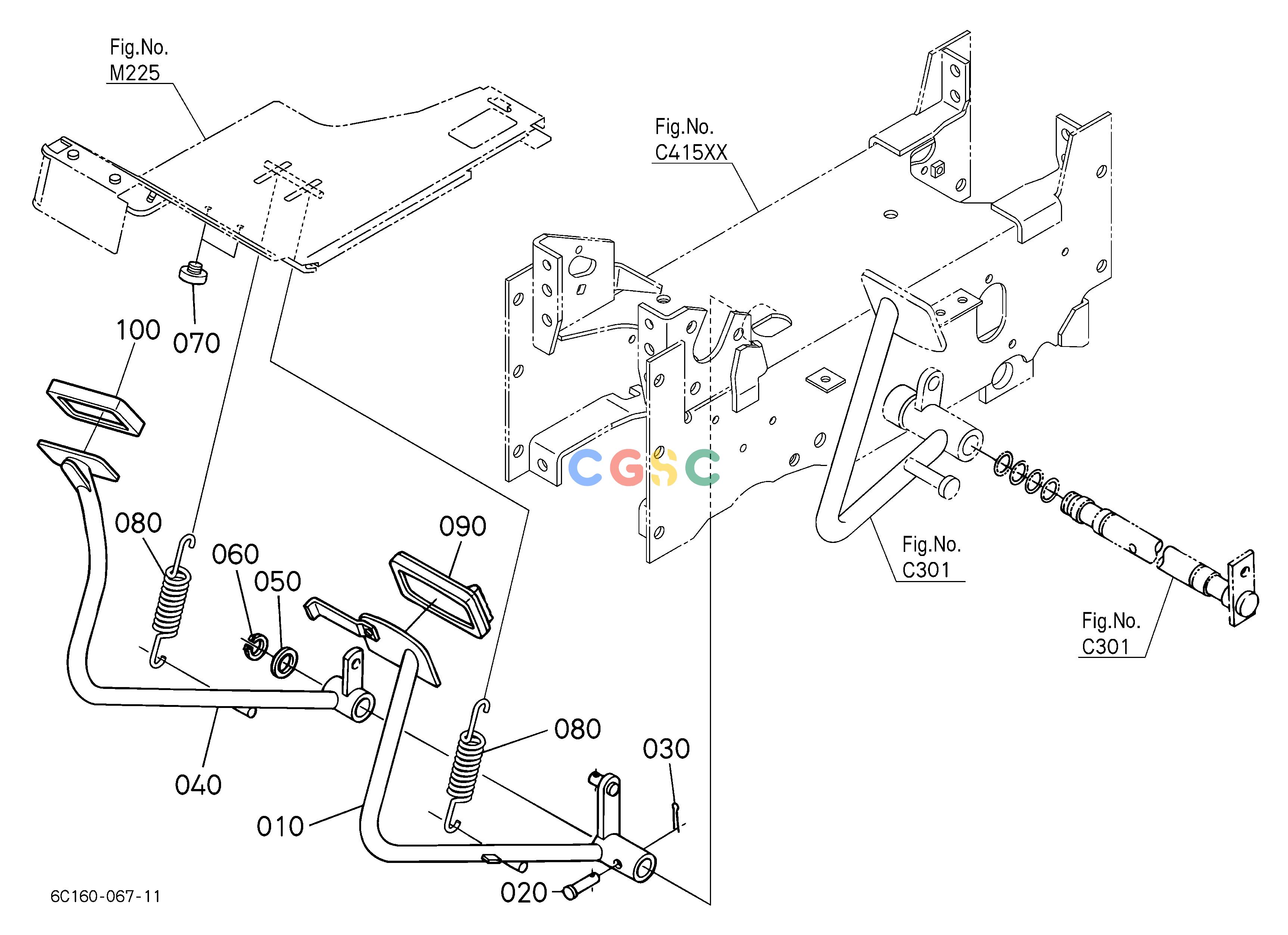

久保田零件查询F20102 BRAKE PEDAL BRAKEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
849 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04042325
|
[1] |
PEDAL,BRAKE LH
|
3.8500(lbs); 1.750
|
| 020. |
0512250840
|
[1] |
PIN,JOINT
|
0.0374(lbs); 0.017
|
| 030. |
0551150218
|
[1] |
PIN,SPLIT
|
0.0022(lbs); 0.001
|
| 040. |
6C12042330
|
[1] |
PEDAL,BRAKE RH
|
3.7400(lbs); 1.700
|
| 050. |
6659143233
|
[1] |
COLLAR
|
0.0088(lbs); 0.004
|
| 060. |
0461200240
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0044(lbs); 0.002
|
| 070. |
6C04042342
|
[2] |
CUSHION
|
0.0110(lbs); 0.005
|
| 080. |
6662143270
|
[2] |
SPRING(BRAKE RETURN)
|
0.0880(lbs); 0.040
|
| 090. |
3741044121
|
[1] |
COVER,PEDAL
|
0.0000(lbs); 0.000
|
| 090. |
T205044120
|
[1] |
COVER,PEDAL
|
0.1540(lbs); 0.070
|
| 100. |
6602142830
|
[1] |
COVER,PEDAL
|
0.0550(lbs); 0.025
|
