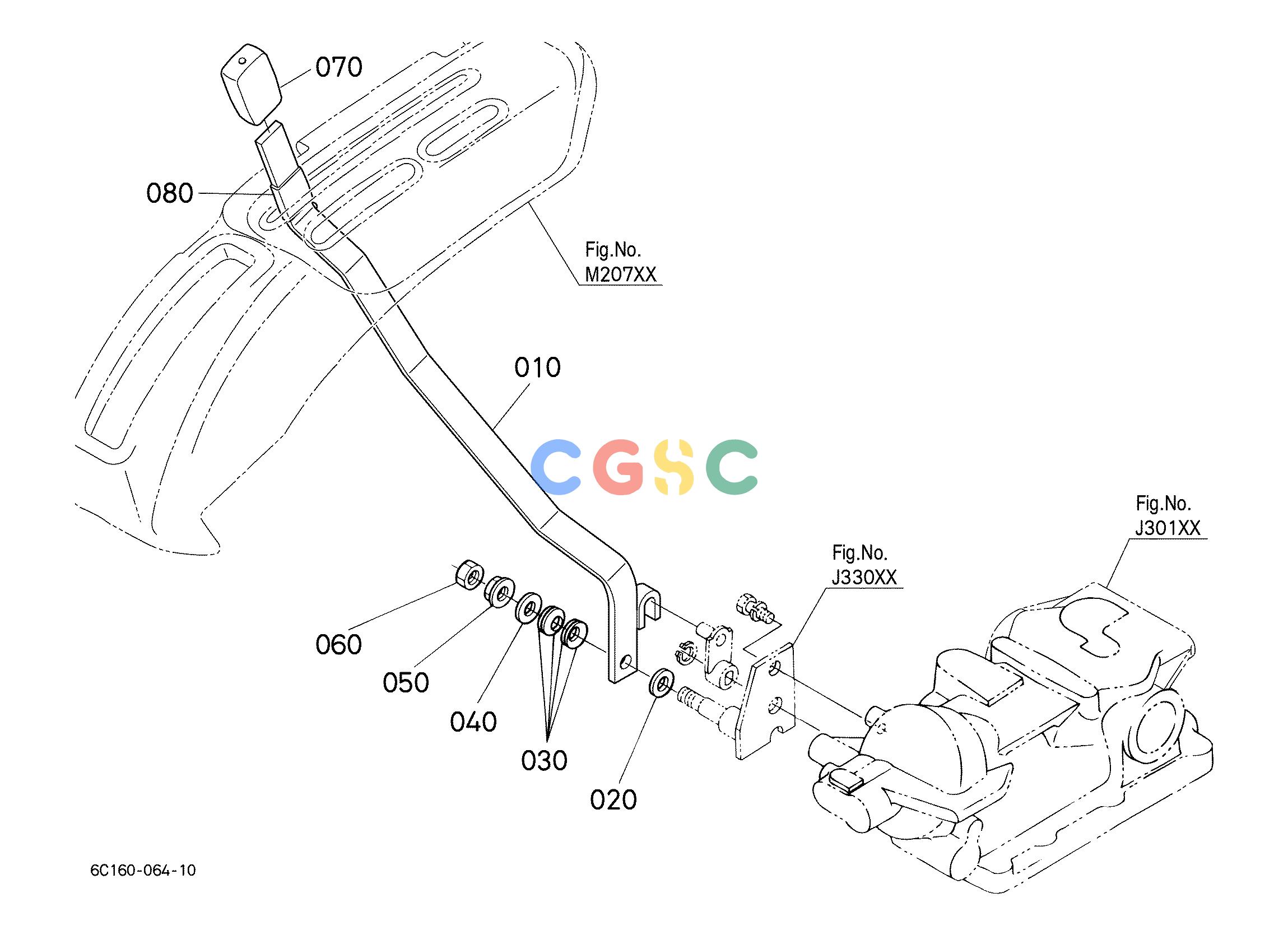

久保田零件查询F14302 HYDRAULIC CONTROL LEVER PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
586 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04036284
|
[1] |
LEVER,HYD.CONTROL
|
1.2100(lbs); 0.550
|
| 020. |
6C04036920
|
[1] |
COLLAR
|
0.0044(lbs); 0.002
|
| 030. |
6C04036880
|
[4] |
SPRING,PLATE
|
0.0066(lbs); 0.003
|
| 040. |
0401550080
|
[1] |
WASHER,PLAIN
|
0.0220(lbs); 0.010
|
| 050. |
0212150080
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
| 060. |
0211250080
|
[1] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 070. |
3139536880
|
[1] |
GRIP,LEVER
|
0.0880(lbs); 0.040
|
| 080. |
6C04042760
|
[1] |
CUSHION
|
0.0066(lbs); 0.003
|
