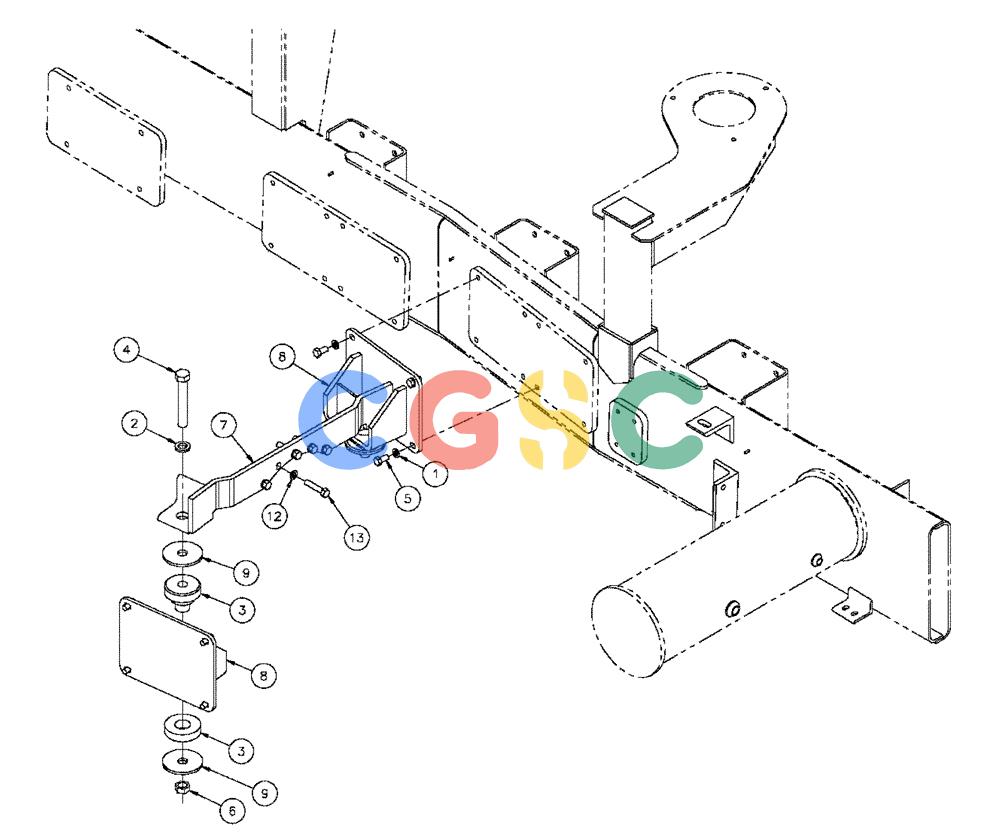

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (03-003) - TRANSMISSION MOUNTING (FLX3300B CAT ENGINE & FLX3330B) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87529240
|
[8] |
WASHER,0.53" ID x 1.06" OD x 0.13" Thk
|
BN
0.531 x 1.062 x 0.134 HTS DOR HDN
|
| 2. |
87310608
|
[2] |
WASHER,22mm ID x 44mm OD x 5mm Thk
|
BN
22 x 44 x 5 mm, HDN, DOR
|
| 3. |
BN300012
|
[2] |
DAMPER
|
BN
Vibration, Engine
|
| 4. |
814-22140
|
[2] |
BOLT,Hex, M22 x 140mm, Cl 8.8
|
BN
M22-2.5 X 140, HH, 10.9
|
| 5. |
BN300367
|
[8] |
BOLT
|
BN
1/2-20 X 1, HH, G8
|
| 6. |
86729942
|
[2] |
NUT,M22 x 2.5, Cl 8
|
PA
|
| 7. |
BN315222
|
[1] |
MOUNTING PLATE
|
BN
|
| 8. |
BN301983
|
[2] |
SUPPORT
|
BN
Rear Eng Frame
|
| 9. |
BN302284
|
[4] |
WASHER,23.88mm ID x 98.55mm OD x 6.35mm Thk
|
BN
Rebound, 3.88 od x .94 id x .25
|
| 12. |
BN300499
|
[5] |
WASHER,M10, 10.9
|
BN
Superseded by part number: 896-11010
|
| 13. |
BN301350
|
[5] |
BOLT
|
BN
M10-1.5 X 190, HH, 10.9 Superseded by part number: 814-10190
|
