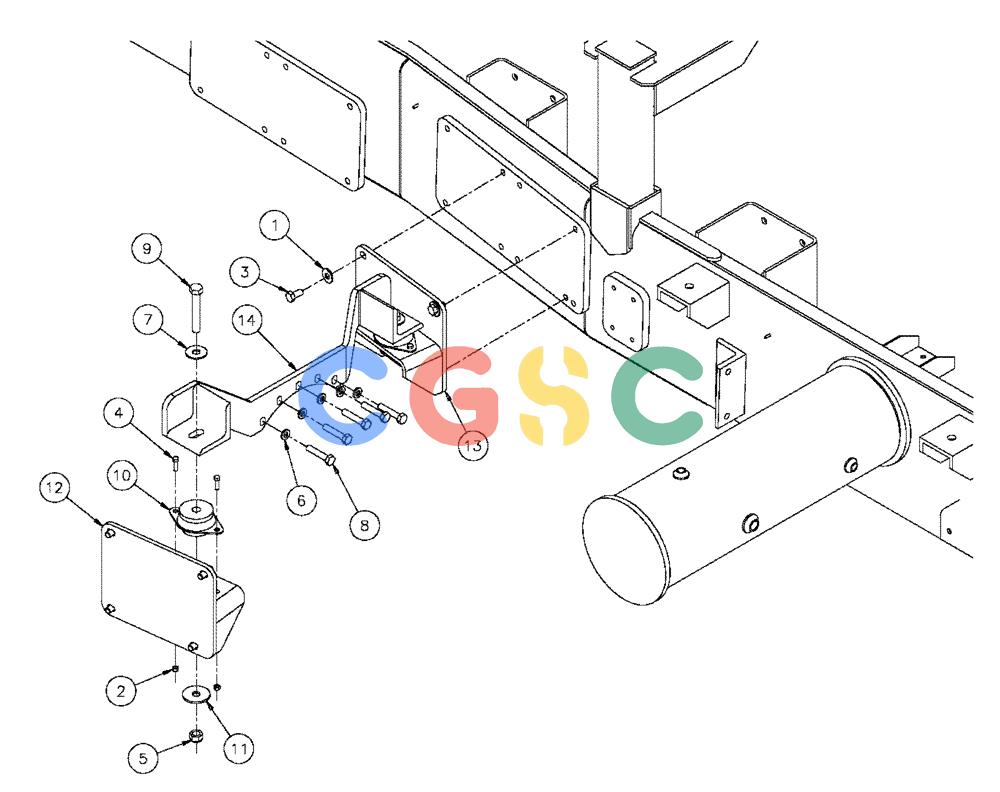

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (03-004) - TRANSMISSION MOUNTING (FLX3300B CASE ENGINE) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
813 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87529240
|
[8] |
WASHER,0.53" ID x 1.06" OD x 0.13" Thk
|
BN
0.531 x 1.062 x 0.134 HTS DOR HDN
|
| 2. |
BN304419
|
[4] |
NUT
|
BN
M10-1.5, NLN, 10.9 Superseded by part number: 100037
|
| 3. |
BN300367
|
[8] |
BOLT
|
BN
1/2-20 X 1, HH, G8
|
| 4. |
BN300389
|
[4] |
BOLT
|
BN
Hex, M12 x 35, 8.8, Full Thd
|
| 5. |
832-46416
|
[2] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 6. |
BN300500
|
[5] |
WASHER,M12, 10.9
|
BN
Superseded by part number: 86625255
|
| 7. |
BN300501
|
[2] |
WASHER
|
BN
M16, FW, 10.9 Superseded by part number: 896-15016
|
| 8. |
BN301356
|
[5] |
BOLT
|
BN
M12-1.75 X 60, HH, 10.9 Superseded by part number: 9706693
|
| 9. |
BN302765
|
[2] |
BOLT
|
BN
M16-2 X 100, HH, 10.9 Superseded by part number: 86541970
|
| 10. |
BN306728
|
[2] |
ENGINE MOUNT
|
BN
|
| 11. |
BN308164
|
[2] |
WASHER
|
BN
Rebound
|
| 12. |
BN314619
|
[1] |
MOUNTING PLATE
|
BN
Transmission/Frame, RS
|
| 13. |
BN314620
|
[1] |
MOUNTING PLATE
|
BN
Transmission/Frame, CS
|
| 14. |
BN317687
|
[1] |
MOUNTING PLATE
|
BN
Rear Transmission
|
