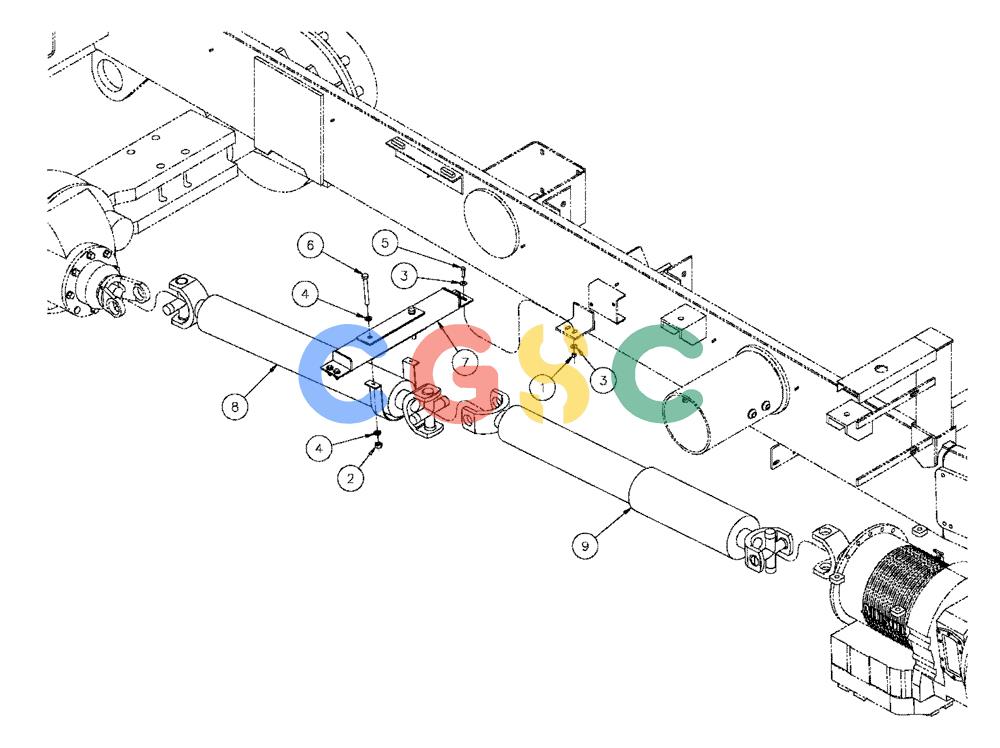

凯斯零件查询(FLX3330B) - FLOATER (12/99-9/02) (03-005) - DRIVELINE GROUP (FLX3300B CAT ENGINE & FLX3330B) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
229 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN304419
|
[4] |
NUT
|
BN
M10-1.5, NLN, 10.9 Superseded by part number: 100037
|
| 2. |
100038
|
[2] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 3. |
BN300499
|
[8] |
WASHER,M10, 10.9
|
BN
Superseded by part number: 896-11010
|
| 4. |
BN300500
|
[4] |
WASHER,M12, 10.9
|
BN
Superseded by part number: 86625255
|
| 5. |
86624978
|
[4] |
BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd
|
ZED
|
| 6. |
86508622
|
[2] |
BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9
|
POL
|
| 7. |
BN303064
|
[1] |
HANGER
|
BN
Driveline
|
| . . |
BN303065
|
[1] |
TUBE
|
BN
Driveline Brkt
|
| . . |
BN303066
|
[2] |
BRACKET, SUPPORTING
|
BN
Driveline
|
| . . |
BN303067
|
[2] |
BRACKET, SUPPORTING
|
BN
Driveline
|
| 8. |
BN313908
|
[1] |
DRIVE SHAFT
|
BN
Solid With Hanger
|
| . . |
BN2294170
|
[1] |
U-JOINT SPIDER
|
BN
|
| . . |
BN307686
|
[1] |
HANGER
|
BN
(1710 HD)
|
| . . |
BN307687
|
[1] |
YOKE
|
BN
End (1710 HD)
|
| . . |
BN307688
|
[1] |
WASHER
|
BN
Superseded by part number: 76036116
|
| . . |
BN307689
|
[1] |
NUT
|
BN
(1710 HD)
|
| 9. |
BN315238
|
[1] |
DRIVEN SHAFT
|
BN
1710 HD Slip 61.5
|
