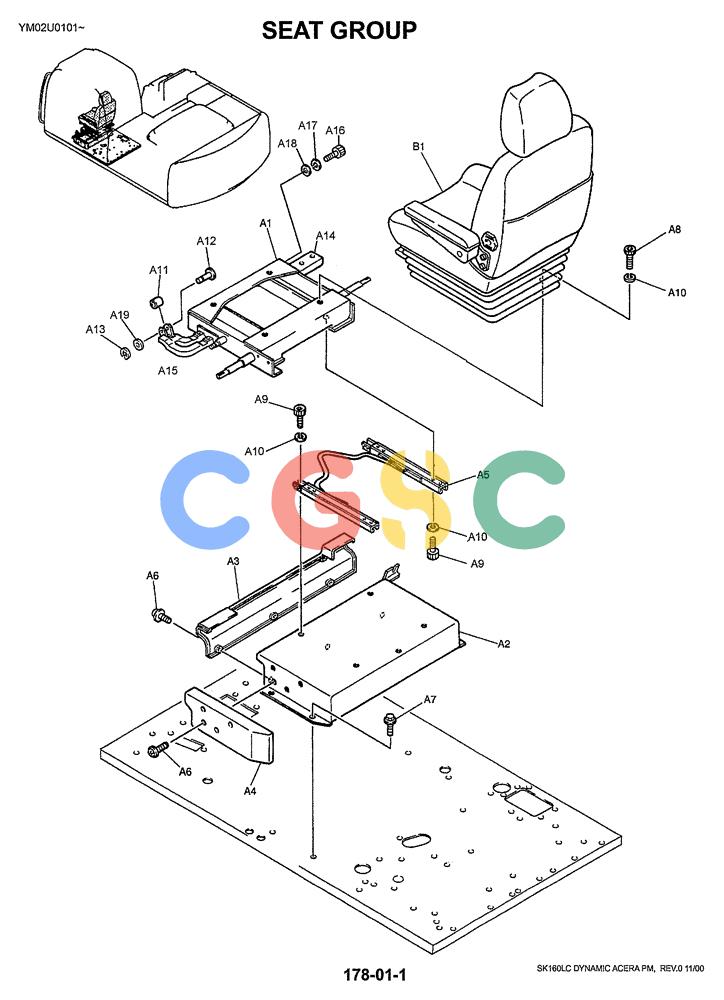

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-044) - SEAT GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
416 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN25M00023F1 | [1] | SEAT ACCESSORY | KOBGROUP |
| A1. | YN25M01076P1 | [1] | SUPPORT | KOB Superseded by part number: YN25M01079P1 |
| A2. | YN25M01070P1 | [1] | SUPPORT | KOB |
| A3. | YN25M01055P1 | [1] | COVER | KOB |
| A4. | YN25M01053P1 | [1] | COVER | KOB |
| A5. | YN25M01074F1 | [1] | RAIL ASSY. | KOB |
| A6. | ZM46C06016 | [9] | SCREW | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| A7. | ZM27C10025 | [4] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| A8. | ZS28C08014 | [4] | CAP,Hex Socket Head, M8 x 14mm | KOBM08x1.25x14mm |
| A9. | ZS28C08020 | [8] | SCREW,Hex Socket Head, M8 x 20mm | KOBM08x1.25x20mm |
| A10. | ZW26K08000 | [12] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| A11. | YT03M01066P1 | [1] | ROLLER,12.7mm OD x 19mm L | KOB |
| A12. | YT03M01065P1 | [1] | PIN | KOBOD 8.5 x 34.9mm Long |
| A13. | ZR36X00700 | [1] | RING | KOBE-Ring -- Shaft 07mm x OD 14mm |
| A14. | YN25M01068P1 | [1] | BRACKET | KOB |
| A15. | YN25M01075P1 | [1] | SUPPORT | KOB Superseded by part number: YN25M01078P1 |
| A16. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| A17. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A18. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| A19. | ZW16X08000 | [1] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| B1. | LC25M00001F2 | [1] | DRIVER SEAT | KOBSEE P. 180-01-1 |
