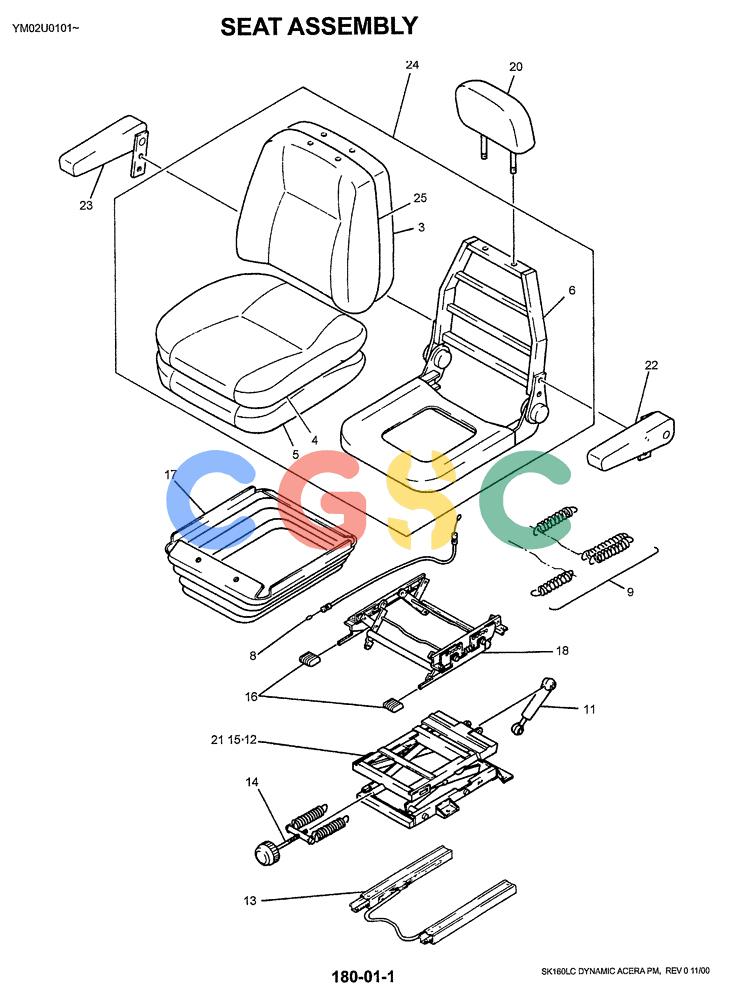

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-045) - SEAT ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
967 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC25M00001F2 | [1] | DRIVER SEAT | KOB |
| 3. | LC25M00001S003 | [1] | SET OF PARTS | KOBPAD KIT |
| 4. | YN25M00015S004 | [1] | SEAT COVER | KOB |
| 5. | LC25M00001S005 | [1] | SEAT CUSHION | KOB |
| 6. | LC25M00001S006 | [1] | FRAME | KOB |
| 8. | YN25MU0001S007 | [1] | CABLE | KOB Superseded by part number: GG25M00001S007 |
| 9. | LC25M00001S009 | [1] | SPRING | KOB |
| 11. | 2448U167S15 | [1] | DAMPER | KOB |
| 12. | 2448U168S11 | [1] | SPRING | KOB |
| 13. | 2448U168S12 | [1] | RAIL ASSY. | KOB |
| 14. | 2448U167S12 | [1] | ADJUSTER | KOB |
| 15. | 2448U167S16 | [1] | STOP | KOB |
| 16. | YN25M00008S014 | [1] | HANDLE | KOBADJUSTER |
| 17. | LC25M00001S017 | [1] | COVER | KOB |
| 18. | LC25M00001S018 | [1] | ADJUSTER | KOB |
| 19. | LC25M00005S018 | [1] | HANDLE | KOB |
| 20. | LC25M00001S020 | [1] | SUPPORT | KOB |
| 21. | 2448U167S18 | [1] | KIT | KOB |
| 22. | YN25M00015S010 | [1] | ARMREST | KOBSUPPORT |
| 23. | YN25M00015S011 | [1] | ARMREST | KOBSUPPORT |
| 24. | LC25M00001S024 | [1] | SEAT | KOB |
| 25. | LC25M00001S025 | [1] | DRIVER'S SEAT COVER | KOB |
