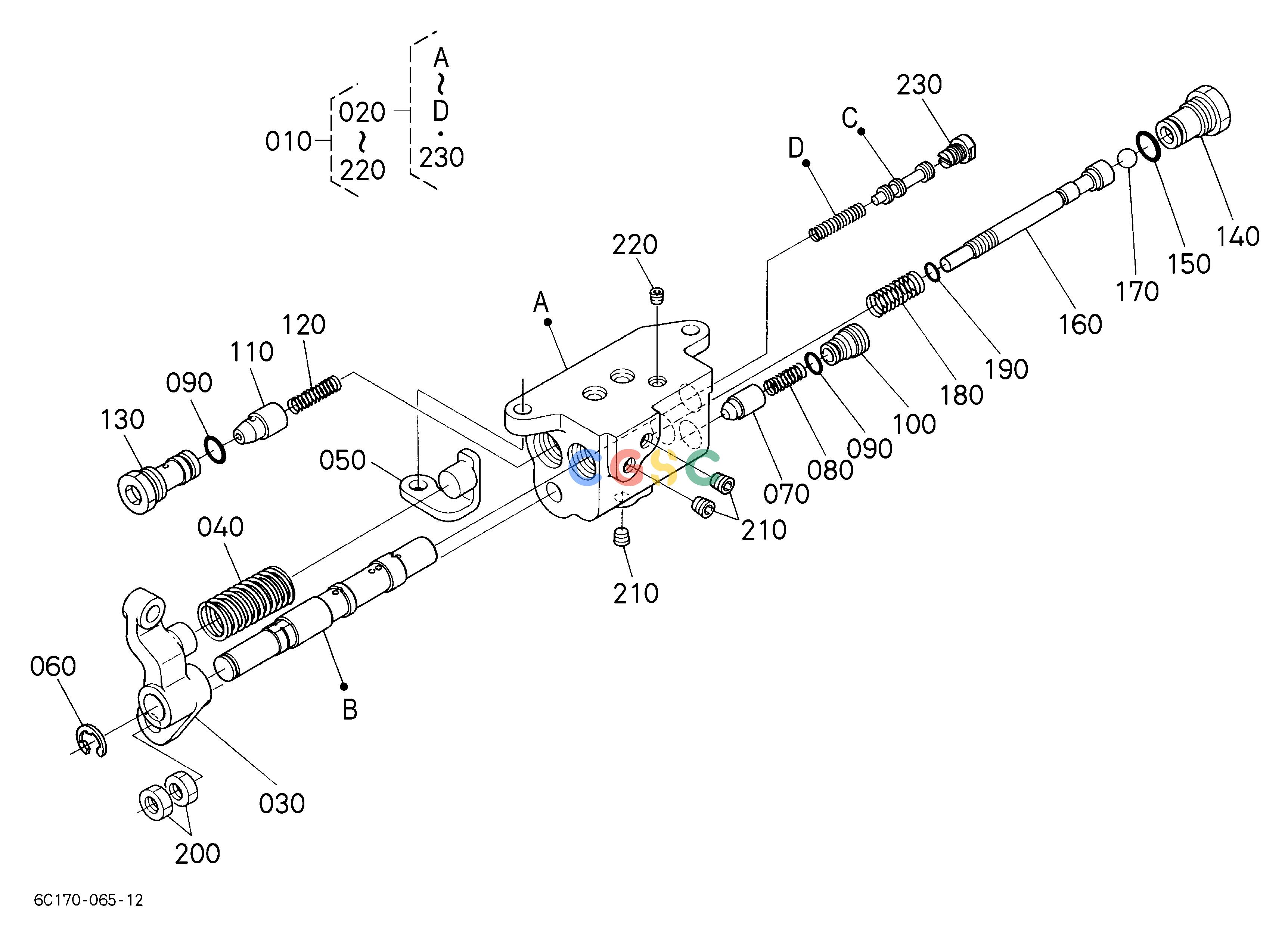

久保田零件查询J41002 CONTROL VALVE [COMPONENT PARTS] ## S.No.;<=33820 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07036202
|
[1] |
ASSY VALVE,CONTROL
|
2.9920(lbs); 1.360
|
| 020. |
6C07036600
|
[1] |
ASSY BODY-SPOOL
|
2.3980(lbs); 1.090
|
| 030. |
6C04036652
|
[1] |
LEVER
|
0.0858(lbs); 0.039
|
| 040. |
6C04036661
|
[1] |
SPRING,RETURN
|
0.0000(lbs); 0.000
|
| 050. |
6C04036270
|
[1] |
HOLDER,SPRING
|
0.0550(lbs); 0.025
|
| 060. |
0461350090
|
[1] |
CIR-CLIP,EXTERNAL
|
0.0022(lbs); 0.001
|
| 070. |
6C04036670
|
[1] |
POPPET
|
0.0264(lbs); 0.012
|
| 080. |
6C04036680
|
[1] |
SPRING
|
0.0022(lbs); 0.001
|
| 090. |
0481700090
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 100. |
6A10036660
|
[1] |
PLUG
|
0.0330(lbs); 0.015
|
| 110. |
4810038320
|
[1] |
POPPET
|
0.0308(lbs); 0.014
|
| 120. |
4810038330
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 130. |
6A10036670
|
[1] |
PLUG
|
0.0594(lbs); 0.027
|
| 140. |
6A10036680
|
[1] |
PLUG
|
0.0924(lbs); 0.042
|
| 150. |
0481706100
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 160. |
6C07036690
|
[1] |
POPPET
|
0.0814(lbs); 0.037
|
| 170. |
0771500803
|
[1] |
BALL
|
0.0044(lbs); 0.002
|
| 180. |
6A10036710
|
[1] |
SPRING
|
0.0220(lbs); 0.010
|
| 190. |
0481600050
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 200. |
0211250080
|
[2] |
HEX.NUT
|
0.0066(lbs); 0.003
|
| 210. |
3270136150
|
[3] |
PLUG
|
0.0110(lbs); 0.005
|
| 220. |
3242067380
|
[1] |
PLUG
|
0.0110(lbs); 0.005
|
| 230. |
6C07036741
|
[1] |
PLUG
|
0.0000(lbs); 0.000
|
