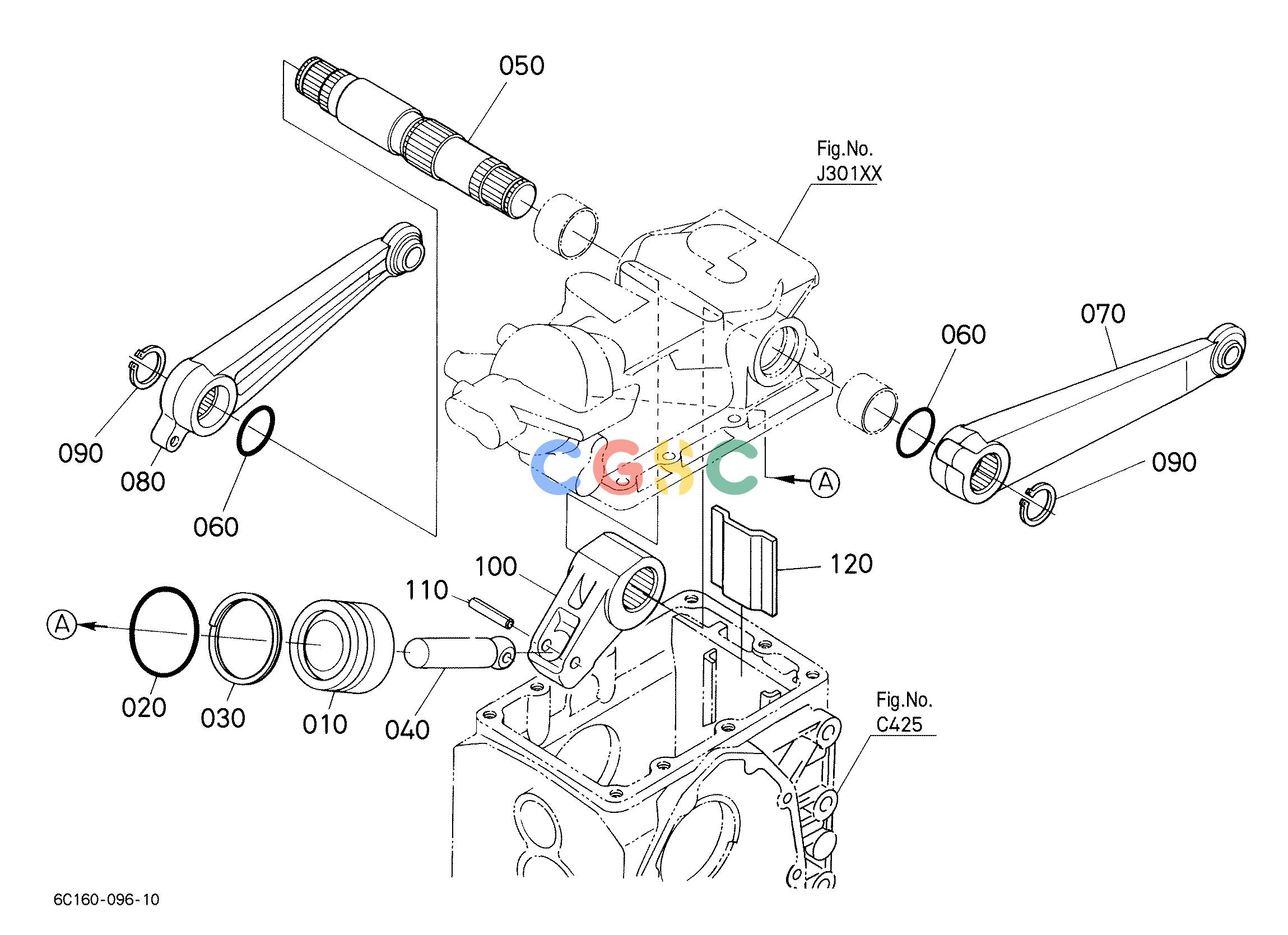

久保田零件查询J31002 HYDRAULIC PISTON/LIFT ARM PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
453 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04036410
|
[1] |
PISTON,HYD.
|
1.7160(lbs); 0.780
|
| 020. |
0481100600
|
[1] |
O RING
|
0.0132(lbs); 0.006
|
| 030. |
6A60036460
|
[1] |
RING,BACK UP
|
0.0110(lbs); 0.005
|
| 040. |
6C04036430
|
[1] |
ROD,HYD.PISTON
|
0.7920(lbs); 0.360
|
| 050. |
6C04036470
|
[1] |
SHAFT,HYD.ARM
|
3.6520(lbs); 1.660
|
| 060. |
6C04036550
|
[2] |
RING
|
0.0066(lbs); 0.003
|
| 070. |
6C04036510
|
[1] |
ARM,LIFT LH
|
4.4000(lbs); 2.000
|
| 080. |
6C04036524
|
[1] |
ARM,LIFT RH
|
4.4000(lbs); 2.000
|
| 090. |
0461200320
|
[2] |
CIR-CLIP,EXTERNAL
|
0.0088(lbs); 0.004
|
| 100. |
6C04036450
|
[1] |
ARM,HYDRAULIC
|
2.1780(lbs); 0.990
|
| 110. |
0541100640
|
[1] |
PIN,SPRING
|
0.0132(lbs); 0.006
|
| 120. |
6C04036750
|
[1] |
STOPPER
|
0.4884(lbs); 0.222
|
