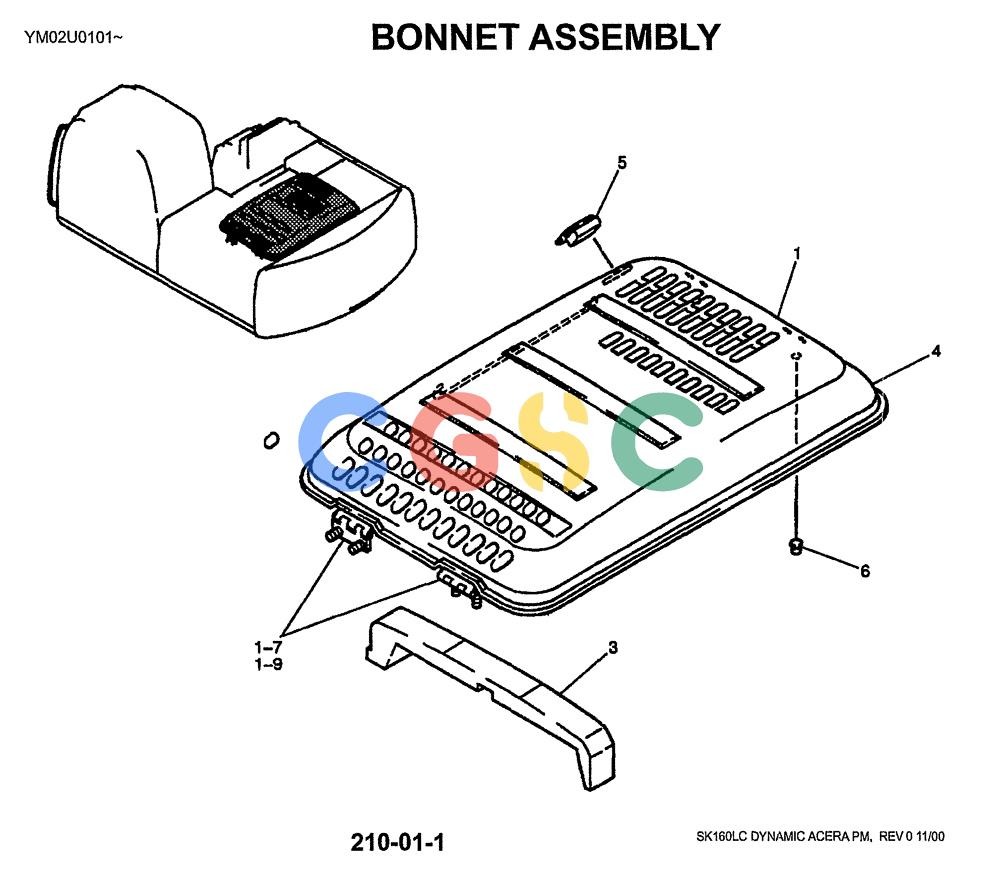

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-049) - BONNET ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
607 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM22C00001F1 | [1] | ENGINE HOOD | KOB |
| 1. | YM22C01002P2 | [1] | ENGINE HOOD | KOB |
| 1-7. | YN22C01074P1 | [2] | HINGE | KOB |
| 1-9. | ZS11C12030 | [4] | CAP,Hex, M12 x 30mm, Cl 4.8 | KOBScrew -- M12x1.75x30mm Superseded by part number: ZM12C12030 |
| 3. | YM22C01004P1 | [1] | FOAM INSULATION | KOB |
| 4. | YN22C01099D1 | [1] | WEATHERSTRIP | KOB |
| 5. | 2406Z304 | [1] | HANDLE | KOB |
| 6. | 2416T13435 | [2] | RUBBER | KOBCUSHION |
