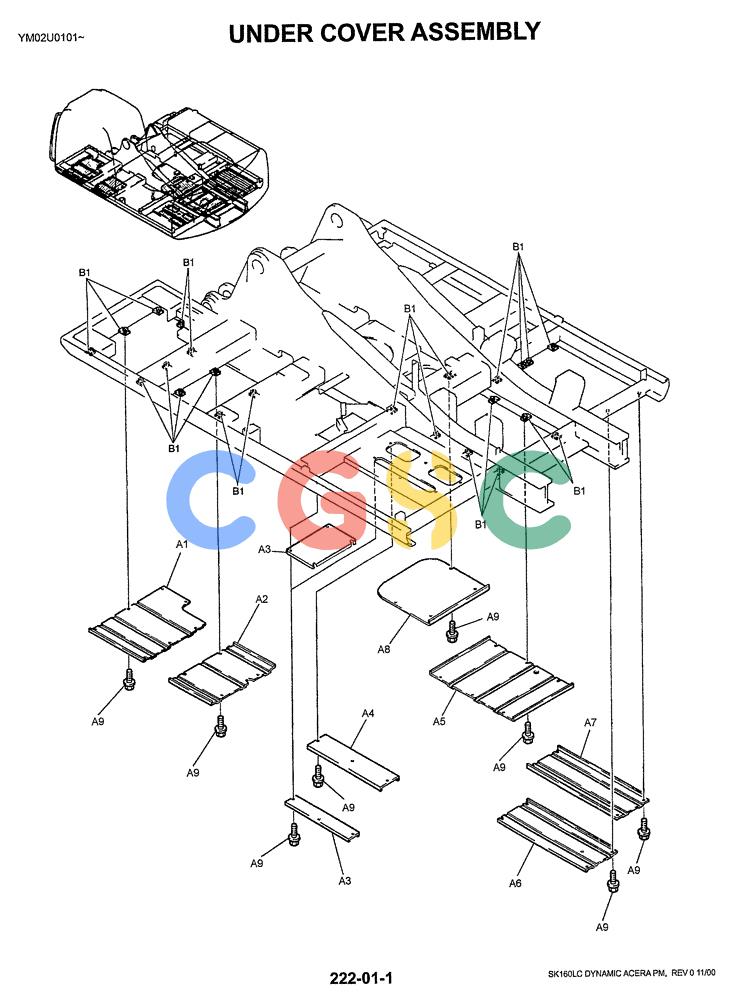

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-050) - UNDER COVER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
306 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM24C00001F1 | [1] | COVER ASSY, UNDER | |
| A1. | YM24C01006P2 | [1] | COVER | KOB |
| A2. | YM24C01007P1 | [1] | COVER | KOB |
| A3. | YN24C01157P1 | [1] | COVER | KOB |
| A4. | YM24C01008P1 | [1] | COVER | KOB |
| A5. | YM24C01009P1 | [1] | COVER | KOB |
| A6. | YM24C01010P1 | [1] | COVER | KOB |
| A7. | YM24C01011P1 | [1] | COVER | KOB |
| A8. | YM24C01012P1 | [1] | COVER | KOB |
| A9. | ZM32C12030 | [39] | BOLT | KOBM12x1.75x30mm (Incls. Washer & Lockwasher) |
| A10. | YM24C01013P1 | [1] | COVER | KOB |
| B1. | 2416T13049D6 | [27] | BLOCK | KOBTAPPED |
