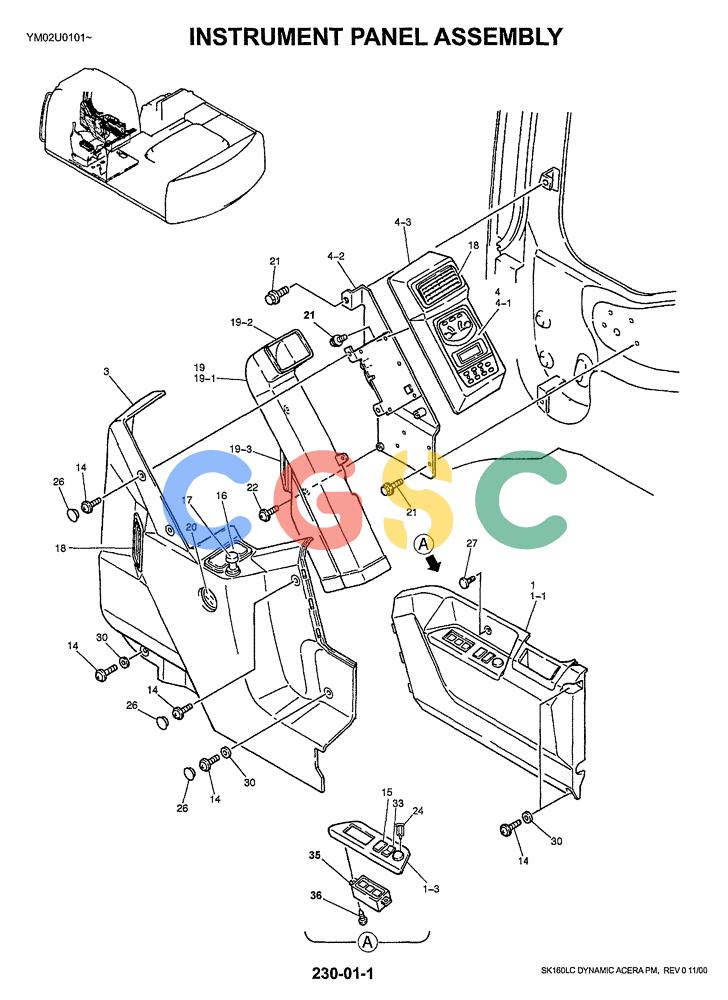

| . . | YN17M00011F1 | [1] | PANEL | KOBINSTRUMENT ASSY, QTY-F1: F1 |
| . . | YN17M00011F2 | [1] | PANEL | KOB(NIBBLER & BREKER), QTY-F2: F2 |
| 1. | YN17M01051F1 | [1] | COVER | KOBQTY-F1: 1, QTY-F2: 1 |
| 1-1. | YN17M01048P1 | [1] | COVER | KOBQTY-F1: 1, QTY-F2: 1 |
| 1-3. | YN17M01064P1 | [1] | PANEL | KOBQTY-F1: 1, QTY-F2: 1 |
| 2. | YN17M01052F1 | [1] | COVER | KOBASSY, QTY-F1: 1, QTY-F2: 1 |
| 2-1. | YN17M01049P1 | [1] | COVER | KOBQTY-F1: 1, QTY-F2: 1 |
| 2-2. | YN52S00009P1 | [1] | POTENTIOMETER | KOB(Used for Engine Acceleration) SE-16, QTY-F1: 1, QTY-F2: 1 |
| 2-3. | YN50S00002F1 | [1] | IGNITION SWITCH | KOBASSY, (SW-1), QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN50S00026F1 |
| 2-3A. | 2420Z1030D2 | [1] | KIT | KOBKEY, QTY-F1: 1, QTY-F2: 1, APPLICABLE: (YN50S00002S001) Superseded by part number: PM50S01001P1 |
| 2-5. | YN17M01062P1 | [1] | BRACKET | KOBQTY-F1: 2, QTY-F2: 2 |
| 2-6. | YN17M01063P1 | [1] | BRACKET | KOBQTY-F1: 2, QTY-F2: 2 |
| 2-7. | YN02C01877D2 | [8] | SCREW | KOBM03x10mm Self-Taper, QTY-F1: 8, QTY-F2: 8 |
| 2-8. | ZS31C04012 | [1] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOBQTY-F1: 2, QTY-F2: 2 |
| 2-10. | YN17M01070P1 | [1] | LABEL | KOBQTY-F1: 1, QTY-F2: 1 |
| 2-11. | YN17M01069P1 | [1] | LABEL | KOBEngine Accel - QTY-F1: 1, QTY-F2: 1 |
| 2-12. | ZW16P04000 | [1] | WASHER | KOBID 04 x OD 09 x Th 0.8mm, QTY-F1: 2, QTY-F2: 2 |
| 3. | YN17M01047P1 | [1] | COVER | KOBQTY-F1: 1, QTY-F2: 1 |
| 4. | YN59E00004F1 | [1] | GAUGE | KOBQTY-F1: 1, QTY-F2: 1 Superseded by part number: YN59E00017F1, YN17M01139P1 |
| 4-1. | LC59S00001F2 | [1] | GAUGE | KOB(C-2), QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN59E00017F1, YN17M01139P1 |
| 4-2. | YN17M01061P3 | [1] | U-BRACKET | KOBQTY-F1: 1, QTY-F2: 1 Superseded by part number: YN17M01108P1 |
| 4-3. | YN17M01066F1 | [1] | COVER | KOBASSY, QTY-F1: 1, QTY-F2: 1 |
| 5. | YN02C01877D2 | [4] | SCREW | KOBM03x10mm Self-Taper, QTY-F1: 4, QTY-F2: 4 |
| 6. | YN17M01050P1 | [1] | COVER | KOBQTY-F1: 1, QTY-F2: 1 |
| 7. | YN54S00006P1 | [1] | SPEAKER | KOBQTY-F1: 2, QTY-F2: 2 Superseded by part number: YN54S00050P2 |
| 8. | LB54S00001P1 | [1] | RADIO | KOBTUNER, QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN54S00074P1 |
| 9. | 2420R1089D1 | [1] | BOLT,M5 x 10mm | KOB(Incls. Washer & Lockwasher), QTY-F1: 4, QTY-F2: 4 |
| 10. | ZS32T40012 | [1] | SCREW | KOBM04x12mm Self-Taper, QTY-F1: 8, QTY-F2: 8 |
| 11. | ZW16K04000 | [1] | WASHER | KOBID 04 x OD 08 x Th 0.8mm, QTY-F1: 8, QTY-F2: 8 |
| 12. | ZM46C06020 | [1] | BOLT | KOBM06x1.0x20mm (Incls. Washer & Lockwasher), QTY-F1: 8, QTY-F2: 8 |
| 13. | YX17M01003P1 | [1] | BRACKET | KOBQTY-F1: 2, QTY-F2: 2 |
| 14. | ZM46C06016 | [7] | SCREW | KOBM06x1.0x16mm (Incls. Washer & Lockwasher), QTY-F1: 7, QTY-F2: 7 |
| 15. | YN17M01032P1 | [1] | CAP | KOBQTY-F1: 7, QTY-F2: 6 |
| 16. | YN02C01385F1 | [1] | TRAY | KOBASH, QTY-F1: 1, QTY-F2: 1 |
| 17. | 2421R180F1 | [1] | CIGARETTE LIGHTER | KOB(E-14), QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN81S00003P1 |
| 18. | YN20M01220P1 | [1] | VENT | KOBGRILLE, QTY-F1: 2, QTY-F2: 2 |
| 19. | YN20M01297F1 | [1] | DUCT | KOBASSY, QTY-F1: 1, QTY-F2: 1 |
| 19-1. | YN20M01219P1 | [1] | DUCT | KOBASSY, QTY-F1: 1, QTY-F2: 1 Superseded by part number: YN20M01297F1 |
| 19-2. | YN20M01297S002 | [1] | SEAL | KOBQTY-F1: 1, QTY-F2: 1 |
| 19-3. | YN20M01297S003 | [1] | SEAL | KOBQTY-F1: 1, QTY-F2: 1 |
| 20. | YN58S00006P1 | [1] | METER | KOBHOUR (E-3), QTY-F1: 1, QTY-F2: 1 |
| 21. | ZM61C08020 | [1] | BOLT | KOBM08x1.25x12mm (Incls. Washer & Lockwasher), QTY-F1: 5, QTY-F2: 5 |
| 22. | ZM66C06012 | [1] | BOLT | KOBM06x1.0x12mm (Incls. Washer & Lockwasher), QTY-F1: 3, QTY-F2: 3 |
| 23. | YN17M01072P1 | [1] | CABLE | KOB2000mm Long (78-3/4 in), QTY-F1: 1, QTY-F2: 1 Superseded by part number: 72203961 |
| 24. | YN81S00001P1 | [1] | SOCKET | KOB(12V Accessory), QTY-F1: 1, QTY-F2: 1 |
| 25. | YN17M01055D1 | [1] | CAP | KOBQTY-F1: 3, QTY-F2: 3 |
| 26. | YN17M01055D2 | [1] | CAP | KOBQTY-F1: 4, QTY-F2: 4 |
| 27. | YN17M01068P1 | [1] | SCREW | KOBQTY-F1: 1, QTY-F2: 1 |
| 28. | YN17M01060P1 | [1] | CAP | KOBQTY-F1: 1, QTY-F2: 1 |
| 29. | 2479U1190F13 | [1] | SWITCH | KOB(SW-35) (Heavy Lift), QTY-F1: 1, QTY-F2: 1 |
| 30. | 2420T4505 | [1] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOBQTY-F1: 4, QTY-F2: 4 |
| 31. | 2479U1224F4 | [1] | SWITCH | KOB(SW-3) (Two speed Travel Select), QTY-F1: 1, QTY-F2: 1 |
| 32. | 2479U1190F5 | [1] | SWITCH | KOB(SW-36) (Independent Travel), QTY-F1: 1, QTY-F2: 1 |
| 33. | 2479U1190F9 | [1] | SWITCH | KOB(SW-9) (Swing Flasher), QTY-F1: 1, QTY-F2: 1 |
| 34. | 2420Z1330 | [1] | GROMMET | KOBQTY-F1: 1, QTY-F2: 1 |
| 35. | YN50E00003F1 | [1] | SWITCH | KOBASSY (SW-20) (Wiper, Washer, Work Light), QTY-F1: 1, QTY-F2: 1 |
| 36. | YN02C01877D1 | [1] | SCREW | KOBM03x16mm Self-Taper, QTY-F1: 2, QTY-F2: 2 |
| 37. | 2479U1190F31 | [1] | SWITCH | KOBAutomatic Warm-Up (SW-38), QTY-F1: 1, QTY-F2: 1 |
| 38. | 2479U1190F32 | [1] | SWITCH | KOB(SW-15) (Conflux/Single Select), QTY-F1: -, QTY-F2: 1 |
| 39. | YN50E00002F1 | [1] | SWITCH | KOBASSY (SW-2) (Buzzer Stop, Work Mode), QTY-F1: 1, QTY-F2: 1 |
| 40. | ZM46C05012 | [2] | BOLT | KOBM05x0.8x12mm (Incls. Washer & Lockwasher), QTY-F1: 2, QTY-F2: 2 |
