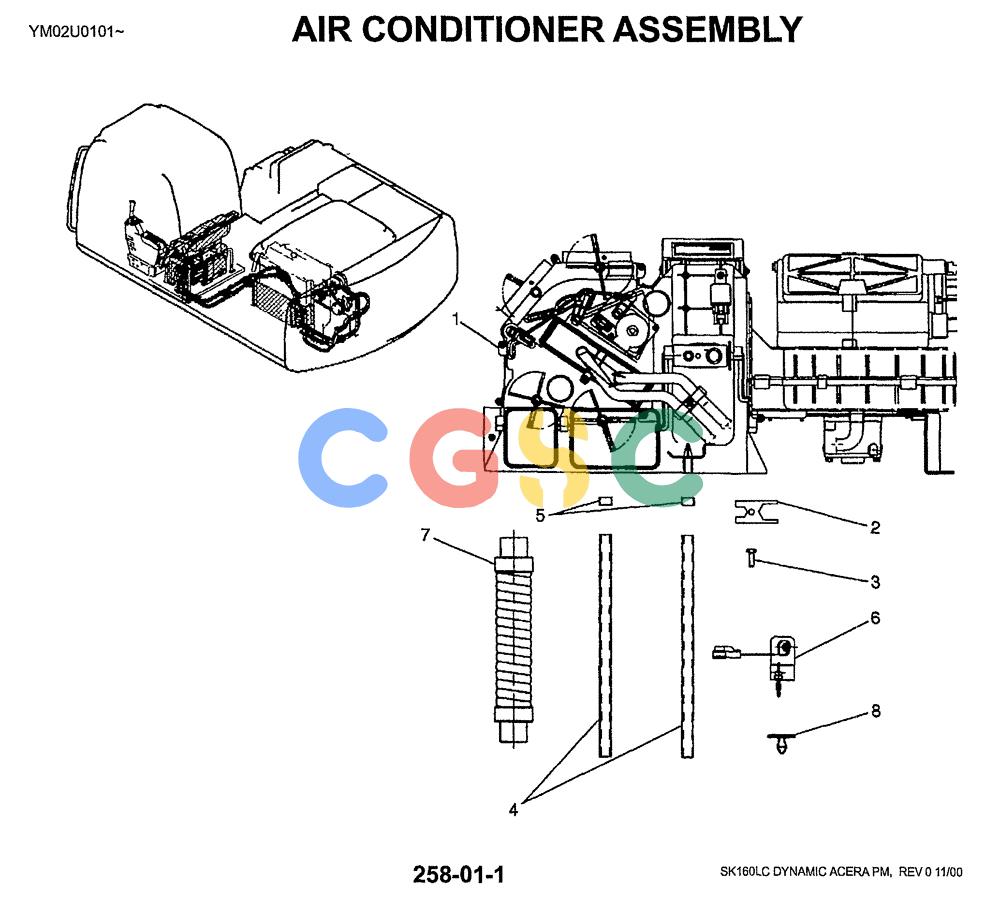

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-057) - AIR CONDITIONER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
726 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC20M00004F1 | [1] | CONDITIONING UNIT | KOBAIR CONDITIONER |
| 1. | LC20M00005F1 | [1] | CONDITIONING UNIT | KOBAIR See P. 262-01-1 Superseded by part number: LC20M00005F2 |
| 2. | YT20M01077P1 | [1] | PLATE | KOB |
| 3. | YT20M00009S005 | [1] | BOLT | KOB |
| 4. | LC20M01014D1 | [2] | HOSE | KOBID 11 x OD 15 x 300mm Superseded by part number: LC20M01014D2 |
| 5. | 24100U1176S5 | [2] | CLAMP | KOB |
| 6. | YN52S00021F1 | [1] | SENSOR | KOB |
| 7. | LC20M01015D1 | [1] | DUCT | KOB |
| 8. | YN20M01093S001 | [2] | CLIP | KOB |
