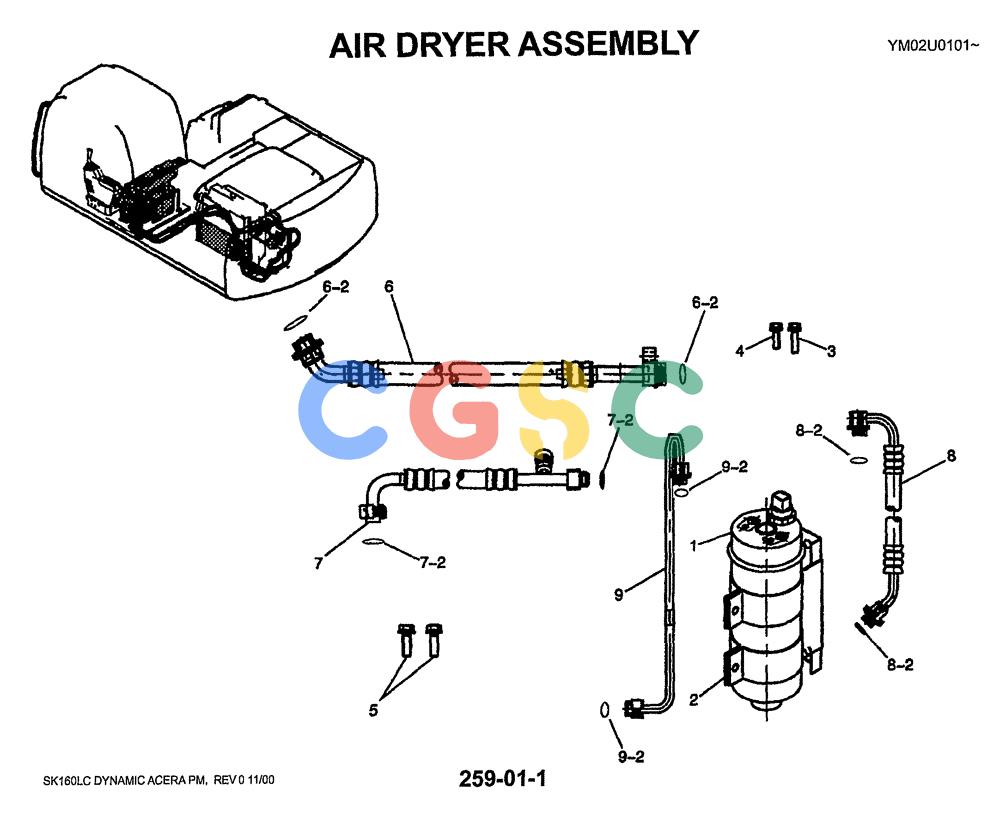

神钢零件查询(SK160LC) - DYNAMIC ACERA EXCAVATOR 11/2000 ASN YM02U0101 (11/00-12/02) (01-058) - AIR DRIER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
407 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM96V00001F1 | [1] | GEAR SET | KOB |
| 1. | YT54S00002P1 | [1] | RECEIVER-DRYER | KOBSensor NSS |
| 2. | YN20M01069P1 | [1] | BRACKET | KOB Superseded by part number: YN20M01355P1 |
| 3. | YT96V00001S010 | [1] | CAP | KOBScrew -- M06x25mm Long -- Receiver |
| 4. | YT20M00009S005 | [1] | BOLT | KOB(RECEIVER) |
| 5. | YT96V00001S009 | [2] | SCREW | KOBScrew -- M08x25mm Long -- Compressor |
| 6. | YM20M01005F1 | [1] | HOSE | KOB(S-HOSE) |
| 6-2. | 2445Z1604D5 | [2] | O-RING | KOB5/8 in |
| 7. | YN20M01279F1 | [1] | FLEXIBLE HOSE | KOB(D-HOSE) |
| 7-2. | 2445Z1604D4 | [2] | O-RING | KOB1/2 in |
| 8. | YM20M01006F1 | [1] | HOSE | KOB(L-HOSE) |
| 8-2. | 2445Z1604D6 | [2] | O-RING | KOB08mm |
| 9. | YN20M01281F1 | [1] | RIGID TUBE | KOB(L-HOSE) |
| 9-2. | 2445Z1604D6 | [2] | O-RING | KOB08mm |
