| 1. | YM01V00006F3 | [1] | BUCKET CYLINDER | KOBCYL. ASSY, BOOM RH Superseded by part number: YM01V00007F3 |
| 2. | YM01V00007F3 | [1] | HYDRAULIC CYLINDER | KOBCYL. ASSY, BOOM LH |
| 3. | YM01V00008F3 | [1] | HYDRAULIC CYLINDER | KOBCYL. ASSY, ARM |

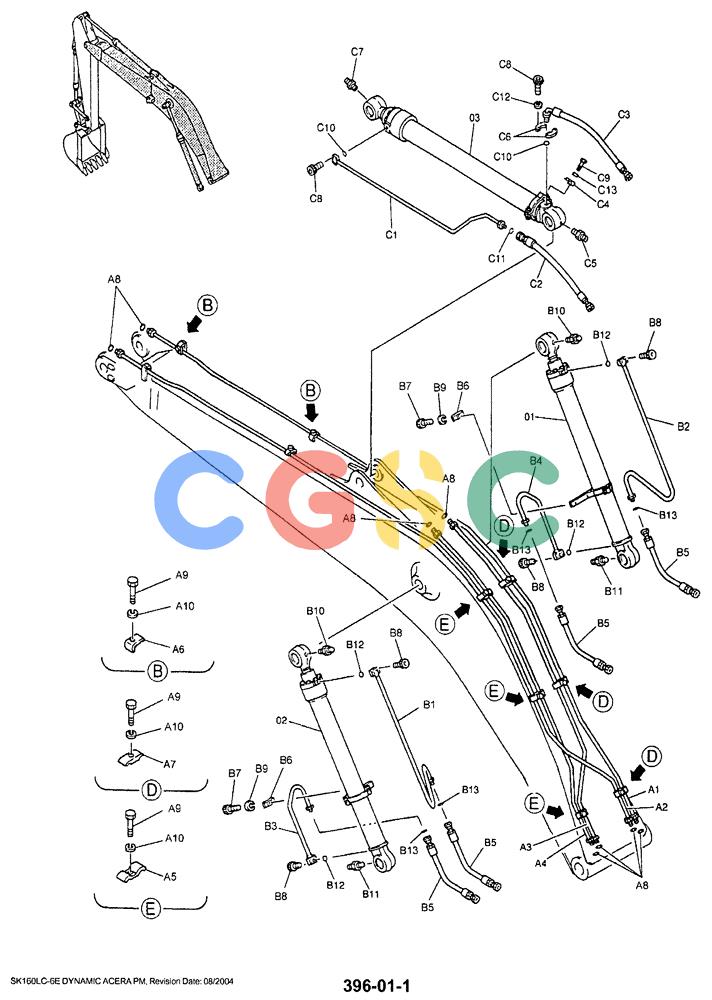

| . . | NS | [1] | NOT SERVICED | BASHYD LINES, BOOM (YM42H00001F1) Order Components |
| A1. | YM42H01028P1 | [1] | TUBE | KOB |
| A2. | YM42H01029P1 | [1] | TUBE | KOB |
| A3. | YM42H01003P1 | [1] | TUBE | KOB |
| A4. | YM42H01004P1 | [1] | TUBE | KOB |
| A5. | 2432T2434 | [3] | CLAMP | KOBDouble Line -- 129x38x15mm (Ø29xØ36mm) |
| A6. | ZC26X28014 | [4] | CLAMP | KOBSingle Line -- 75x37x38mm (Ø28mm) |
| A7. | ZC36X28014 | [3] | CLAMP | KOBDouble Line -- 100x38x16mm (Ø30mm) |
| A8. | ZD12A01800 | [8] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| A9. | ZS18C12055 | [10] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| A10. | ZW26X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| . . | YM42H00010F1 | [1] | LINE | KOBHYD LINES, BOOM CYLS. |
| B1. | YM42H01032P1 | [1] | RIGID TUBE | KOB970mm Long (38-3/16 in) |
| B2. | YM42H01033P1 | [1] | RIGID TUBE | KOB970mm Long (38-3/16 in) |
| B3. | YM42H01034P1 | [1] | RIGID TUBE | KOB580mm Long (22-27/32 in) |
| B4. | YM42H01035P1 | [1] | TUBE | KOB384mm Long (15-7/64 in) |
| B5. | ZX20H10074 | [4] | HOSE | KOB740mm Long (29-1/8 in) |
| B6. | 2432T2242 | [2] | CLAMP | KOBDouble -- 106x38x12mm (Ø23xØ29mm) |
| B7. | ZS18C12050 | [2] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| B8. | ZS28C10030 | [16] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm |
| B9. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| B10. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| B11. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| B12. | ZD12P02600 | [4] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| B13. | ZD12A01600 | [4] | O-RING | KOBID 15.60 ± 0.12 x OD 19.16mm |
| . . | YM42H00009F1 | [1] | LINE | KOBHYD LINES, ARM CYL. |
| C1. | YM42H01031P1 | [1] | TUBE,1474, 196 mm L | KOB1474mm Long (58-1/32 in) |
| C2. | YN42H01934D3 | [1] | HOSE | KOB1100mm Long (43-19/64 in) |
| C3. | ZX30U12110 | [1] | HOSE | KOB |
| C4. | YN43H01097P1 | [1] | CLAMP | KOBSingle -- 58x30x38mm (Ø28mm) |
| C5. | ZH22Z04000 | [1] | HYD CONNECTOR | KOB1/4"PTx1/4"PFx37mm Long |
| C6. | ZE13X12000 | [2] | CLAMP | KOBHalf -- (Incls. Capscrew & Lockwasher) |
| C7. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| C8. | ZS28C10035 | [8] | SCREW,Hex Socket Head, M10 x 35mm | KOBScrew -- M10x1.50x35mm |
| C9. | ZS18C12055 | [1] | SCREW,Hex, M12 x 55mm | KOBM12x1.75x55mm |
| C10. | ZD12P02600 | [2] | O-RING | KOBID 25.70 ± 0.26 x OD 32mm |
| C11. | ZD12A01800 | [1] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| C12. | ZW26K10000 | [4] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| C13. | ZW26X12000 | [1] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
