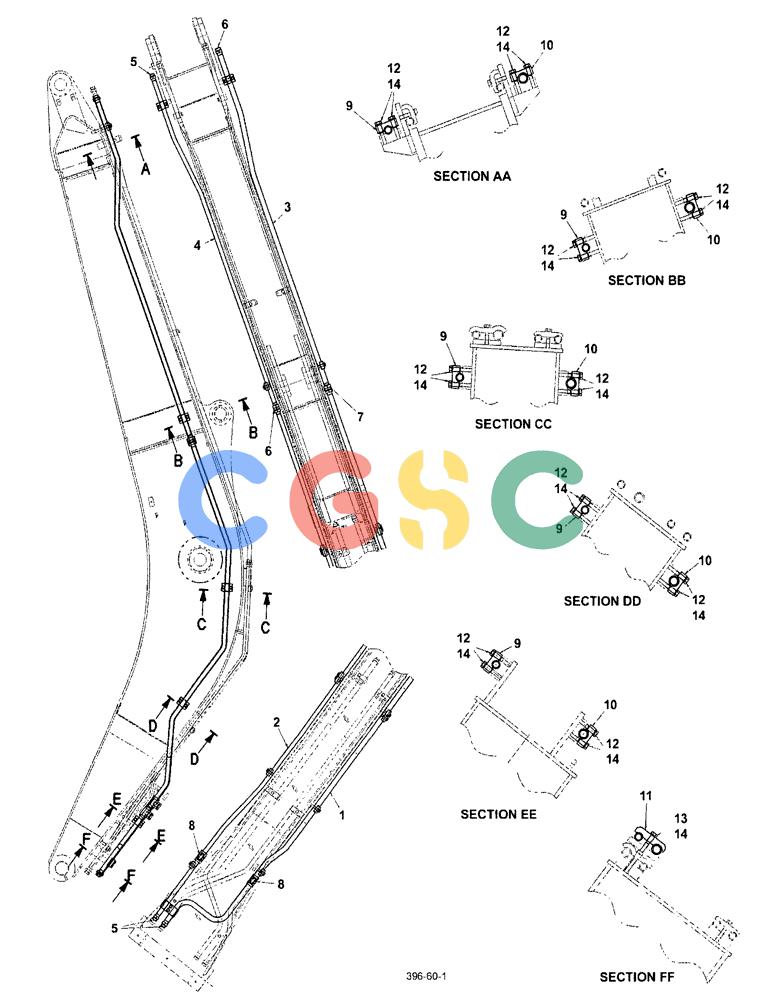

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (03-003) - BOOM HYDRAULIC LINES 5.2M (17ft 1in) (NIBBLER & BREAKER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
568 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM42H00036F1 | [1] | LINE | KOBHYD LINES, BOOM (NIBBLER& BREAKER) |
| 1. | YM42H01105P1 | [1] | TUBE | KOB |
| 2. | YM42H01106P1 | [1] | TUBE,2714, 1252 mm L | KOB |
| 3. | YM42H01117P1 | [1] | TUBE,2353, 166 mm L | KOB |
| 4. | YM42H01118P1 | [1] | TUBE,2353, 166 mm L | KOB |
| 5. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 6. | ZD12A02100 | [2] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
| 7. | YM42H01056P1 | [1] | O-RING,29.87mm ID x 33.43mm OD x 1.78mm | KOBID 29.87 ± 0.15 x OD 33.43mm Superseded by part number: YY42H01313P1 |
| 8. | ZE72X16000 | [2] | PLUG | KOB(Incls. O-Ring ZD12P02900) |
| 9. | 2432T6122 | [5] | CLAMP | KOBSingle Block -- 75x50x25mm |
| 10. | 2432T5924 | [5] | CLAMP | KOBSingle Block -- 80x50x25mm |
| 11. | YN42H01366P1 | [1] | CLAMP | KOB |
| 12. | ZS18C12060 | [20] | SCREW,Hex, M12 x 60mm | KOBM12x1.75x60mm |
| 13. | ZS18C12065 | [2] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 14. | ZW26X12000 | [22] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
