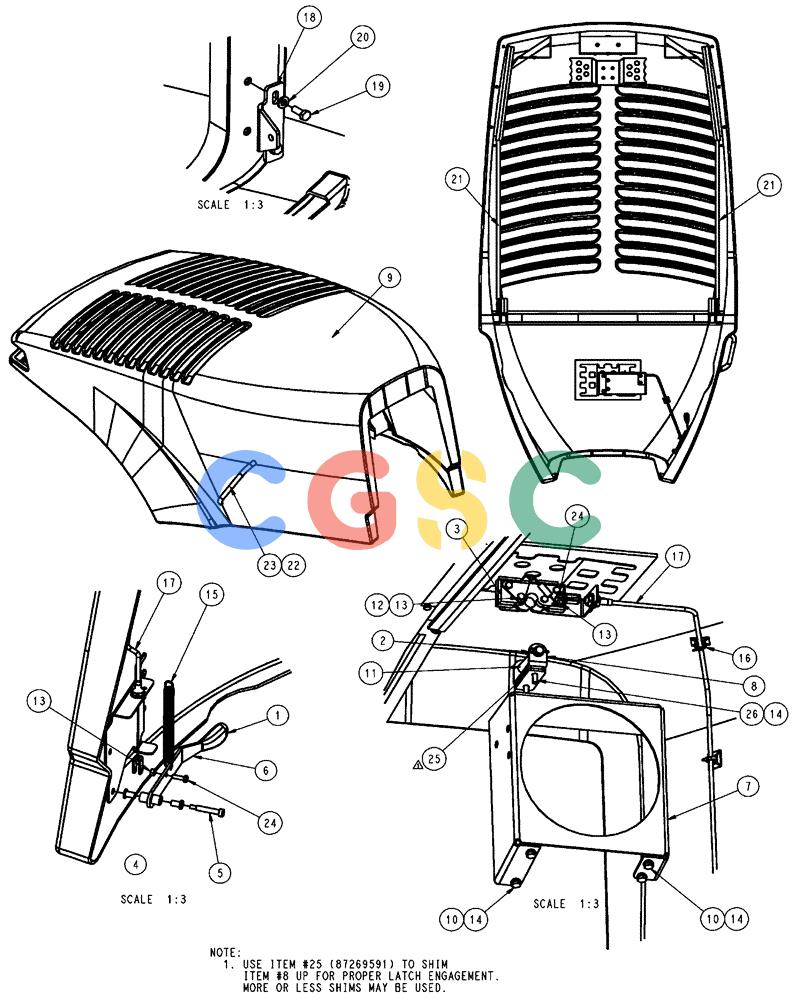

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (04-017) - COMPLETE ENGINE HOOD Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
134071A1
|
[1] |
KNOB
|
CAS
Throttle Control
|
| 2. |
BN1630425
|
[1] |
PIN, SPLIT (COTTER)
|
BN
PIN, COTTER 1/8 X 1
|
| 3. |
318159A1
|
[1] |
LATCH
|
CAS
Hood
|
| 4. |
BN319151
|
[2] |
BUSHING
|
BN
5/16, Shoulder, Nylon
|
| 5. |
BN325062
|
[1] |
BOLT
|
BN
M6-1, Shoulder, 8 X 40
|
| 6. |
BN325453
|
[1] |
LEVER
|
BN
Weldment, Hood Latch
|
| 7. |
BN325462
|
[1] |
SUPPORT
|
BN
Hood Latch
|
| 8. |
BN325463
|
[1] |
SUPPORT
|
BN
LATCH PIN
|
| 9. |
BN325465
|
[1] |
ENGINE HOOD
|
BN
Glassed
|
| 10. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 11. |
728-16100
|
[1] |
CLEVIS PIN,M16 x 100
|
CAS
Superseded by part number: 84078725
|
| 12. |
86977789
|
[4] |
BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8
|
ZED
|
| 13. |
353308
|
[6] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 14. |
86624184
|
[6] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 15. |
L106237
|
[1] |
SPRING
|
CAS
Throttle Return
|
| 16. |
435437A1
|
[3] |
CABLE TIE,3/16" x 7 1/4"
|
CAS
CABLE STRAP Superseded by part number: 529070
|
| 17. |
BN325620
|
[1] |
CABLE
|
BN
Plate
|
| 18. |
342450A1
|
[2] |
PLATE
|
BN
Cylinder Mount
|
| 19. |
11106231
|
[4] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9
|
LEC
|
| 20. |
87529312
|
[4] |
WASHER,11mm ID x 24mm OD x 3mm Thk
|
BN
|
| 21. |
BN325746
|
[1] |
Baffle Group, HD/Air SC/RAD.
|
|
| 22. |
BN29930
|
[2] |
WASHER
|
BN
12 ga 409 2" od x .34" id
|
| 23. |
BN318538
|
[1] |
HANDLE
|
BN
Grab, 18" SS
|
| 24. |
120100
|
[2] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 25. |
87269591
|
[2] |
PLATE
|
BN
LATCH, SPACER
|
| 26. |
43128
|
[2] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 27. |
87343664
|
[2] |
NUT
|
BN
|
