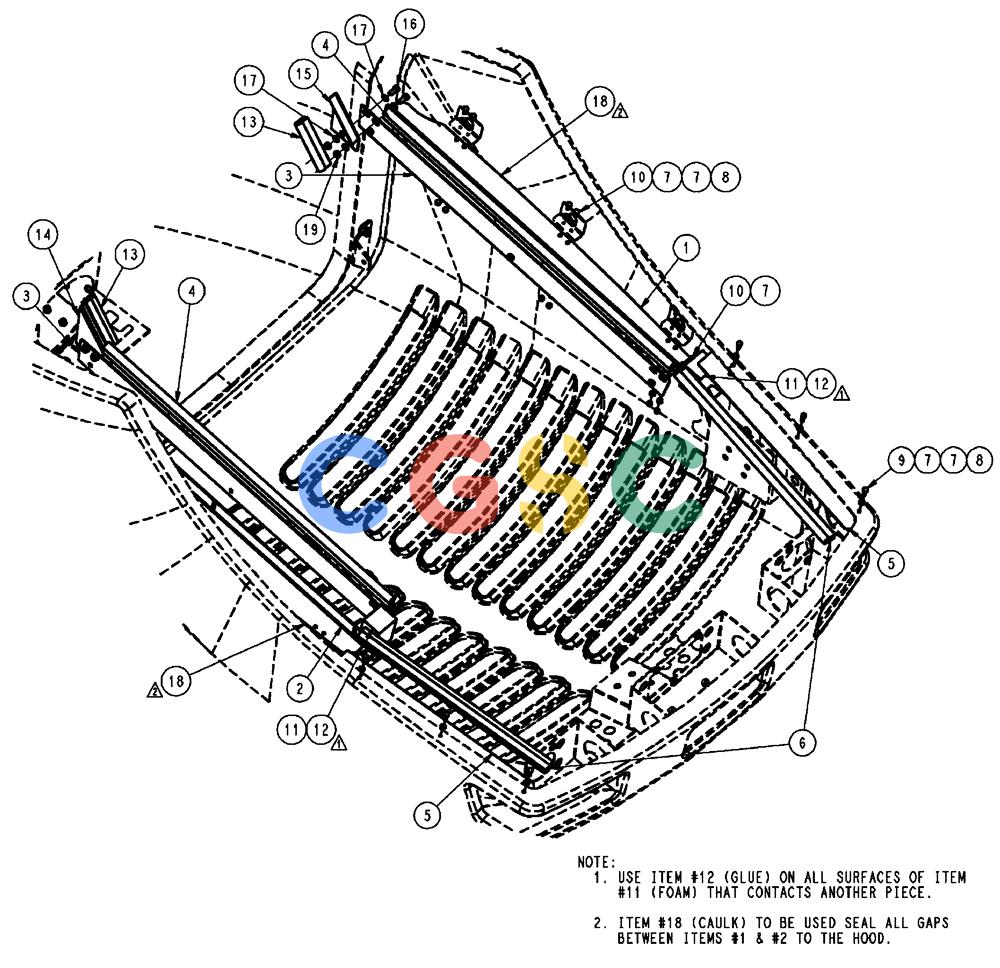

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (04-018) - BAFFLE GROUP, HOOD/AIR SCREEN/RADIATOR Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
262 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87268825
|
[1] |
BRACKET, SUPPORTING
|
BN
Mount, Seal Plate, CS
|
| 2. |
87268824
|
[1] |
BRACKET, SUPPORTING
|
BN
Mount, Seal Plate, RS
|
| 3. |
87268823
|
[2] |
MOUNTING PLATE
|
BN
Hood Seal
|
| 4. |
343856A1
|
[2] |
SEAL
|
BN
Hood Side
|
| 5. |
87267465
|
[2] |
PLATE
|
BN
Side Seal
|
| 6. |
F43117X
|
[2] |
SEAL
|
CAS
formed rubber, adhesive-backed, bulk, 15 (9/16) x 31 (1-3/16) x 30480 mm (1200 inch) long
|
| 7. |
86588450
|
[42] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 8. |
353308
|
[18] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 9. |
120100
|
[6] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 10. |
86508568
|
[18] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 11. |
87268297
|
[2] |
SEAL
|
BN
Foam, Hood
|
| 12. |
BN54039
|
[1] |
ADHESIVE
|
BN
Spray 18 oz
|
| 13. |
S115658
|
[2] |
WEATHERSTRIP
|
BN
Bulk, Start Serial: 6137 Superseded by part number: F43117X
|
| 13. |
87268299
|
[2] |
SEAL
|
BN
Bulb
|
| 14. |
87269593
|
[1] |
PLATE
|
BN
Hood Seal, Start Serial: 6137
|
| 14. |
87268817
|
[1] |
MOUNTING PLATE
|
BN
Seal, RS
|
| 15. |
87269592
|
[1] |
PLATE
|
BN
Hood Seal, Start Serial: 6137
|
| 15. |
87268818
|
[1] |
MOUNTING PLATE
|
BN
Seal CS
|
| 16. |
120104
|
[4] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 17. |
86624184
|
[8] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
, Start Serial: 6137
|
| 18. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Black-Seam Seal 300ML, 0.5, Contact ASIST for more Information
|
| 19. |
86528579
|
[4] |
NUT,M8 x 1.25
|
WIN
, Start Serial: 6137
|
