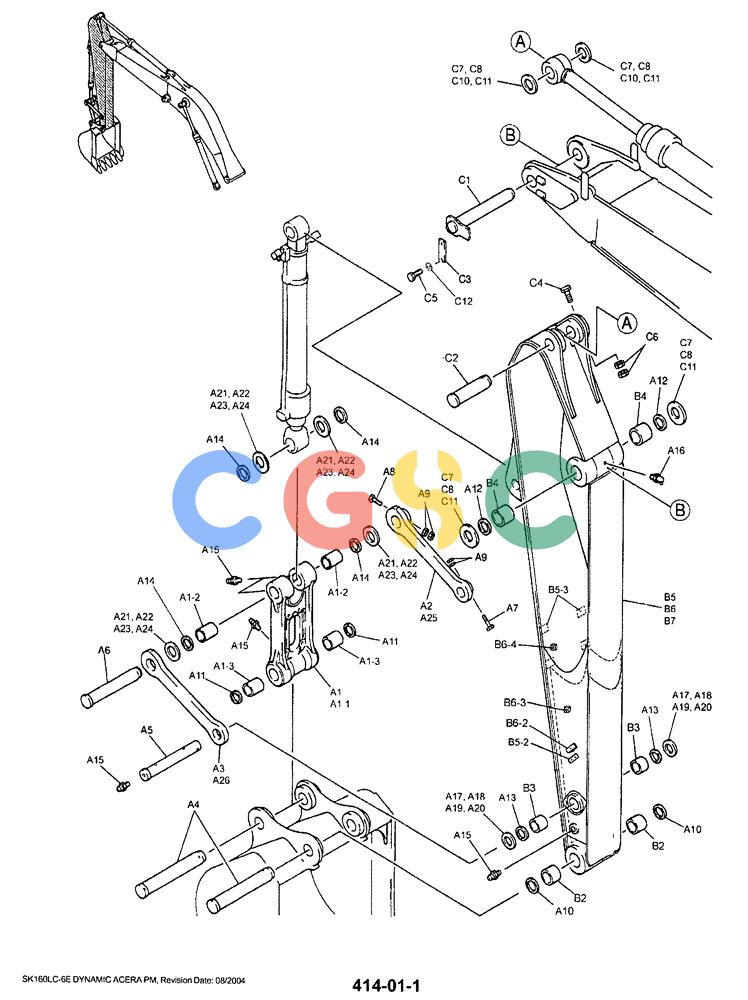

| . . | YM12B00044F3 | [1] | ARM GROUP (STD) | |
| . . | YM12B00044F4 | [1] | ARM GROUP (NIBBLER& BREAKER) | |
| A1. | YM12B01088F1 | [1] | LINK CONROD | KOB Superseded by part number: YM12B01088F2 |
| A1-1. | YM12B01051P1 | [1] | LINK | KOBLINK, BUCKET Superseded by part number: YM12B01088F2 |
| A1-2. | YB12B01072P1 | [2] | BUSHING,70.28mm ID x 85mm OD x 85mm L | KOBID 70.2 x OD 85 x 85mm Long |
| A1-3. | YN12B01838P1 | [2] | BUSHING,70.28mm ID x 85mm OD x 67mm L | KOBID 70.2 x OD 85 x 67mm Long |
| A2. | YM12B01039P1 | [1] | LINK | KOBFOR F3 ONLY |
| A3. | YM12B01040P1 | [1] | LINK | KOBFOR F3 ONLY |
| A4. | YM12B01052P1 | [2] | PIN,75mm OD x 511mm L | KOBOD 70 x 511mm Long |
| A5. | YM12B01068P1 | [1] | PIN,70mm OD x 420mm L | KOBOD 65 x 332mm Long |
| A6. | YM12B01070P1 | [1] | PIN,75mm OD x 443mm L | KOBOD 70 x 420mm Long |
| A7. | HS18C14115G2 | [1] | BOLT,Hex, M14 x 115mm, Cl 10.9 | KOBM14x2.0x150mm |
| A8. | HS18C14130G1 | [1] | CAPSCREW,M14 x 130mm, Cl 10.9 | KOBSCREW M14x2.0x130mm |
| A9. | ZN18C14011 | [4] | NUT | KOBM14x2.0mm |
| A10. | 2445R220D18 | [2] | SEAL | KOBDust -- ID 70 x OD 90 x Th 5mm |
| A11. | 2445R220D3 | [2] | SEAL,70mm ID x 85mm OD x 5mm Thk | KOBDust -- ID 70 x OD 85 x Th 5mm |
| A12. | 2445R220D4 | [2] | SEAL,78.7mm ID x 95mm OD x 5mm Thk | KOBDust -- ID 80 X OD 95 x Th 5mm Superseded by part number: 84499640 |
| A13. | 2445R138D4 | [2] | SEAL,65mm ID x 80mm OD x 4mm Thk | KOB |
| A14. | 2445R138D6 | [4] | SEAL,70mm ID x 85.3mm OD x 4mm Thk | KOBSeal, Dust -- ID 70 x OD 85 x Th 4mm |
| A15. | ZG91S02000 | [5] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| A16. | ZG91U02000 | [1] | LUBE NIPPLE | KOB90° x 1/8" PT |
| A17. | 2418T4037D7 | [1] | SHIM,67mm ID x 110mm OD x 0.5mm Thk | KOBID 67x OD 110 x Th 0.5mm |
| A18. | 2418T4037D3 | [1] | SHIM,67mm ID x 110mm OD x 0.9mm Thk | KOBID 67x OD 110 x Th 0.9mm |
| A19. | 2418T4037D5 | [1] | SHIM,67mm ID x 110mm OD x 1.6mm thk | KOBID 67x OD 110 x Th 1.6mm |
| A20. | YM12B01063D1 | [2] | SHIM,67mm ID x 110mm OD x 2mm Thk | KOBID 67x OD 110 x Th 2.0mm |
| A21. | B16T0442D57 | [2] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOBID 72 x OD 130 x Th 0.5mm |
| A22. | B16T0442D44 | [2] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOBID 72 x OD 130 x Th 0.9mm |
| A23. | B16T0442D2 | [2] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOBID 72 x OD 130 x Th 1.6mm |
| A24. | YN12B01602D1 | [4] | SHIM,72mm ID x 130mm OD x 2mm Thk | KOBID 72 x OD 130 x Th 2.0mm |
| A25. | YM12B01041P1 | [1] | LINK | KOBFOR F4 ONLY |
| A26. | YM12B01042P1 | [1] | POWER ARM | KOBFOR F4 ONLY |
| . . | YM12B00038F6 | [1] | ARM | KOBARM ASSEMBLY N&B |
| . . | YM12B00038F7 | [1] | ARM ASSEMBLY ROTATION+N&B | |
| . . | YM12B00038F8 | [1] | ARM ASSEMBLY ROT+N&B, HD | |
| B2. | YM12B01087P1 | [2] | BUSHING | KOB |
| B3. | YM12B01092P1 | [2] | BUSHING | KOBID 65.2 x OD 80 x 68mm Long |
| B4. | YN12B01596P1 | [2] | BUSHING | KOBID 80 x OD 95 x 82mm Long Superseded by part number: YN12B01839P1 |
| B5. | YM12B00041P2 | [1] | ARM, FOR F6 ONLY | |
| B5-2. | YN43H01051P1 | [2] | BLOCK | KOB |
| B5-3. | LC12B01071P1 | [4] | BLOCK | KOB |
| B6. | YM12B00059P2 | [1] | ARM, FOR F7 ONLY | |
| B6-2. | LC12B01076P1 | [2] | SUPPORT | KOBFOR F7&F8 ONLY |
| B6-3. | 2416T9804 | [2] | BLOCK | KOBTapped -- 70x38x16mm, FOR F7&F8 ONLY |
| B6-4. | 2416T9804D4 | [2] | BLOCK | KOBTapped -- 70x38x22mm, FOR F7&F8 ONLY Superseded by part number: YN02F01333P1 |
| B7. | YM12B00060P2 | [1] | ARM, FOR F8 ONLY | |
| . . | YM12B00028F1 | [1] | ARM | KOBARM INSTAL |
| C1. | YM12B01066P1 | [1] | PIN,80mm OD x 455mm L | KOBOD 80 x 407mm Long |
| C2. | YM02B01069P1 | [1] | PIN,80mm OD x 281mm L | KOBOD 80 x 281mm Long |
| C3. | 2418T12645D2 | [1] | PLATE | KOB125 x 261 x Th 9.0mm |
| C4. | HS18C16140G2 | [1] | SCREW,M16 x 140mm, Cl 10.9 | KOBM16x2.0x140mm |
| C5. | ZS18C12025 | [2] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| C6. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| C7. | B16T0442D52 | [2] | SHIM,82mm ID x 100mm OD x 0.5mm Thk | KOBID 82 x OD 150 x Th 0.5mm |
| C8. | B16T0442D39 | [2] | SHIM,82mm ID x 150mm OD x 0.9mm Thk | KOBID 82 x OD 150 x Th 0.9mm |
| C10. | B16T0442D4 | [1] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| C11. | LB12B01026D1 | [4] | SHIM,82mm ID x 150mm OD x 2mm Thk | KOBID 82 x OD 150 x Th 2.0mm |
| C12. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
