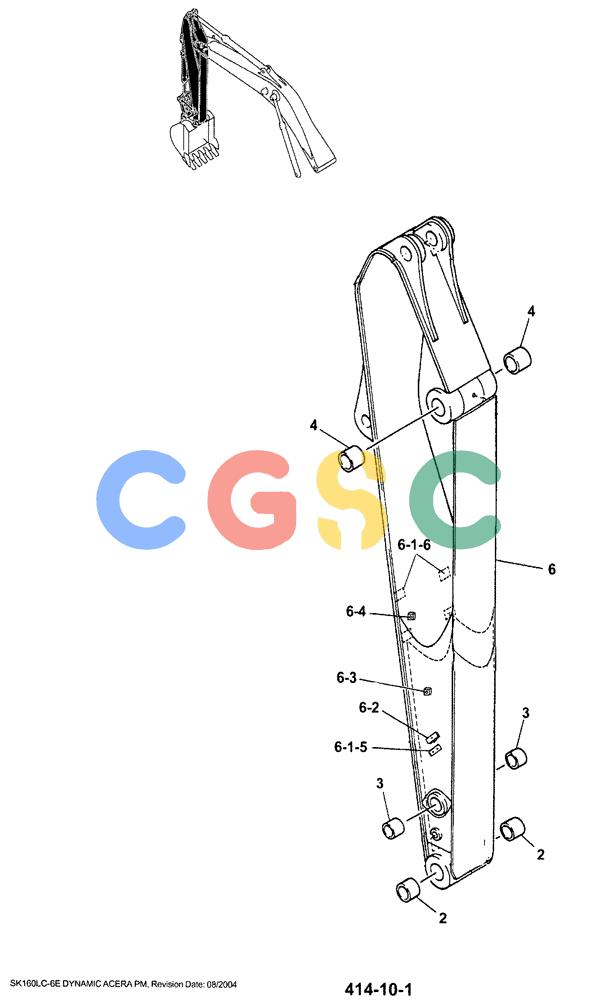

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (03-010) - ARM ASSEMBLY 2.6M (8ft 6in) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
398 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM12B00072F3 | [1] | ARM | KOBASSEMBLY 2.6M (ROTATION+N&B) Superseded by part number: YM12B00072F7 |
| 2. | YM12B01049P1 | [2] | BUSHING | KOB Superseded by part number: YM12B01087P1 |
| 3. | YM12B01023P1 | [2] | BUSHING | KOB Superseded by part number: YM12B01092P1 |
| 4. | YN12B01596P1 | [2] | BUSHING | KOBID 80 x OD 95 x 82mm Long Superseded by part number: YN12B01839P1 |
| 6. | YM12B00075P1 | [1] | ARM | KOB |
| 6-1-5. | YN43H01051P1 | [2] | BLOCK | KOB |
| 6-1-6. | LC02B01024P1 | [4] | BLOCK | KOB |
| 6-2. | LC12B01076P1 | [2] | SUPPORT | KOB |
| 6-3. | 2416T9804 | [2] | BLOCK | KOBTapped -- 70x38x16mm |
| 6-4. | 2416T9804D4 | [2] | BLOCK | KOBTapped -- 70x38x22mm Superseded by part number: YN02F01333P1 |
