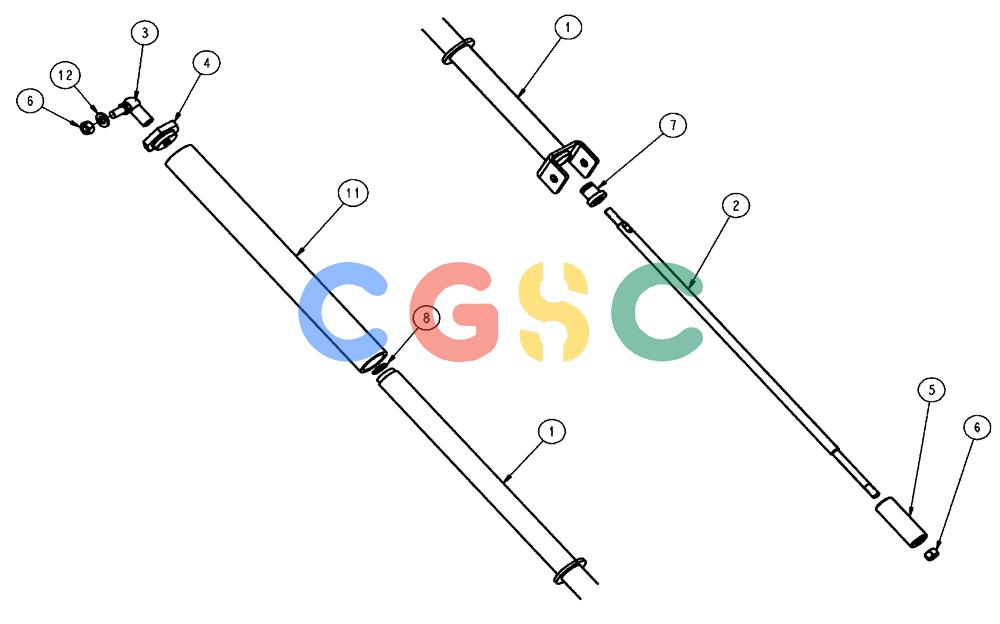

凯斯零件查询(FLX3510) - FLOATER (8/04-8/06) (04-020) - LIFT CYLINDER GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
774 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
342843A1
|
[1] |
HYD TUBE,618 mm Length
|
BN
assembly, lift cylinder
|
| 2. |
87266703
|
[1] |
PISTON ROD
|
BN
Lift Cylinder
|
| 3. |
3222844R1
|
[1] |
BALL JOINT
|
IH
AS 16 Ball
|
| 4. |
87266698
|
[1] |
RING NUT
|
BN
Spring Seat
|
| 5. |
342841A1
|
[1] |
PISTON ROD
|
BN
Lift Cylinder
|
| 6. |
100037
|
[2] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 7. |
87266697
|
[1] |
BUSHING
|
BN
Piston Stop
|
| 8. |
100-1175
|
[1] |
SNAP RING,#75, Ext
|
CAS
Superseded by part number: 72186587, 129164
|
| 11. |
342447A1
|
[1] |
SPRING
|
BN
compression, 44.5 x 4.7 x 914
|
| 12. |
86625252
|
[1] |
WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk
|
FAR
|
