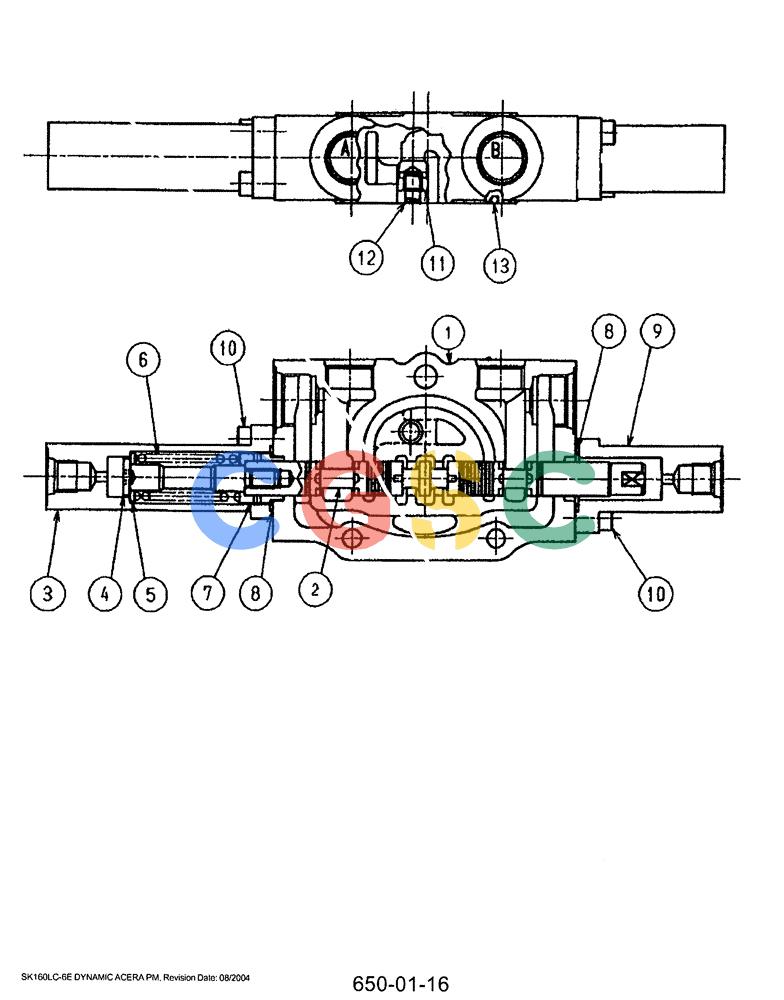

神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (07-005) - VALVE SECTION ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
386 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT30V00027F1 | [1] | SPOOL | KOBVALVE |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 3. | 2436R919S12 | [1] | CAP | KOB |
| 4. | 2436R919S9 | [1] | END | KOB |
| 5. | 2436R919S10 | [1] | SEAT | KOB |
| 6. | 2436R919S11 | [1] | SPRING | KOB |
| 7. | 2436R919S8 | [1] | SEAT | KOB |
| 8. | 2436R668S3 | [2] | O-RING | KOB |
| 9. | 2436R919S7 | [1] | CAP | KOB |
| 10. | ZS23C06018 | [4] | SCREW,Hex Socket Head, M6 x 18mm | KOBM06x1.0x18mm |
| 11. | 2436R331S10 | [1] | POPPET | KOB |
| 12. | 2436U389S12 | [1] | SPRING | KOB |
| 13. | 2436R328S2 | [1] | O-RING | KOB Superseded by part number: 45Z91D84 |
